Description

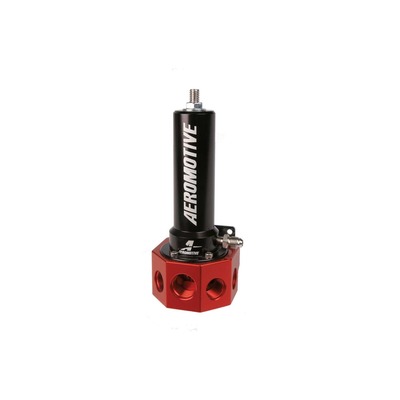

Fuel Pressure Regulator – Belt / Hex Drive EFI – 40 to 100 psi – In-Line – 8 AN / 10 AN Inlets – 10 AN Return – 1/8 in NPT Port – Black / Red Anodized – E85 / Gas / Diesel – Each
Attributes:
Product Line: Belt/Hex Drive
Boost Referenced: Yes
Bypass: Yes
Adjustable: Yes
Adjustment Range Low: 40 PSI
Adjustment Range High: 100 PSI
Mounting Style: In-Line
Inlet Size: 10 AN
Inlet Style: Female
Inlet O-Ring: Yes
Outlet Quantity: 4
Outlet Size: 8 AN
Outlet Style: Female
Outlet O-Ring: Yes
Return Port Size: 10 AN
Return Port Style: Female
Return Port O-Ring: Yes
Gauge Port: No
Bracket Included: Yes
Gasoline Compatible: Yes
Methanol Compatible: Yes
E85 Compatible: Yes
Top Color: Black
Top Finish: Anodized
Bottom Color: Red
Bottom Finish: Anodized
Material: Aluminum
Quantity: Each
AFS13113 Diaphragm Kit. 3 10an Inlet Ports. 2 8an Inlet Ports. 10an Return Port
