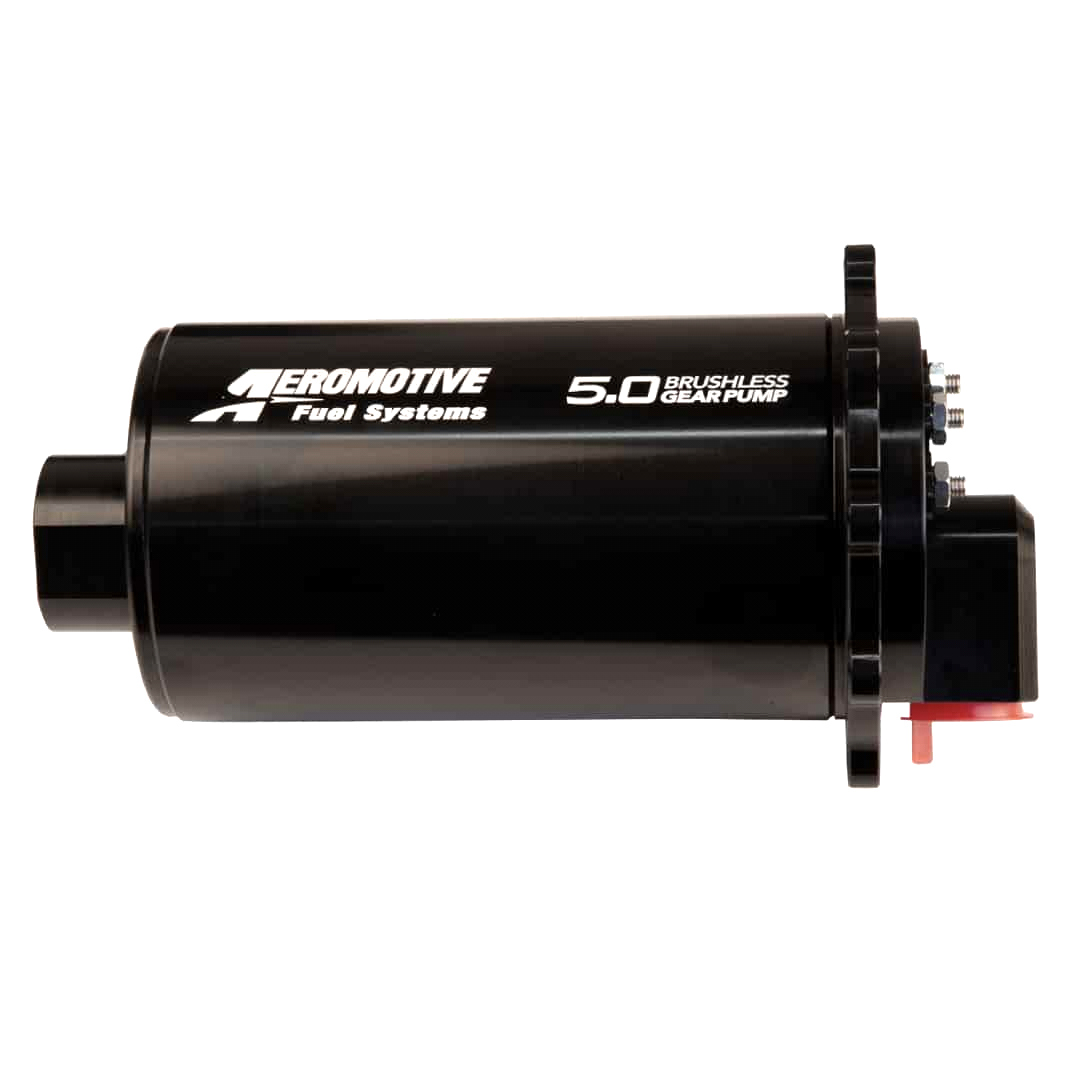

AEROMOTIVE Fuel Pump Module TVS 90-Deg Outlet Brushless- 18068

$2,287.34

SKU MTS-AFS18068
Add to wishlist Add to compare

Description

Fuel Pump – Electric – 5.0 Brushless – In-Line – 1700 lb/hr at 40 psi – 12 AN Female O-Ring Inlet – 10 AN Female O-Ring Outlet – Aluminum – Black Anodized – Each

Attributes:

  • Product Line: Brushless Spur 5.0
  • Electric/Mechanical: Electric
  • Brushless: Yes
  • In-Tank/Inline: Inline
  • Inlet Size: 12 AN
  • Inlet Style: Female
  • Inlet O-Ring: Yes
  • Outlet Size: 10 AN
  • Outlet Style: Female
  • Outlet O-Ring: Yes
  • Outlet Degree: 90 Degree
  • EFI Rated Flow lb/hr: 1700 lb/hr
  • Carb Rated Flow lb/hr: 1850 lb/hr
  • EFI Rated PSI: 40 PSI
  • Carb Rated PSI: 9 PSI
  • Maximum Pressure: 150 PSI
  • Gasoline Compatible: Yes
  • Diesel Compatible: No
  • Methanol Compatible: Yes
  • E85 Compatible: Yes
  • Material: Aluminum
  • Color: Black
  • Finish: Anodized
  • Quantity: Each

    Spur 5.0 Pump

  • Specification

    Weight 7.3 lbs
    Dimensions 10.7 × 8.4 × 5.5 in
    Brand

    AEROMOTIVE

    Part Number

    18068
