Description

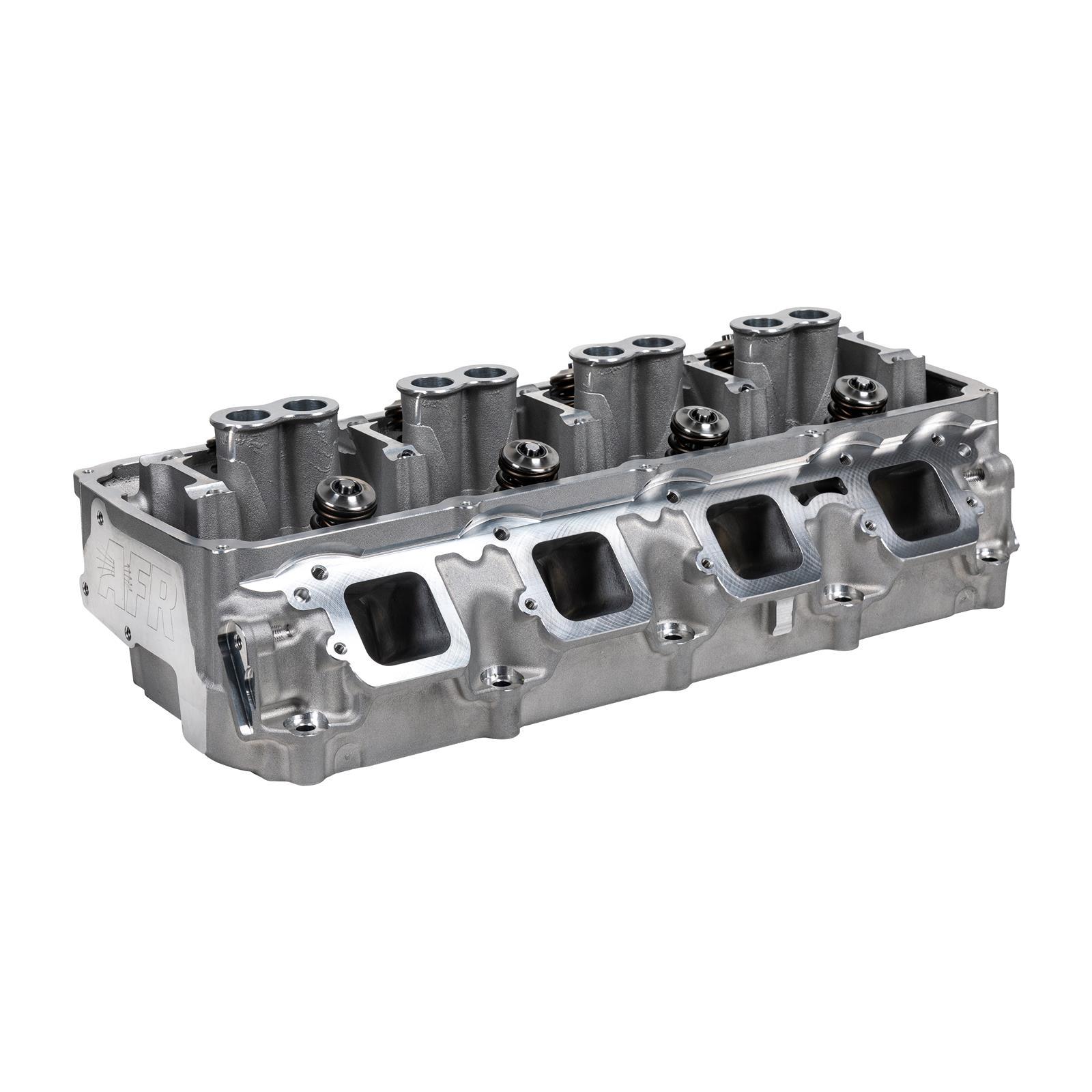

Cylinder Head – Black Hawk – Assembled – Driver Side – 2.125 / 1.650 in Valves – 212 cc Intake – 69 cc Chamber – 1.290 in Springs – Straight Plug – Aluminum – Mopar Gen III Hemi – Each
Attributes:
Product Line: Black Hawk
Assembled/Bare: Assembled
Driver / Passenger Side: Driver Side
Chamber Volume: 69 cc
Intake Runner Volume: 212 cc
Exhaust Runner Volume: 75 cc
Intake Port Shape: Square
Intake Port Location: Stock
Exhaust Port Shape: D
Exhaust Port Location: Stock
Intake Valve Size: 2.125 in
Intake Valve Included: Yes
Intake Valve Material: Stainless
Exhaust Valve Size: 1.650 in
Exhaust Valve Included: Yes
Exhaust Valve Material: Stainless
Valve Spring Included: Yes
Intended Camshaft Style: Hydraulic Roller
Maximum Lift: 0.600 in
Maximum RPM: 6500
Valve Spring Diameter: 1.290 in
Valve Spring Number: Dual
Valve Spring Damper: No
Valve Spring Retainers Included: Yes
Valve Spring Retainer Material: Titanium
Valve Locks Included: Yes
Valve Lock Material: Chromoly
Valve Lock Angle: 10 Degree
Valve Seal Included: Yes
Valve Seal Style: Positive Stop
Valve Seal Material: Viton
Valve Guide Included: Yes
Valve Guide Material: Bronze
Perimeter Mount Valve Cover: Yes
Valve Seat Included: Yes
Intake Valve Seat Material: Ductile Iron
Exhaust Valve Seat Material: Ductile Iron
Valve Seat Finish: Machined
Combustion Chamber Finish: CNC Machined
Intake Runner Finish: CNC Machined
Exhaust Runner Finish: CNC Machined
Intake Valve Angle: 18 Degree
Exhaust Valve Angle: 16.5 Degree
Material: Aluminum
Color: Natural
Finish: Natural
Quantity: Each
