Description

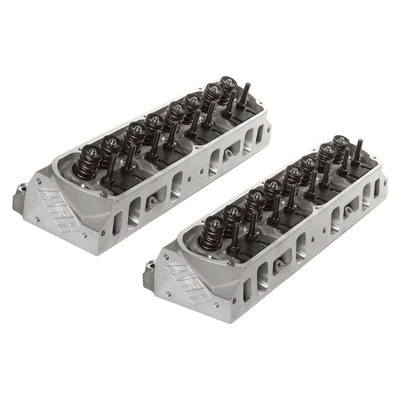

Cylinder Head – Renegade Race – Assembled – 2.080 / 1.600 in Valves – 205 cc Intake – 58 cc Chamber – 1.550 in Springs – Angle Plug – Aluminum – Small Block Ford – Pair
Attributes:
Product Line: Renegade Race
Assembled/Bare: Assembled
Chamber Volume: 58 cc
Plug Angle: Angle
Intake Runner Volume: 205 cc
Exhaust Runner Volume: 70 cc
Intake Port Shape: Rectangle
Intake Port Location: Stock
Intake Port Height: 2.115 in
Intake Port Width: 1.300 in
Exhaust Port Shape: Square
Exhaust Port Location: Stock
Exhaust Port Height: 1.400 in
Exhaust Port Width: 1.400 in
Intake Valve Size: 2.080 in
Intake Valve Included: Yes
Intake Valve Material: Stainless
Intake Valve Length: 5.000 in
Exhaust Valve Size: 1.600 in
Exhaust Valve Included: Yes
Exhaust Valve Material: Stainless
Exhaust Valve Length: 5.030 in
Valve Spring Included: Yes
Intended Camshaft Style: Solid Roller
Maximum Lift: 0.710 in
Maximum RPM: 7400
Valve Spring Diameter: 1.550 in
Valve Spring Number: Dual
Valve Spring Damper: Yes
Valve Spring Retainers Included: Yes
Valve Spring Retainer Material: Chromoly
Valve Locks Included: Yes
Valve Lock Material: Chromoly
Valve Lock Angle: 10 Degree
Valve Seal Included: Yes
Valve Seal Style: Positive Stop
Valve Seal Material: Viton
Rocker Studs Included: Yes
Rocker Stud Size: 7/16-20 in
Pushrod Guide Plate Included: Yes
Guide Plate Pushrod Size: 5/16 in
Valve Guide Included: Yes
Valve Guide Material: Bronze
Perimeter Mount Valve Cover: Yes
Valve Seat Included: Yes
Intake Valve Seat Material: Ductile Iron
Exhaust Valve Seat Material: Ductile Iron
Valve Seat Finish: Machined
Combustion Chamber Finish: CNC Machined
Intake Runner Finish: CNC Machined
Exhaust Runner Finish: CNC Machined
Intake Valve Angle: 20 Degree
Exhaust Valve Angle: 20 Degree
Material: Aluminum
Color: Natural
Finish: Natural
Quantity: Pair
