Act Clutch Set, Xtreme, 8.8 Inch Clutch Diameter, 1 Inch X 24 Spline Input Shaft, Diaphragm, Steel Pressure Plate – SB7-XTSS
$938.30
Act Clutch Set, Xtreme, 8.8 Inch Clutch Diameter – SB7-XTSS
Description

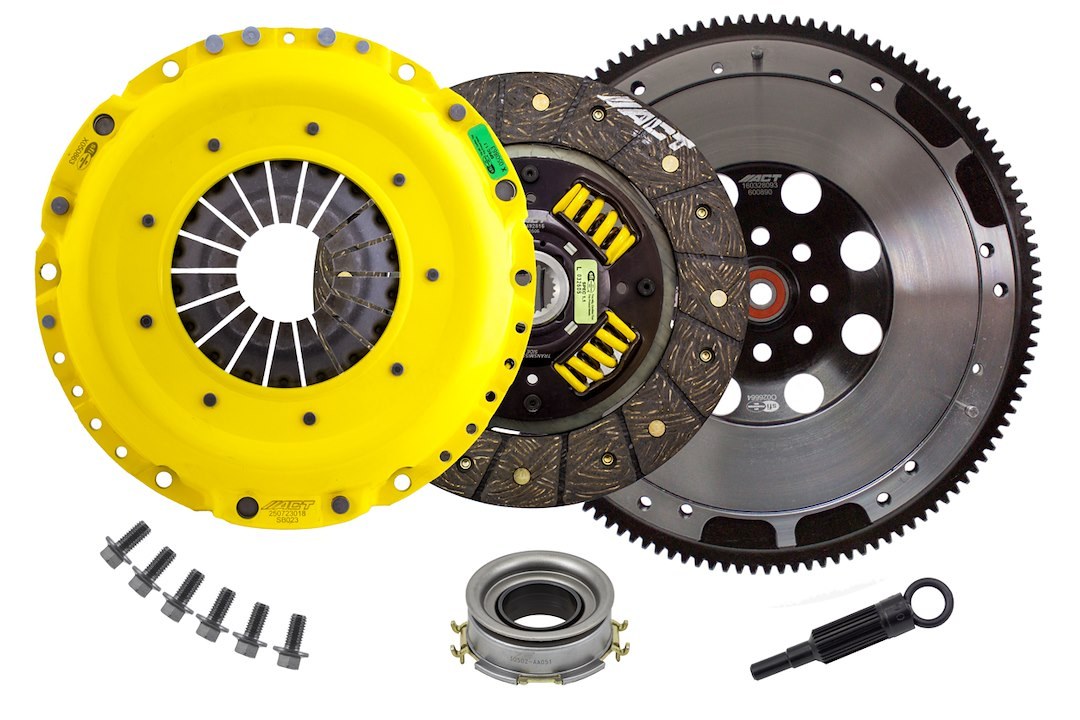

Clutch Set; Xtreme; 8.8 Inch Clutch Diameter; 1 Inch x 24 Spline Input Shaft; Diaphragm; Steel Pressure Plate; Single Disc/ Organic Friction Material; Full Face Design/ Sprung Hub; 11.8 Pound Steel Flywheel; With Flywheel/ Throwout Bearing/ Pilot Bearing/ Alignment Tool
Attributes:
- Input Shaft Size: 1 Inch X 24 Spline
- Pressure Plate Design: Diaphragm
- Disc Diameter: 8.8 Inch
- Number Of Friction Discs: 1 Disc
- Flywheel Weight: 11.8 Pound
- Flywheel Tooth Count: 124
- Disc Friction Material: Organic
- Disc Friction Face Design: Full Face
- Disc Hub Design: Sprung
- Torque Holding Capacity: 347 Feet/Pound
- Pressure Plate Material: Steel
- Flywheel Material: Chromoly Steel
- Includes Throwout Bearing: Yes
- Includes Pilot Bearing: Yes
- Includes Alignment Tool: Yes
Features & Benefits:
- Pressure Plates Use Exclusive Diaphragm Design To Increase Clamp Load, Reduce Deflection And Maximize Clutch Life
- Pressure Plates Have Precision Cover Stampings To Provide Rigidity And Consistency
- Features Premium Organic Materials With High Copper Content For Better Heat Transfer And Steel-Backed Lining For Greater Burst Strength And Durability
- Quiet Operation With Increased Strength And Reliability
- Limited 1 Year Warranty
About Product:
ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.
Additional information
| Weight | 29.7 lbs |
|---|---|
| Dimensions | 14 × 14 × 5 in |
| Brand | ACT |
| Manufacturer Part Number | SB7-XTSS |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 36 vehicles.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| Loading fitment... | ||||
