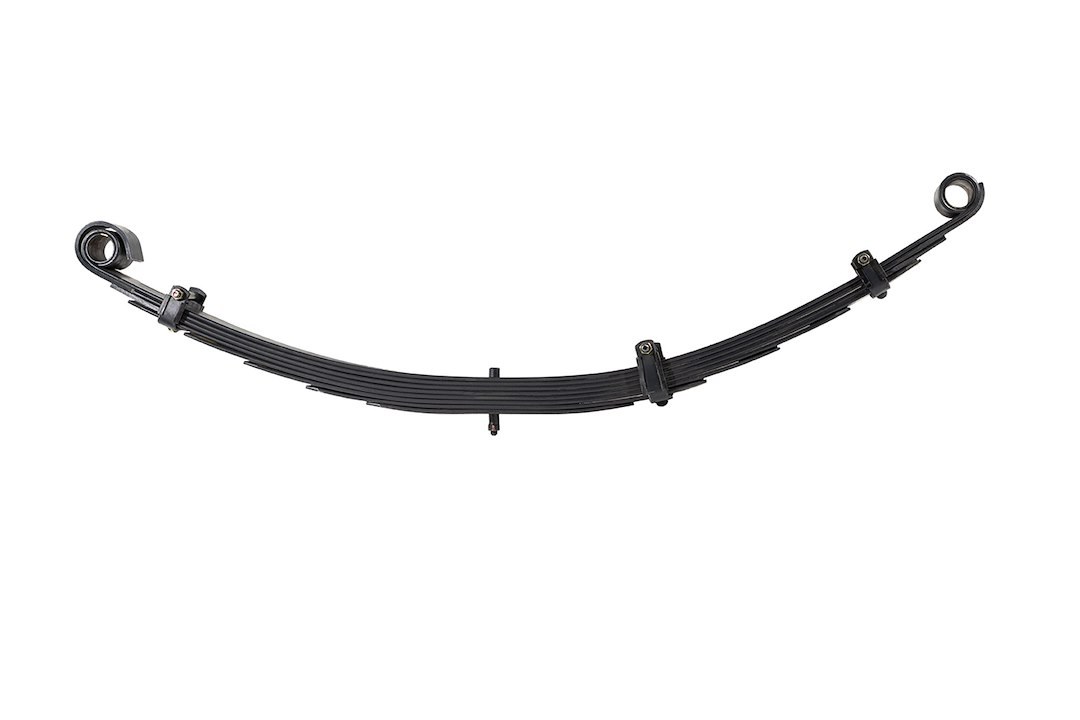

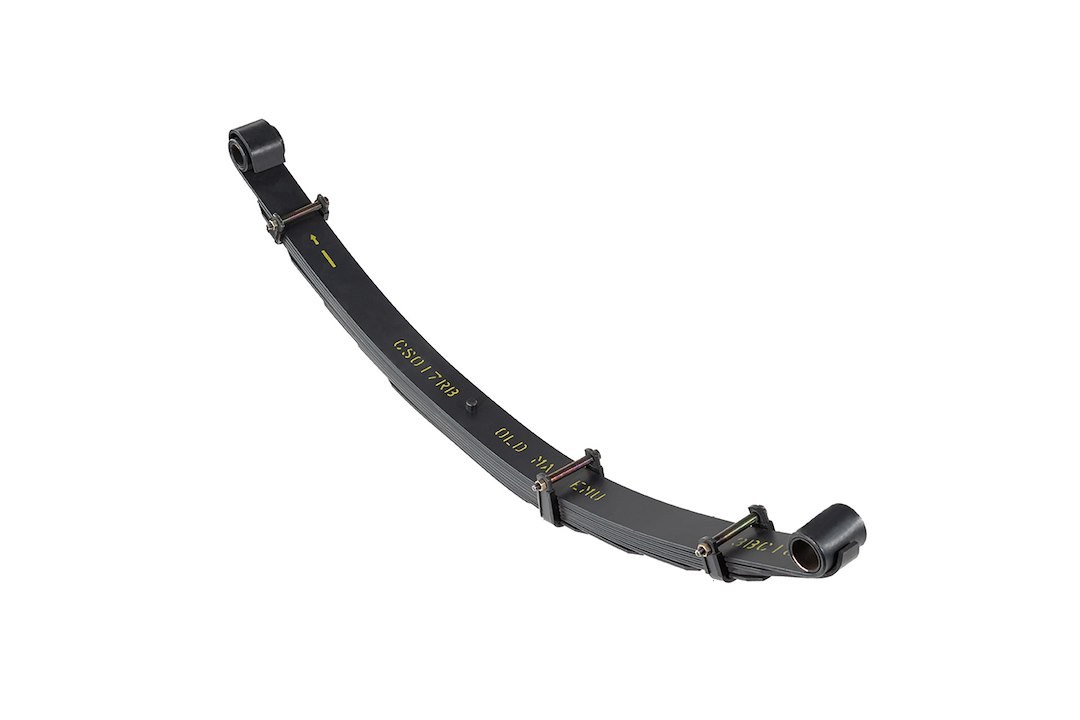

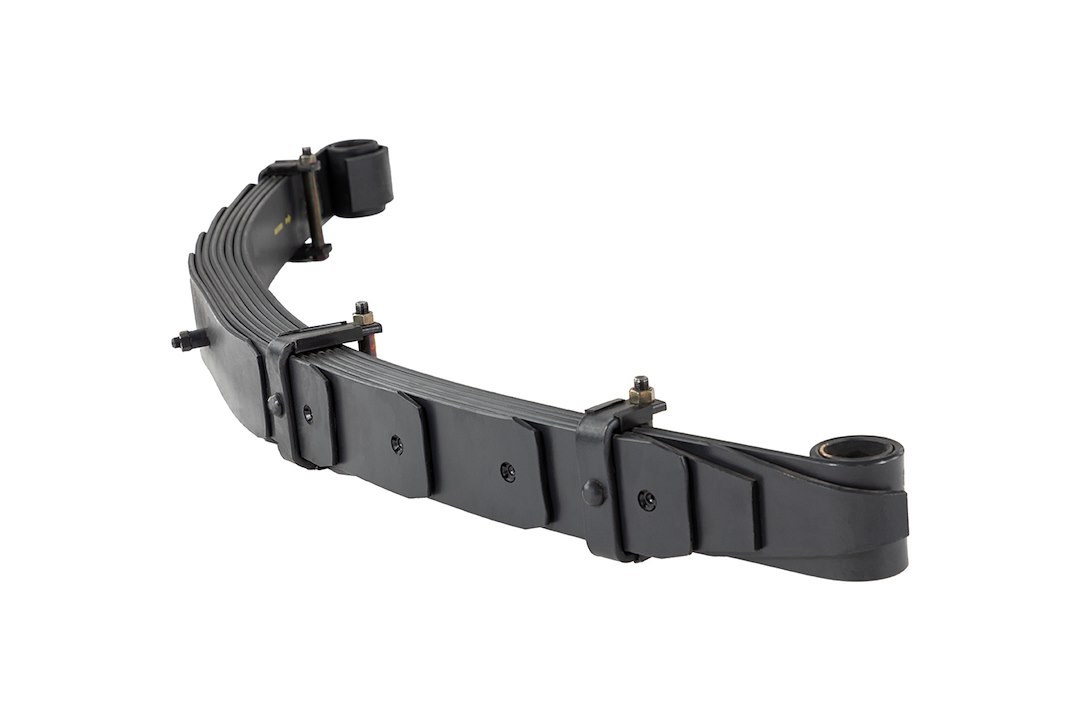

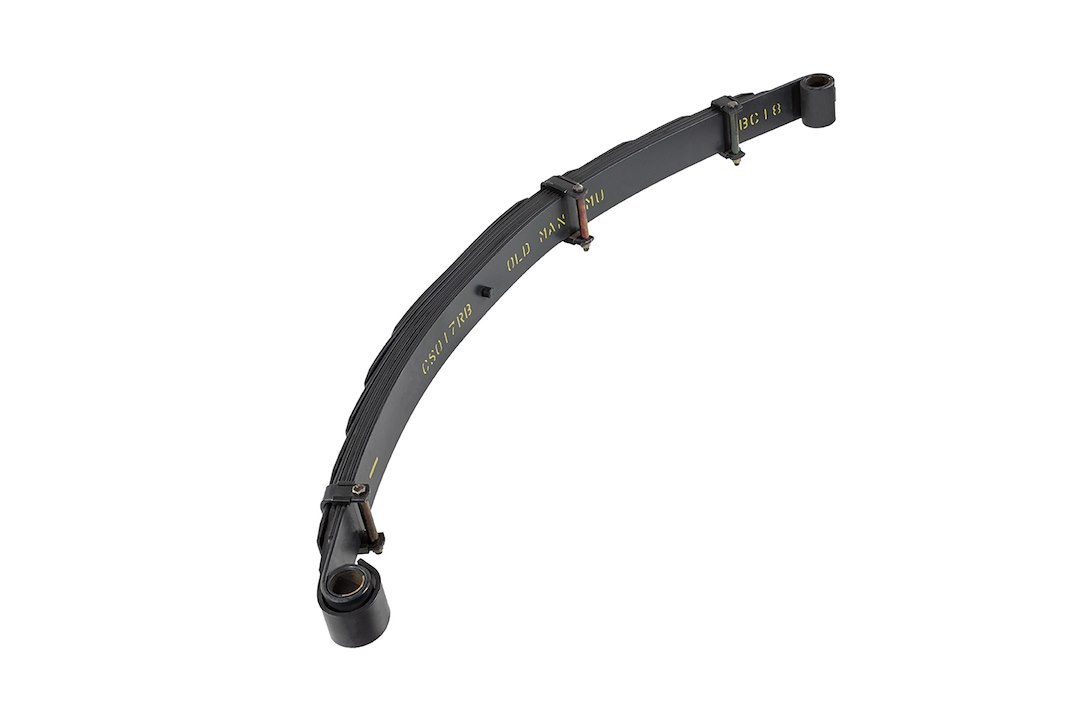

Name: ARB 4x4 Accessories Leaf Spring, 3 Inch Lift, 8 Leaf, Single - CS017RB
Brand: ARB USA
SKU: KYS-ARBCS017RB
Price: 257.45 USD
Availability: InStock

Description

Leaf Spring; 3 Inch Lift; 8 Leaf; Single

Attributes:

Number Of Leafs: 8
Spring Rate: 255 Pounds Per Inch
Quantity: Single
Spring Type: Draw Tapered And Diamond Cut
Includes Bushings: No
Bushing Material: No Bushing
Estimated Install Time (Hours): 2

Features & Benefits:

Draw Tapered And Diamond Cut Leaves: Ensure The Load Is Progressively Distributed Over A Larger Surface Area, Reducing The High Stresses That Develop At Leaf Ends
Fully Scragged And Load Tested: Scragging Ensures The Spring Takes A Permanent ‘set’ Which Reduces The Risk Of Sagging
Graphite Coating: To Further Reduce The Friction Between The Spring Leaves And Friction Pads
Military Wrap: Designed To Provide Added Safety
Anti Friction Pads: Regreasable Nylon Interleaf Liners Reduce Friction At The Leaf Tips Where The Load Is The Greatest
Flat Axle Seat Area Allows A Positive, Safe Axle Mount Reducing Spring Stress And Increasing Spring Life
Shot Peening: The Tension Side Of All Leaves Is Shot Peened To Reduce Spring Stress, This Process Can Double The Life Of A Spring
Limited 3 Year Or Unlimited Kilometer Warranty

About Product:
Part of ARB’s integrated 4×4 suspension systems, Emu Dakar leaf springs are engineered to provide optimum ride performance irrespective of the operating conditions the vehicle’s suspension is required to work under. Numerous spring options are available to suit a multitude of applications, allowing you to set your vehicle up for recreational or commercial purposes. Feature packed, a set of Emu Dakar leaf springs matched to a set of Old Man Emu 4×4 shock absorbers will deliver vastly improved ride, handling and load carrying capability.
