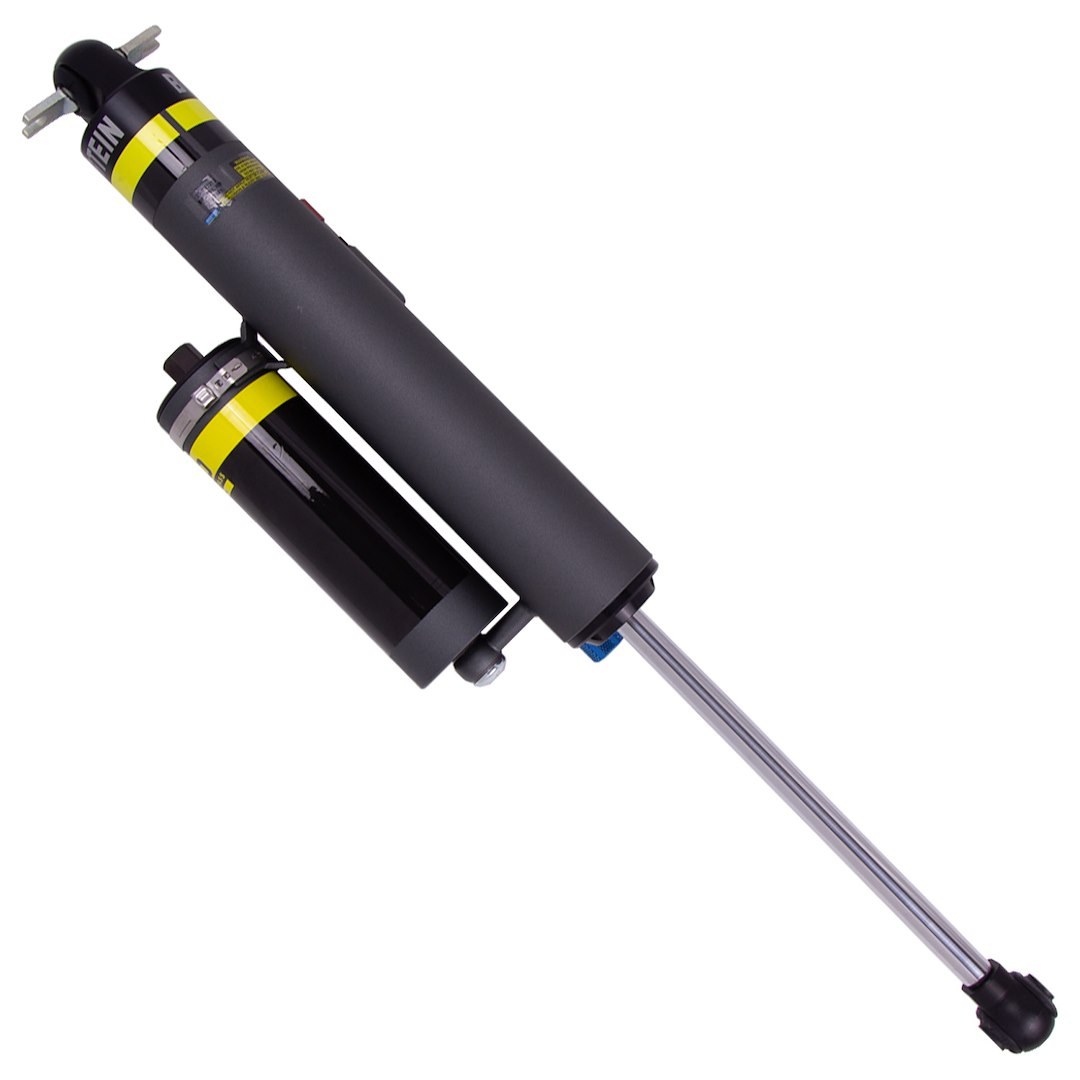

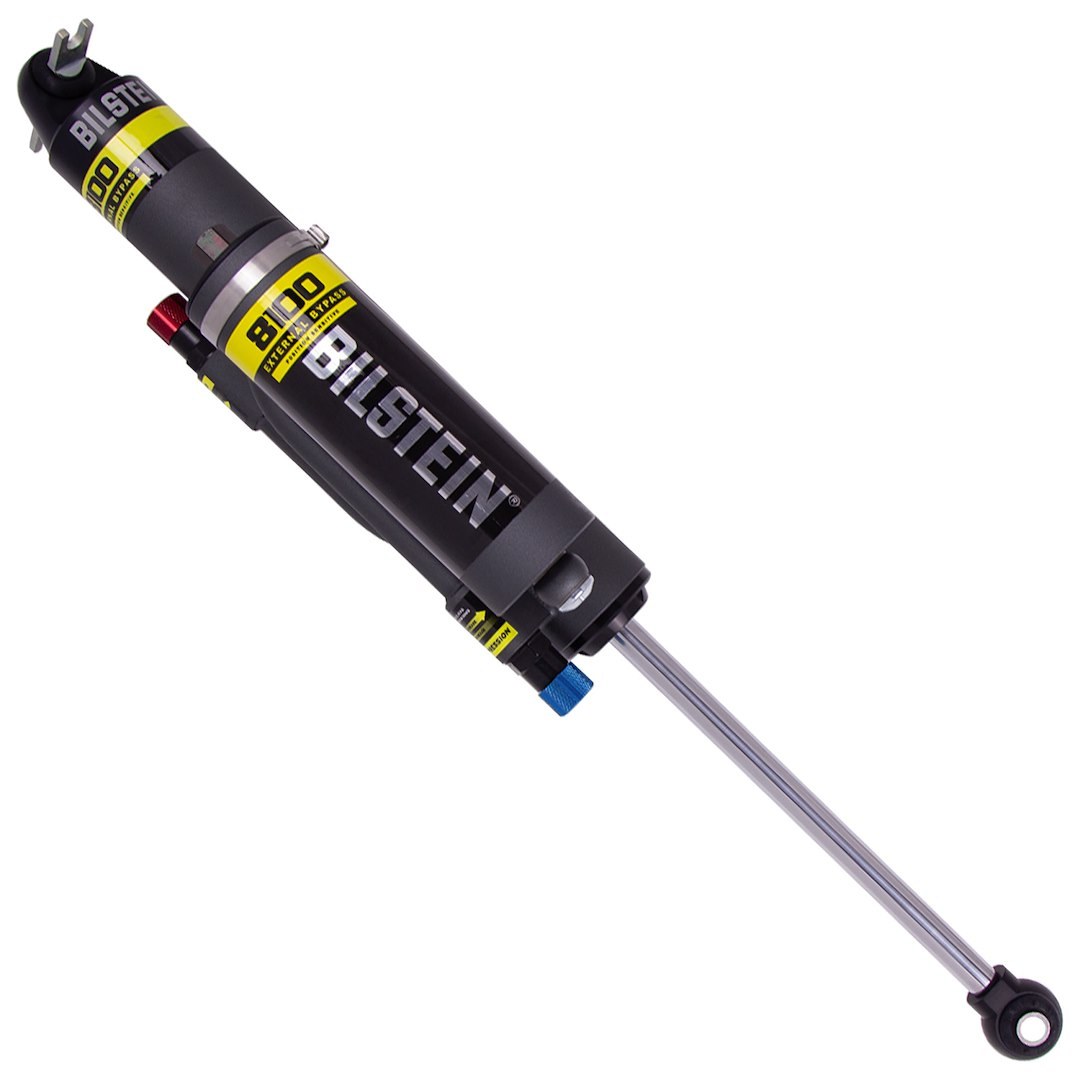

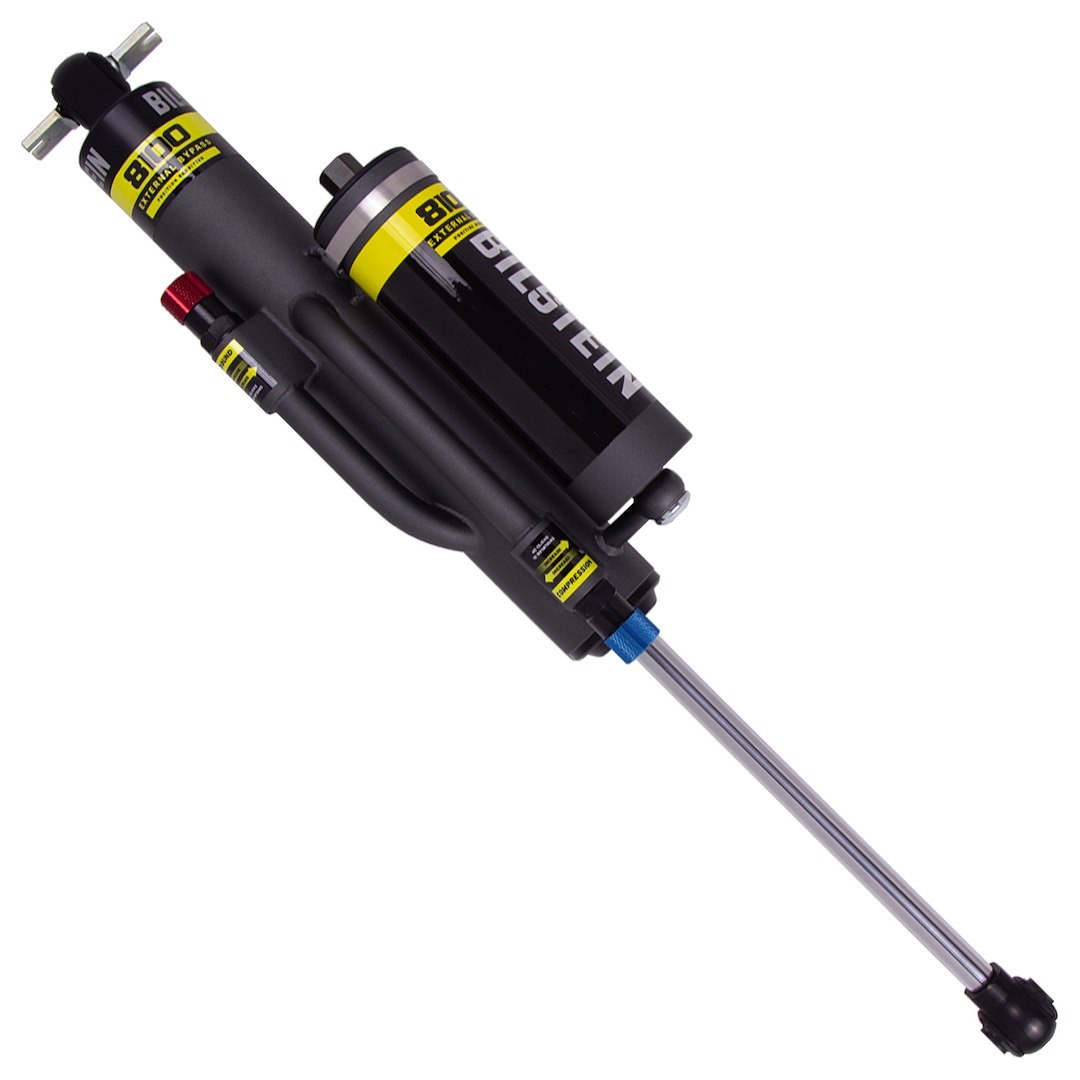

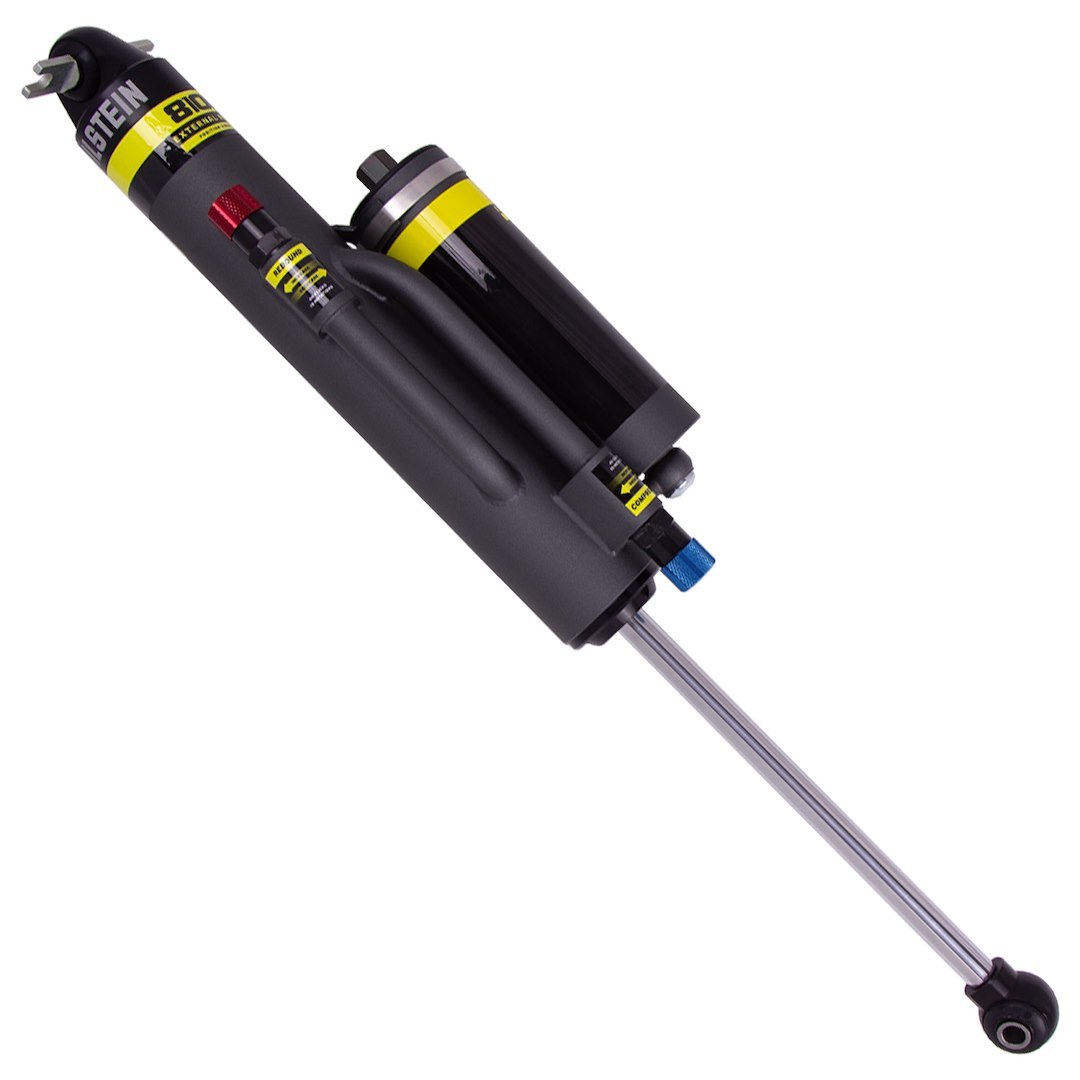

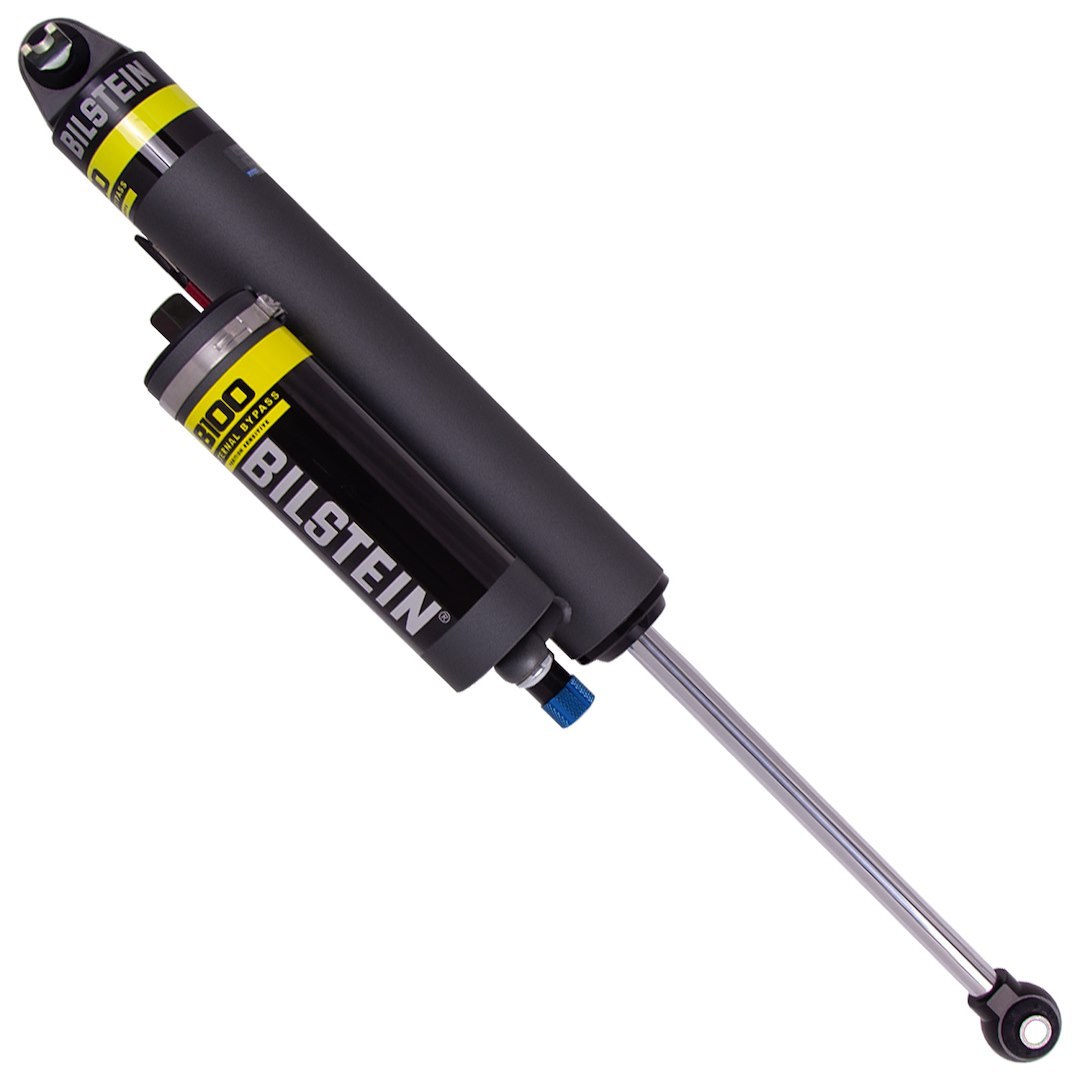

Bilstein Shock Absorber, B8 8100 Bp, Nitrogen Gas Charged, With Reservoir, Limited 2 Year Warranty – 25-291315
$1,339.06
Bilstein Shock Absorber, B8 8100 Bp, Nitrogen Gas Charged – 25-291315
Description
Shock Absorber; B8 8100 BP; Nitrogen Gas Charged; With Reservoir; Limited 2 Year Warranty; Double Adjustable Compression And Rebound With Click Adjuster Knobs; 27.83 Inch Extended Length/ 17.17 Inch Collapsed Length; Crossbar Upper/ 12.1 Millimeter Eye Lower Mount; Without Shocks Boots; EVO Grey; Single
Attributes:
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Internal Design: Twin Tube
- Adjustable Valving: Yes
- Extended Length (IN): 27.83 Inch
- Compressed Length (IN): 17.17 Inch
- Upper Mounting Style: Cross Pin
- Lower Mounting Style: Eyelet
- Body Color: Gray
- Quantity: Single
- Universality: Vehicle Specific
- Rod Diameter (IN): 0.7 Inch
- Valving Type: Independent Compression And Adjustable Rebound Valving
- Ride Height Adjustable: Yes
- Rod Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Features & Benefits:
- The Bump Zone, Located Above The Compression Bypass Tube, Increases Bottoming Control And Eliminates The Need For A Hydraulic Bump Stop
- Dual Tube External Bypass Offers Position Sensitive Damping With Independent Adjustment For Rebound And Compression
- Incremental Flow Adjuster Offers Finite And Incremental Changes In Damping Force For Precise Adjustments
- Bottom Port Reservoir Hose Provides Increased Bottom Out Control During The Compression Cycle
- Billet Rod End With Vulcanized Mounts For An Exact OE Fit And Long-Term Durability
- Vehicle Specific Tuning With The Ability To Make A Wide Range Of Adjustments
- 60 Millimeter Large Bore Hard Anodized Aluminum Piston Offers A Greater Range Of Damping Control And Delivers Exceptional Long-Term Durability
- Direct Fit For Easy Installation
- 18 Millimeter Piston Rod Provides Brute Tensile Strength And Reduces Internal Gas Force Ramp-Up Providing A Smoother Ride
- Limited Lifetime Warranty
About Product:
Bypass shock absorbers offer the most compliant ride in all conditions and provide maximum bottom out control when the road gets rough. Utilizing an adjustable external bypass shock is the easiest and most effective way to tune your suspension for ultimate performance.
Additional information
| Weight | 15 lbs |
|---|---|
| Dimensions | 32 × 14 × 6 in |
| Brand | BILSTEIN |
| Manufacturer Part Number | 25-291315 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 85 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
