Blue Sea Systems Busbar, 8 Stud Terminal/ 16 Screw Terminal – 1990-BSS

Description
Additional information

Description

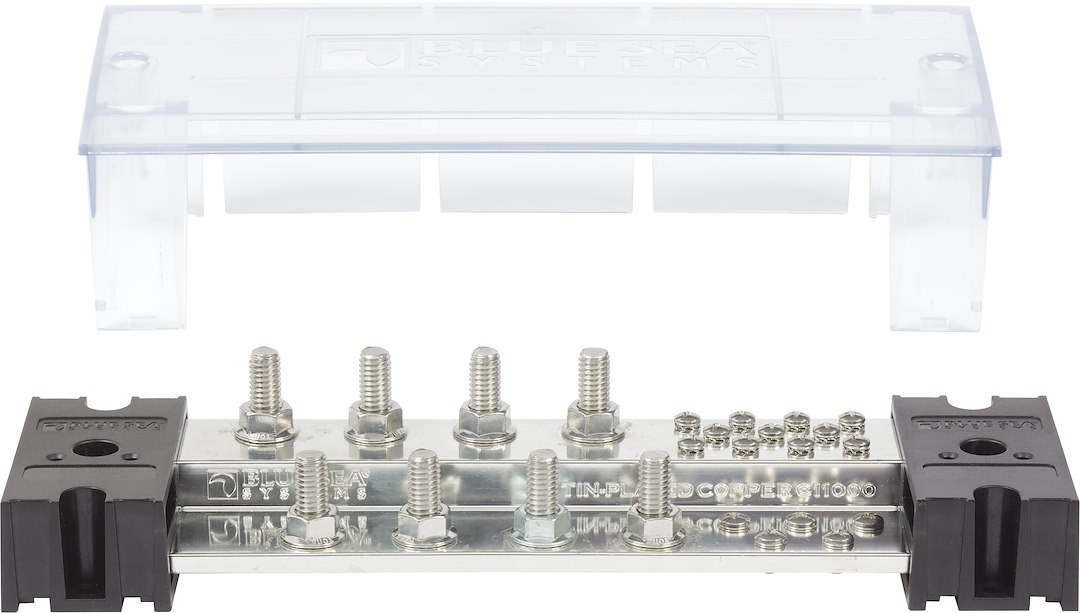

Busbar; 8 Stud Terminal/ 16 Screw Terminal; 150 Volts; 1000 Amps; 3/8 Inch-8 Studs; With Insulation Cover; Tin-Plated Copper Bus; Snap On Insulating Cover

Attributes:

Type: Flat Strip
Number Of Terminals: 8
Voltage Rating: 150 Volt
Ampere: 1000 Amp
Length (IN): 11.82 Inch
Width (IN): 4.59 Inch
Material: Copper Bus
With Insulated Cover: Yes

Features & Benefits:

1,000 Ampere Busbar For Large Complex Wiring Systems
Tin Plated Pure Electrical Copper For Maximum Conductivity

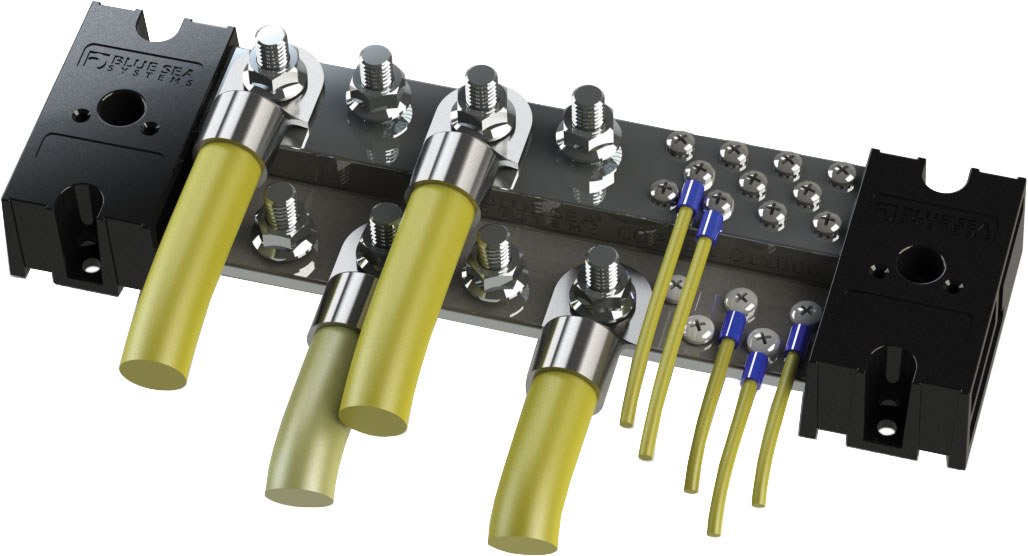

Stepped Bus Design Offers Two Elevations For Conductors Which Doubles The Density Of The Wire Loom Compared To Traditional Bus Bars

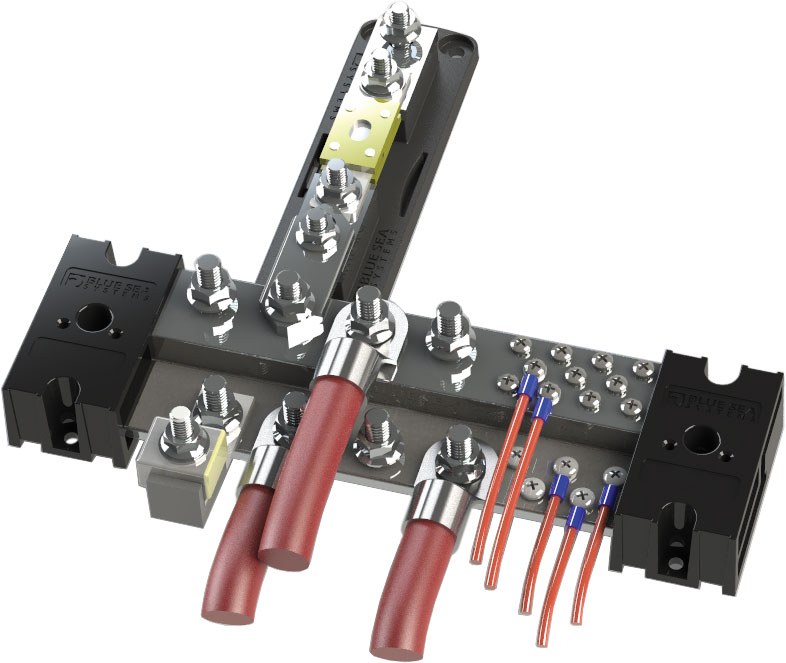

Busbar And Fuse Block Elevations Match Common Fuse Blocks Allowing For Multiple Fuse Block Attachment, Eliminating The Need For Connecting Cables
One-Piece Serrated Flange Nuts Ensure Correct And Secure Connections
Stainless Steel 8 To 32 Screws With Captive Lock Washers For Securing Smaller Gauge Wires
Bi-Directional Busbar End Caps Allow The Ganging Of Additional Busbars
Snap On Insulating Cover Meets ABYC And USCG Requirements And Features Label Recess
No Supplier Warranty

About Product:

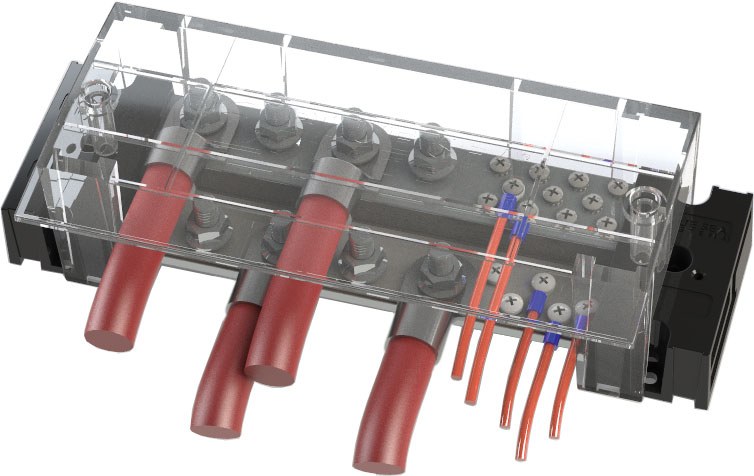

Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Ampere busbar with various size studs and screws to connect conductors and fuse blocks.
