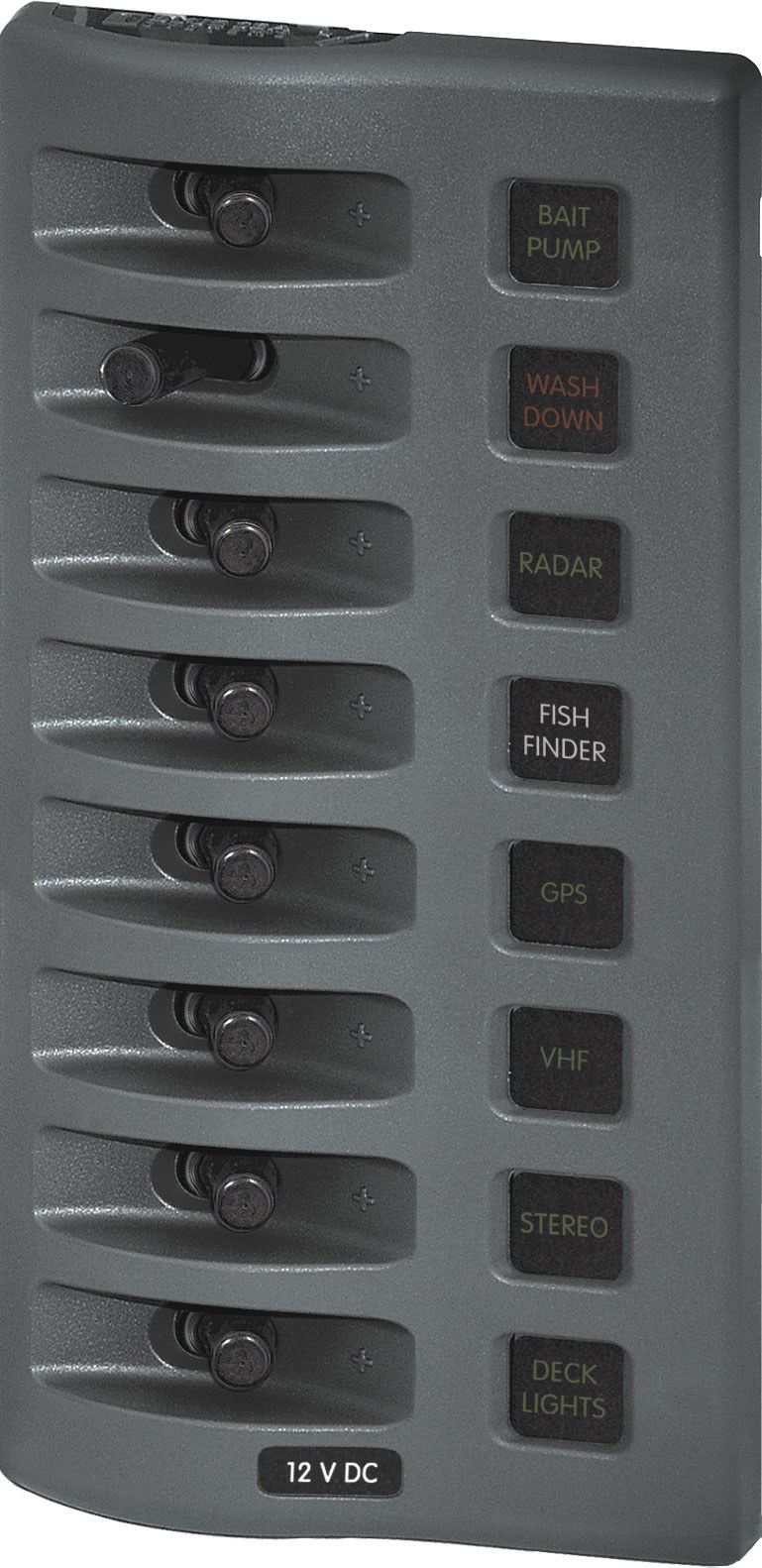

Blue Sea Systems Power Distribution Box, Weatherdeck ®, Ato/Atc Fuses Panel, 12 Volts DC, 15 Amps, 8 Positions, Black – 4308-BSS
$202.44
Blue Sea Systems Power Distribution Box, Weatherdeck ® – 4308-BSS
Description
Power Distribution Box; WeatherDeck ®; ATO/ATC Fuses Panel; 12 Volts DC; 15 Amps; 8 Positions; Black; Reinforced Polycarbonate; 3.88 Inch Width x 7.7 Inch Height x 2-1/2 Inch Depth; With 8 ATO/ ATC Fuse – 15 Amps/ 8 Toggle Switch SPST – ON-OFF/ 8 Toggle Switch Boot – Black/ Waterproof DC Label Kit – 30 Black Square Labels V1
Attributes:
- Recommended Use: ATO/ATC Fuses Panel
- Voltage Rating: 12 Volt
- Power Rating: 15 Ampere
- Number Of Connections: 8
- GFCI/ Overload Protection: No
- Length (IN): 2-1/2 Inch
- Width (IN): 3.88 Inch
- Height (IN): 7.7 Inch
- Color: Black
- Material: Polycarbonate
- With Flip Cover: No
Features & Benefits:
- Panel Front Rated IP67 When Properly Mounted With Watertight Mounting Gasket
- IP67 – Protected Against Immersion Up To 1 Meter For 30 Minutes

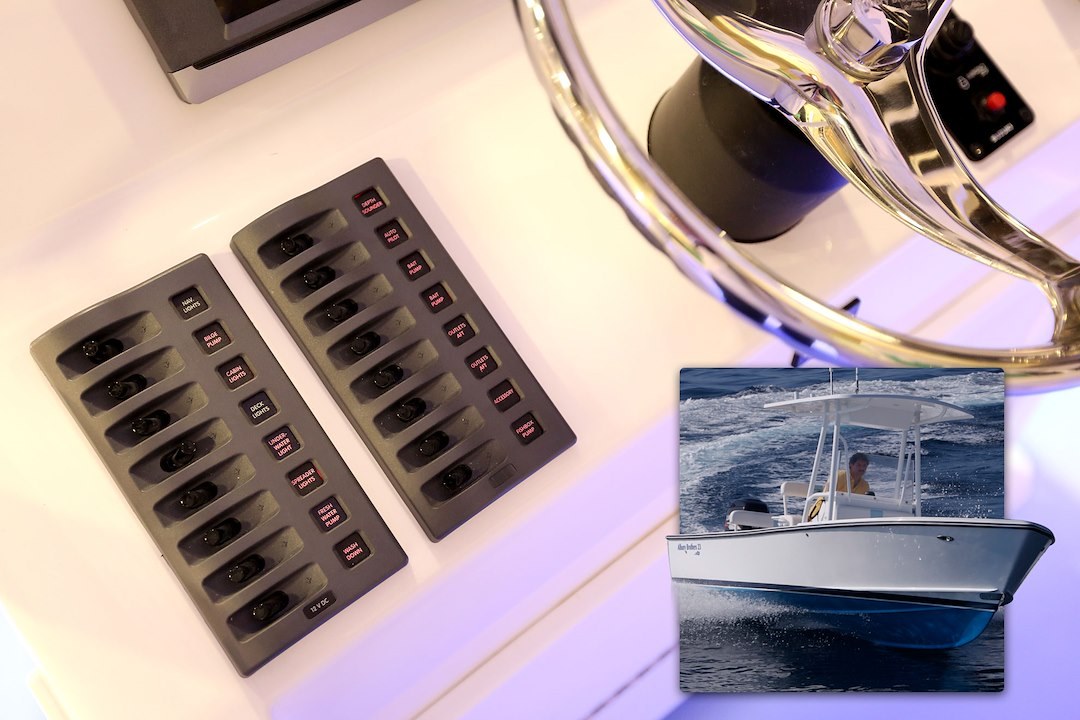

- Designed For Flybridge And Open Cockpit Applications
- Independent Label Backlighting Circuit For Remote Switching And Dimming
- Each Panel Can Be Mounted In Four Different Orientations
- Integrated ATO And ATC Fuse Based Circuit Protection
- No Supplier Warranty
About Product:
Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel. Independent label backlighting circuit for remote switching and dimming. Designed for flybridge and open cockpit applications.
Additional information
| Weight | 1.55 lbs |
|---|---|
| Dimensions | 10.2 × 5.5 × 4 in |
| Brand | BLUE SEA |
| Manufacturer Part Number | 4308-BSS |
