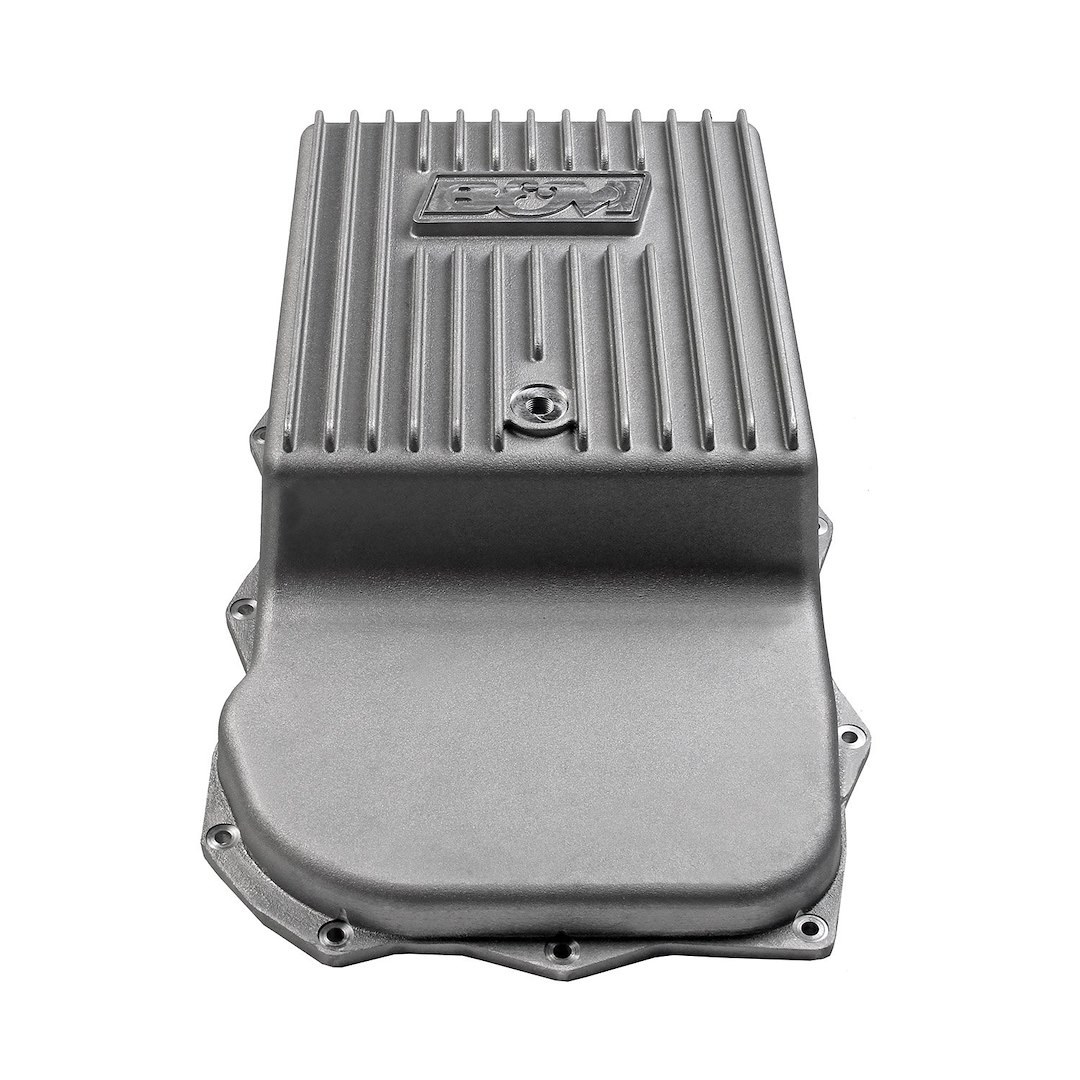

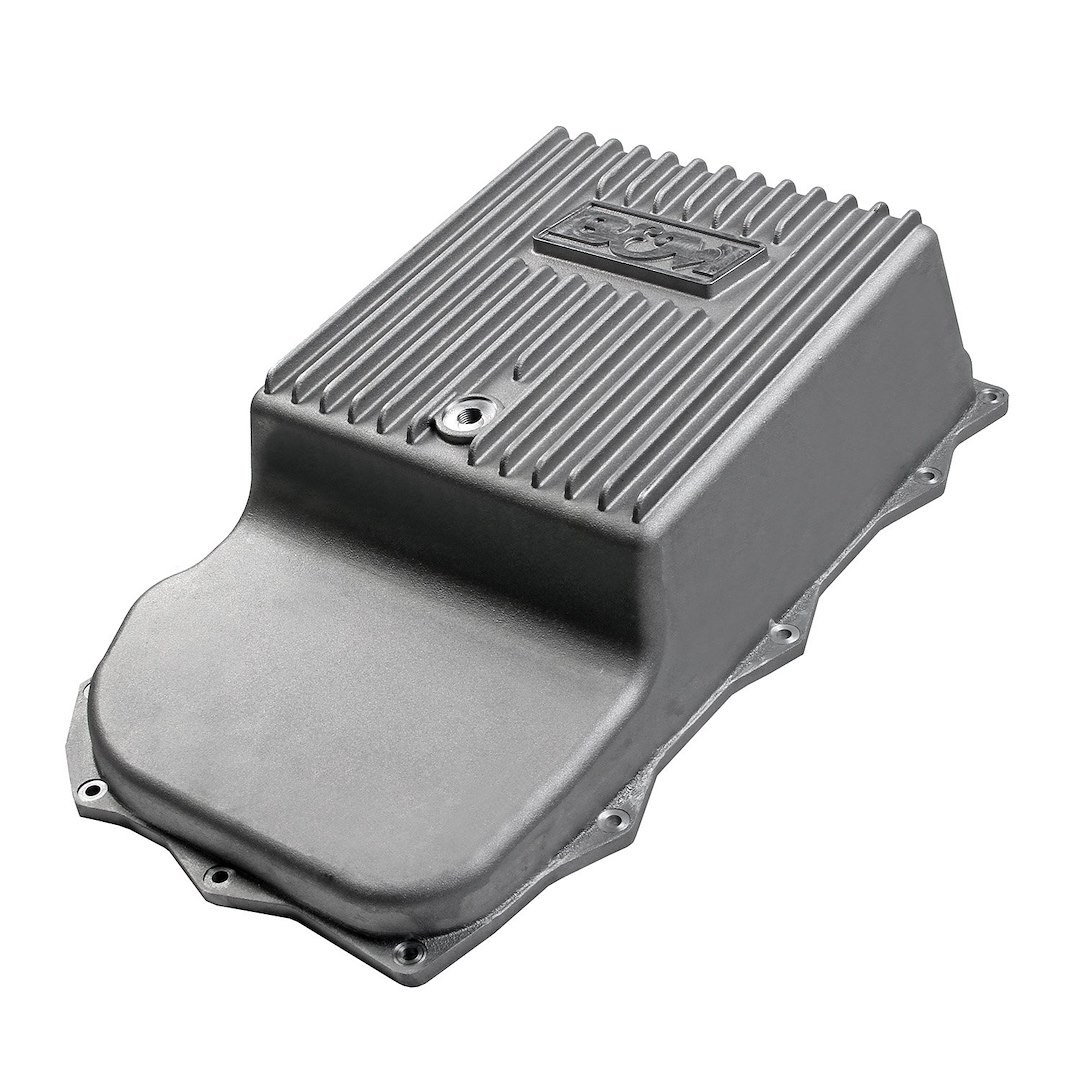

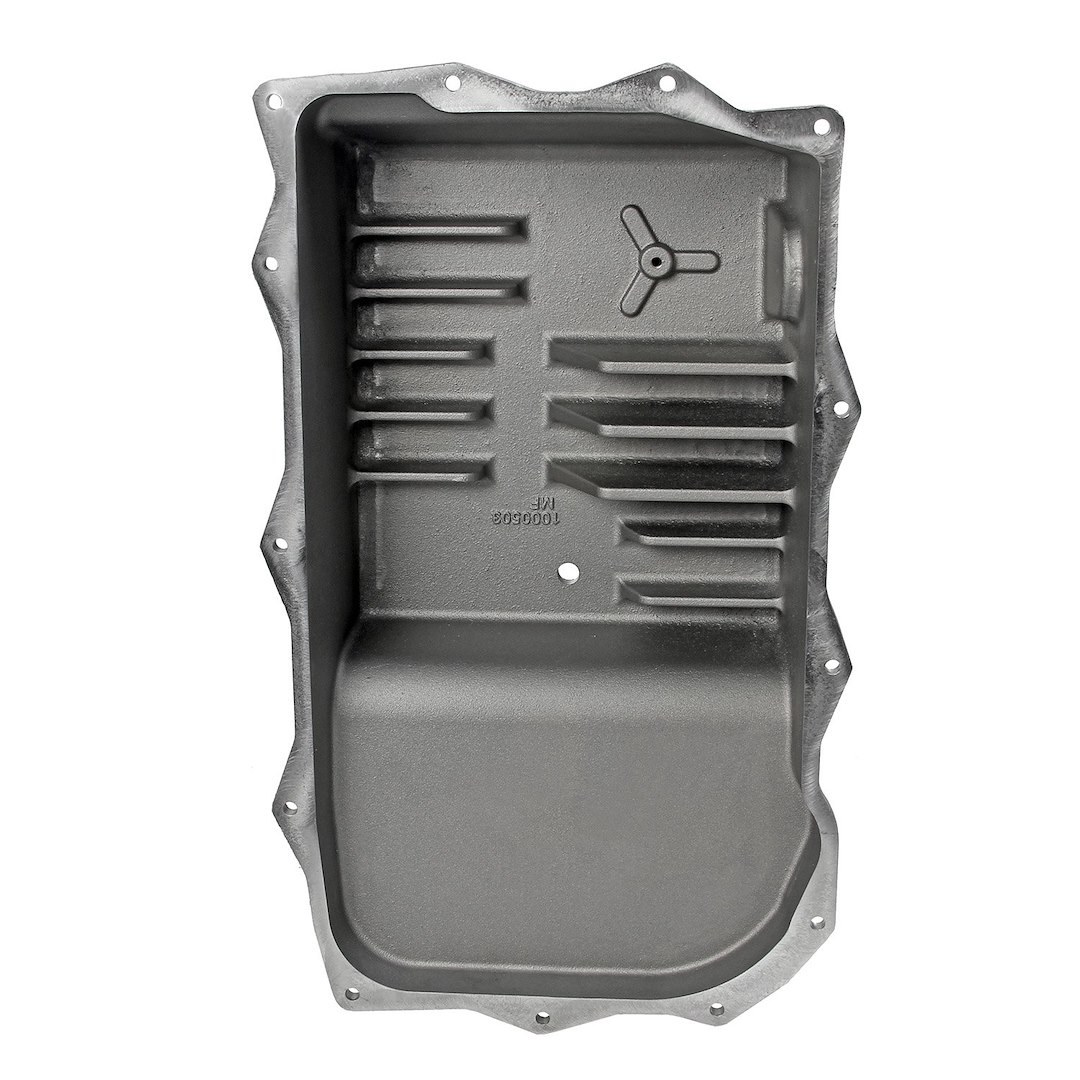

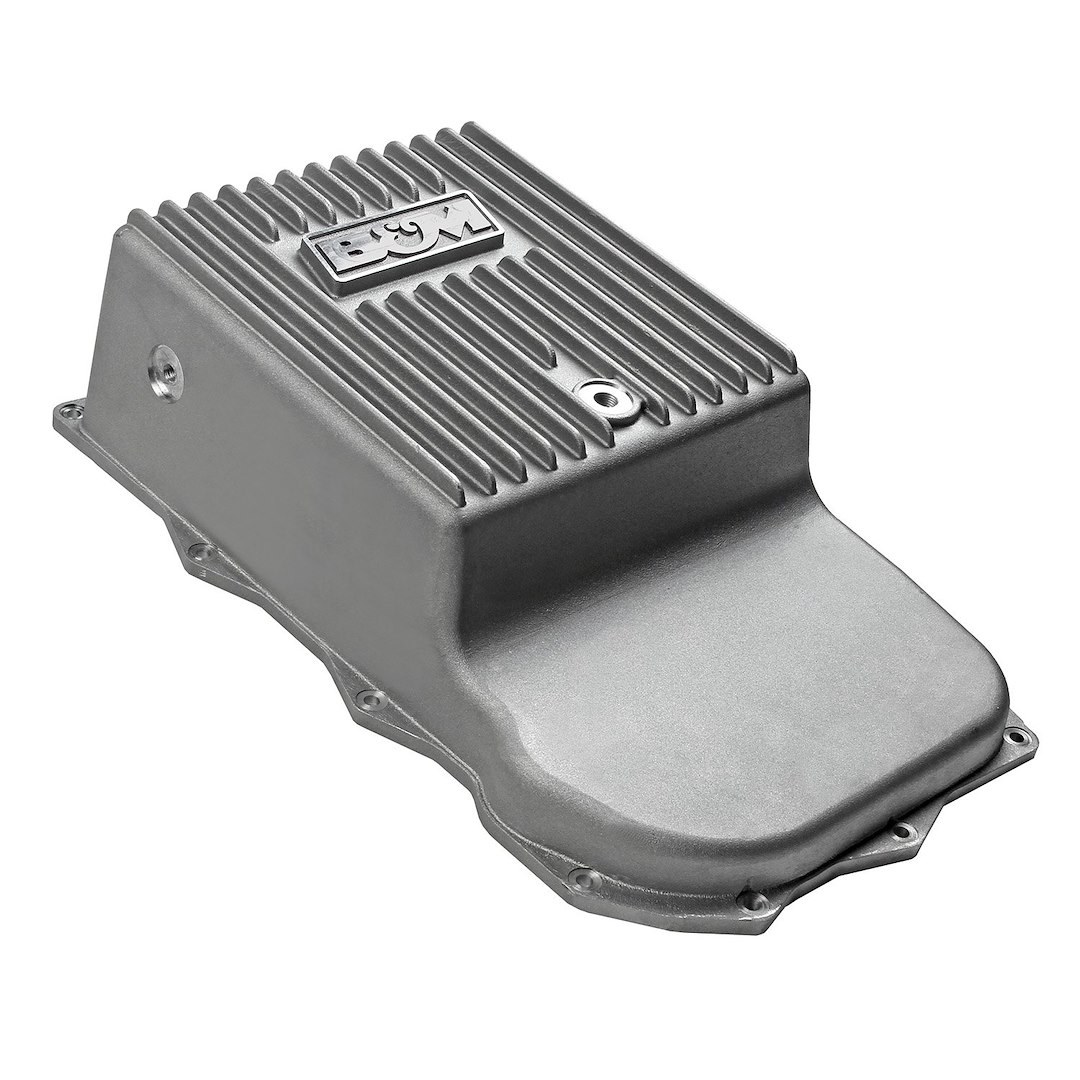

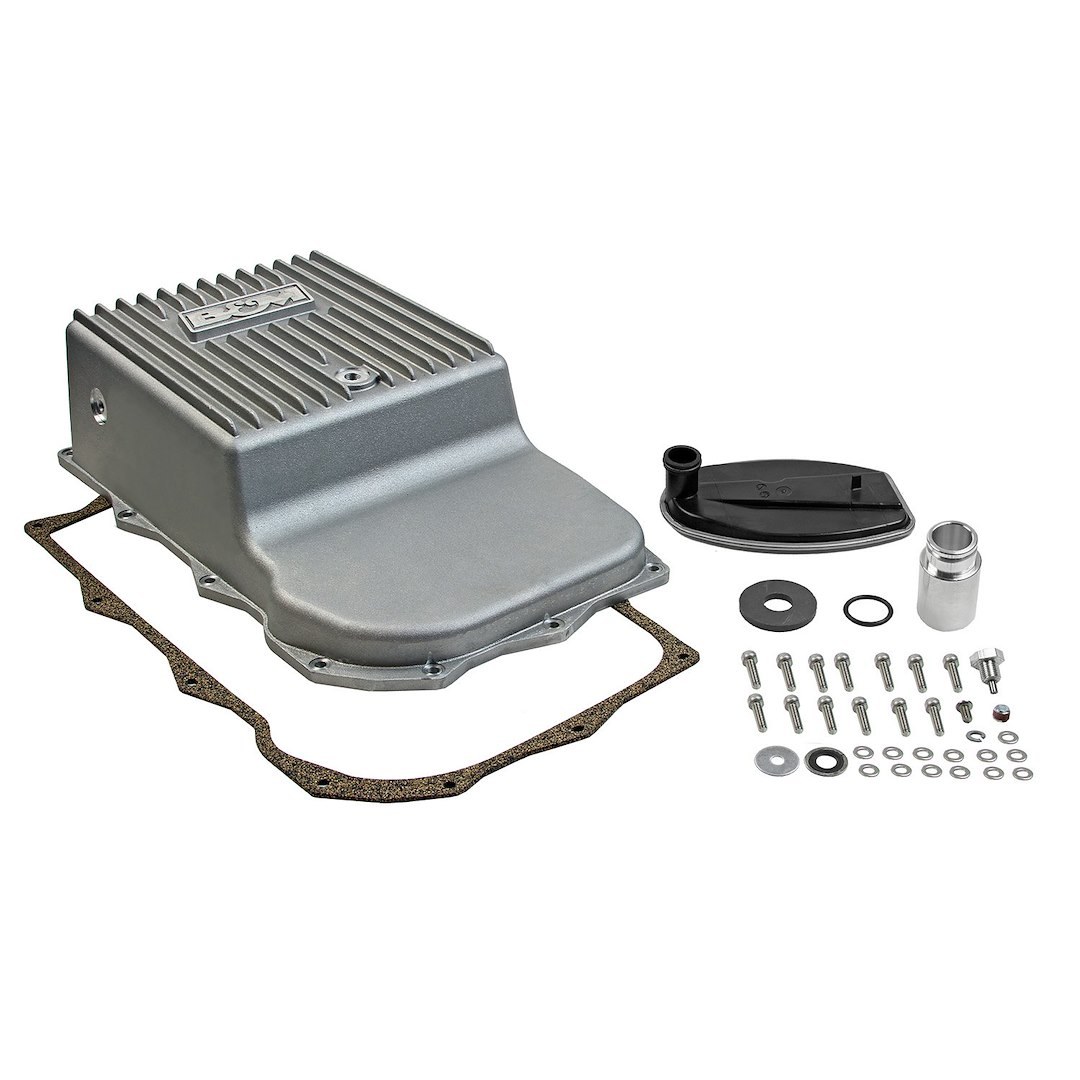

B&m Co Auto Trans Oil Pan, Hi-Tek, For Use with Zf 845RE/ 850RE/ 8HP70 and 8HP75 Transmission, Extra 4 Quart Capacity, Natural, Cast Aluminum – 70395
$441.31
B&m Co Auto Trans Oil Pan, Hi-Tek – 70395
Description
Auto Trans Oil Pan; Hi-Tek; For Use With ZF 845RE/ 850RE/ 8HP70 And 8HP75 Transmission; Extra 4 Quart Capacity; Natural; Cast Aluminum; With Drain Plug
Attributes:
- Transmission Model: ZF 845RE/ 850RE/ 8HP70/ 8HP75 Transmissions
- Capacity Increase Over OEM (QT): 4 Quarts
- Finish: Bare
- Color: Natural
- Material: Aluminum
- Includes Drain Plug: Yes

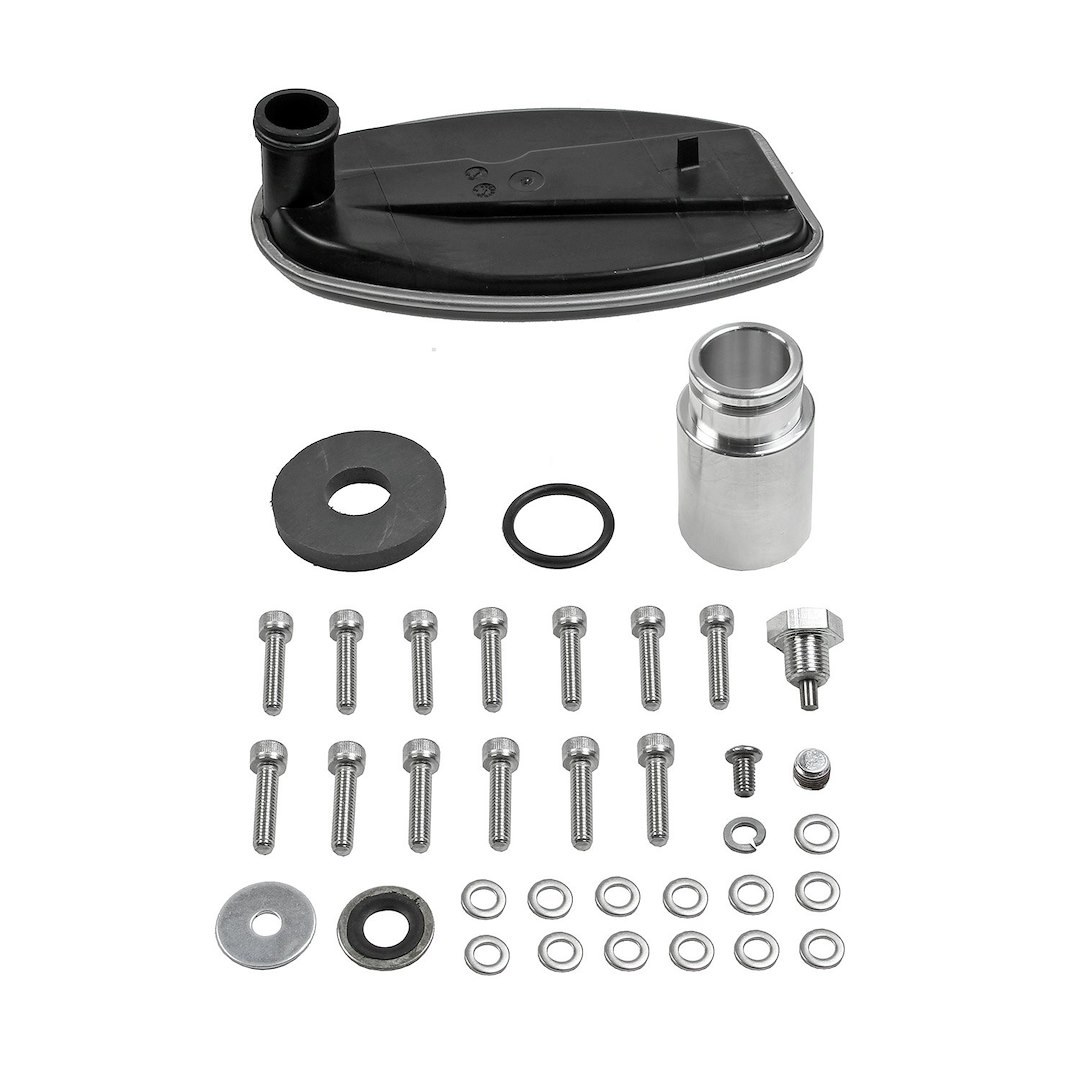

- Includes Filter: Yes
- Includes Filter Extension: Yes
- Includes Gaskets: Yes
- Includes Bolts: Yes
Features & Benefits:
- Durable A356-T6 Aluminum Construction
- Drain Port With Magnetic Drain Plug For Easy Servicing
- Adds Additional 4-Quart Fluid Capacity
- Features Fluid Pickup Extension, Gasket And Sensor Temperature Port
- Increased Cooling Properties
- Custom B&M Logo
- Limited 1 Year Warranty
About Product:
Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 4 quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures and prolonging the life of your transmission, transmission fluid, and corresponding components. Other features of this popular pan include a filter extension, pan gasket, and drain port with a magnetic drain plug for clean and easy servicing. Also features a 1/8 inch NPT temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing, or racing. features detailed instructions with all necessary hardware for an easy at-home installation.
Additional information
| Weight | 13.35 lbs |
|---|---|
| Dimensions | 19.8 × 12.9 × 7.4 in |
| Brand | B&M CO |
| Manufacturer Part Number | 70395 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 2,182 vehicles.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| Loading fitment... | ||||
