Centerforce Clutch Set, Cf II Series, 10.4 Inch Clutch Diameter, 1-1/8 Inch X 10 Spline Input Shaft, Cast Iron Pressure Plate – KCFT148174
$1,296.79
Centerforce Clutch Set, Cf II Series, 10.4 Inch Clutch Diameter – KCFT148174
Description

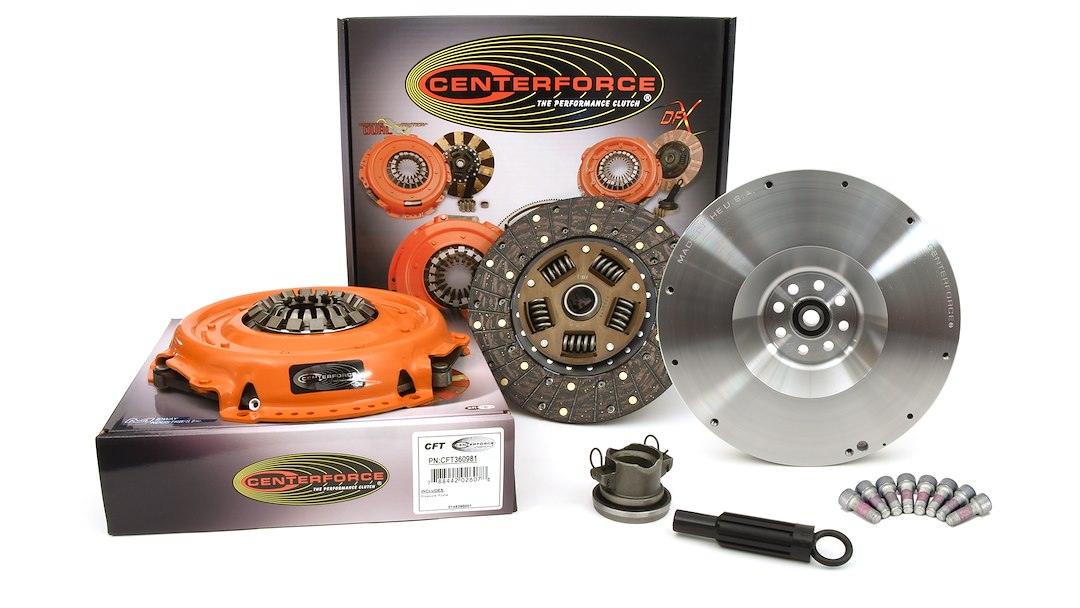

Clutch Set; CF II Series; 10.4 Inch Clutch Diameter; 1-1/8 Inch x 10 Spline Input Shaft; Cast Iron Pressure Plate; 458 Foot Pound Torque Capacity; Organic Friction Material; Full Face Design/ Sprung Hub; Billet Steel Flywheel; 12.345 Inch Ring Gear Outside Diameter; 146 Tooth Flywheel; 8 Shouldered Bolt Crank; With Pilot Bushing/ Release Bearing/ Alignment Tool/ Mounting Hardware
Attributes:
- Input Shaft Size: 1-1/8 Inch X 10 Spline

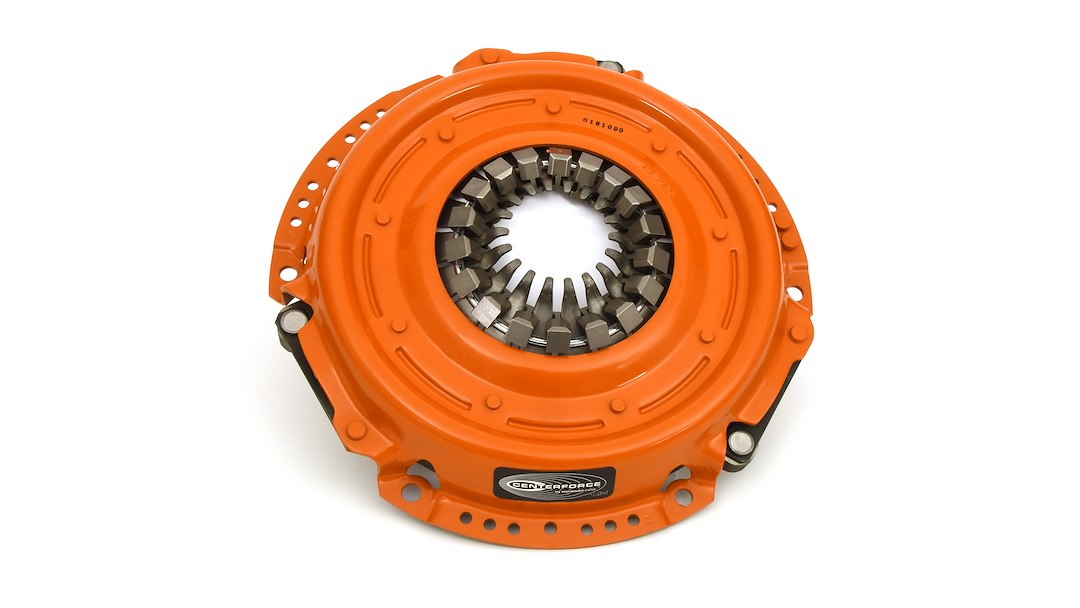

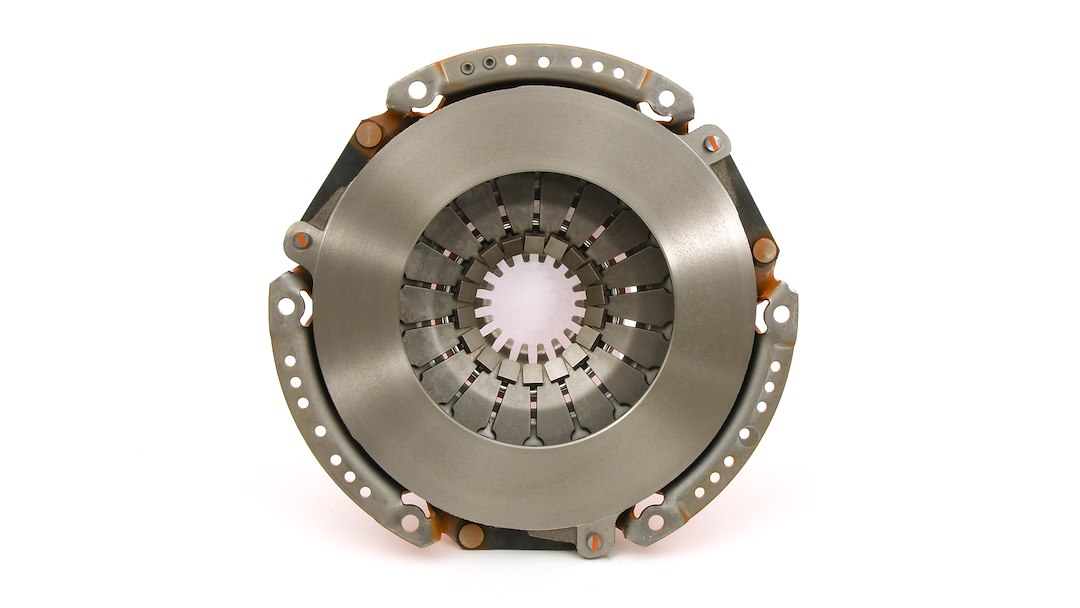

- Pressure Plate Design: Diaphragm
- Disc Diameter: 10.4 Inch
- Number Of Friction Discs: 1 Disc
- Flywheel Tooth Count: 146
- Disc Friction Material: Organic
- Disc Friction Face Design: Full Face
- Disc Hub Design: Sprung
- Torque Holding Capacity: 458 Feet/ Pound
- Flywheel Material: Billet Steel
- Includes Throwout Bearing: Yes
- Includes Pilot Bearing: Yes
- Includes Alignment Tool: Yes
Features & Benefits:

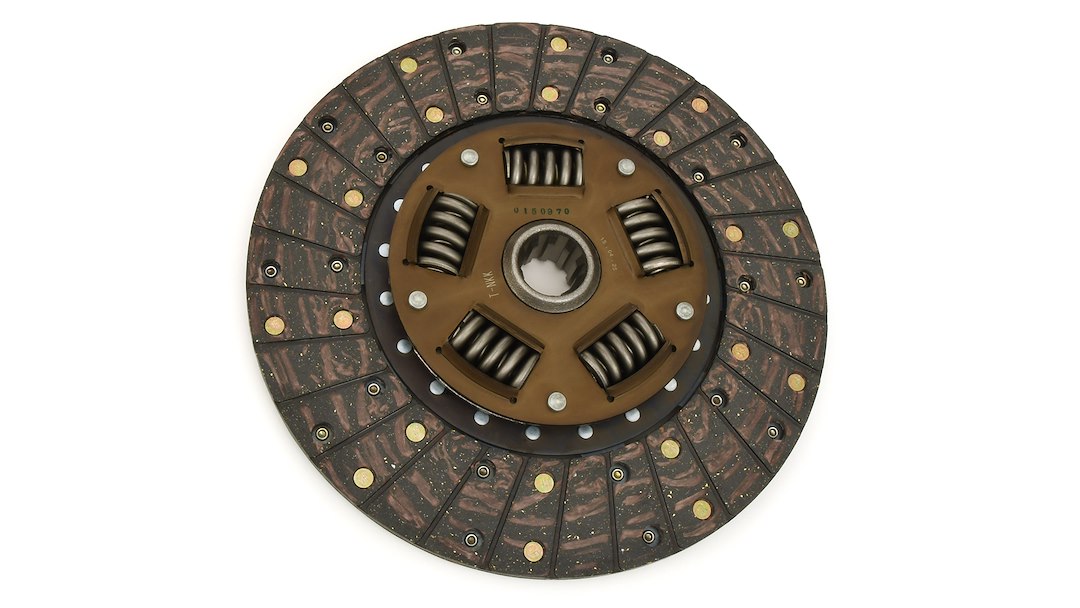

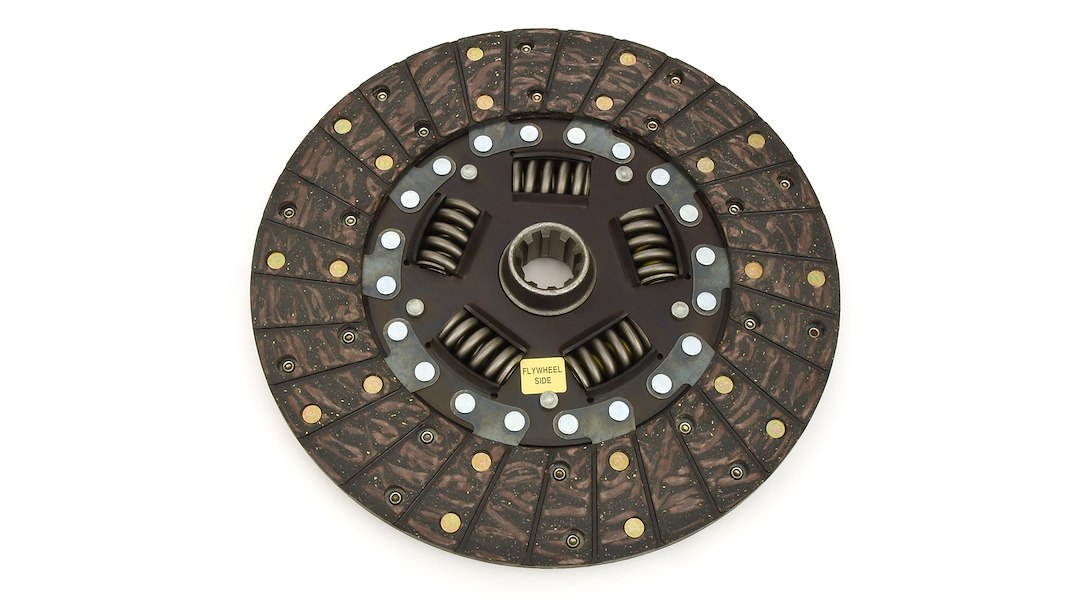

- Sprung Hub Disc With Organic Material
- Holds Up To 458 Feet Per Pound Of Torque
- 146 Tooth R.Gear, 8 Bolt Crank, And 0 Ounce Counter Balance
- Utilizes Our Centrifugal Weights And Patented Machining Processes For Superb Holding Power And Maximum Clutch Life
- Limited 1 Year Warranty
About Product:
The Centerforce® II Clutch Series utilizes a full facing disc with premium friction material and a pressure plate with centrifugal weights (where applicable). Furthermore, static clamp load is increased via our patented machining processes; this combination allows superb holding power and maximum clutch life, making this clutch ideal for selected street/strip, off-road and towing applications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce II Pressure Plates are based and calculated in conjunction with a Centerforce I and II Clutch Disc.
Additional information
| Weight | 86.85 lbs |
|---|---|
| Dimensions | 18 × 18 × 5.5 in |
| Brand | CENTERFORCE |
| Manufacturer Part Number | KCFT148174 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 43 vehicles.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| Loading fitment... | ||||
