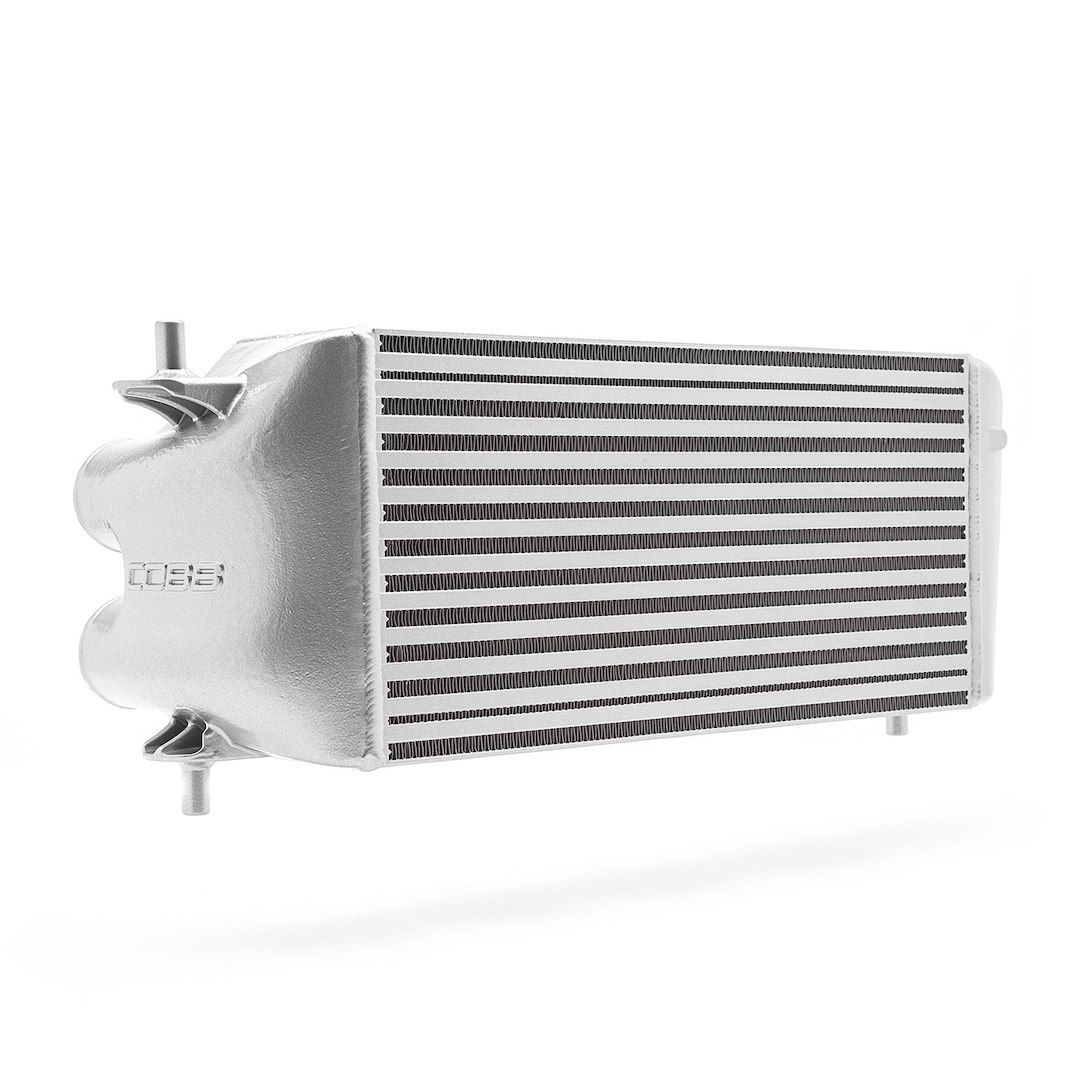

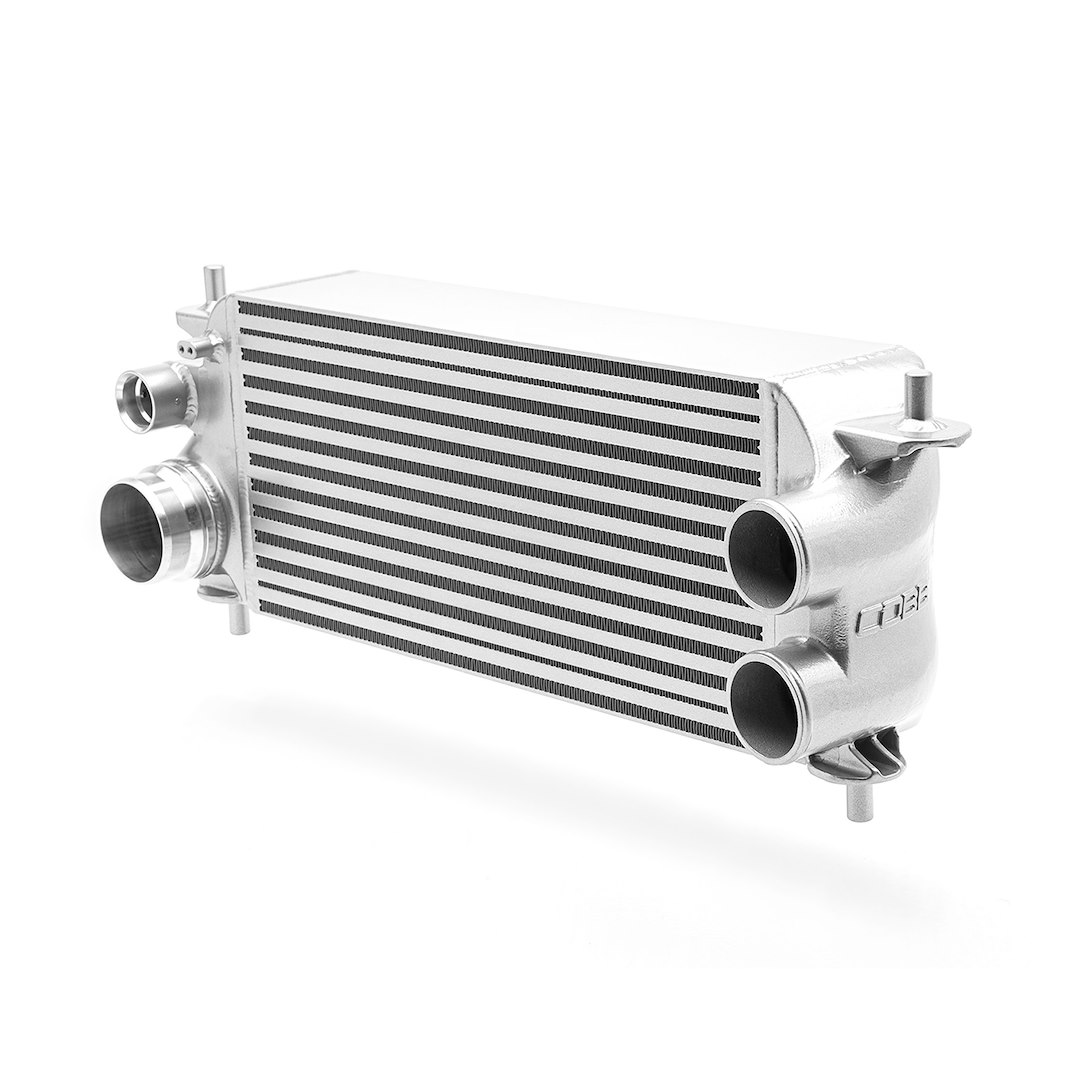

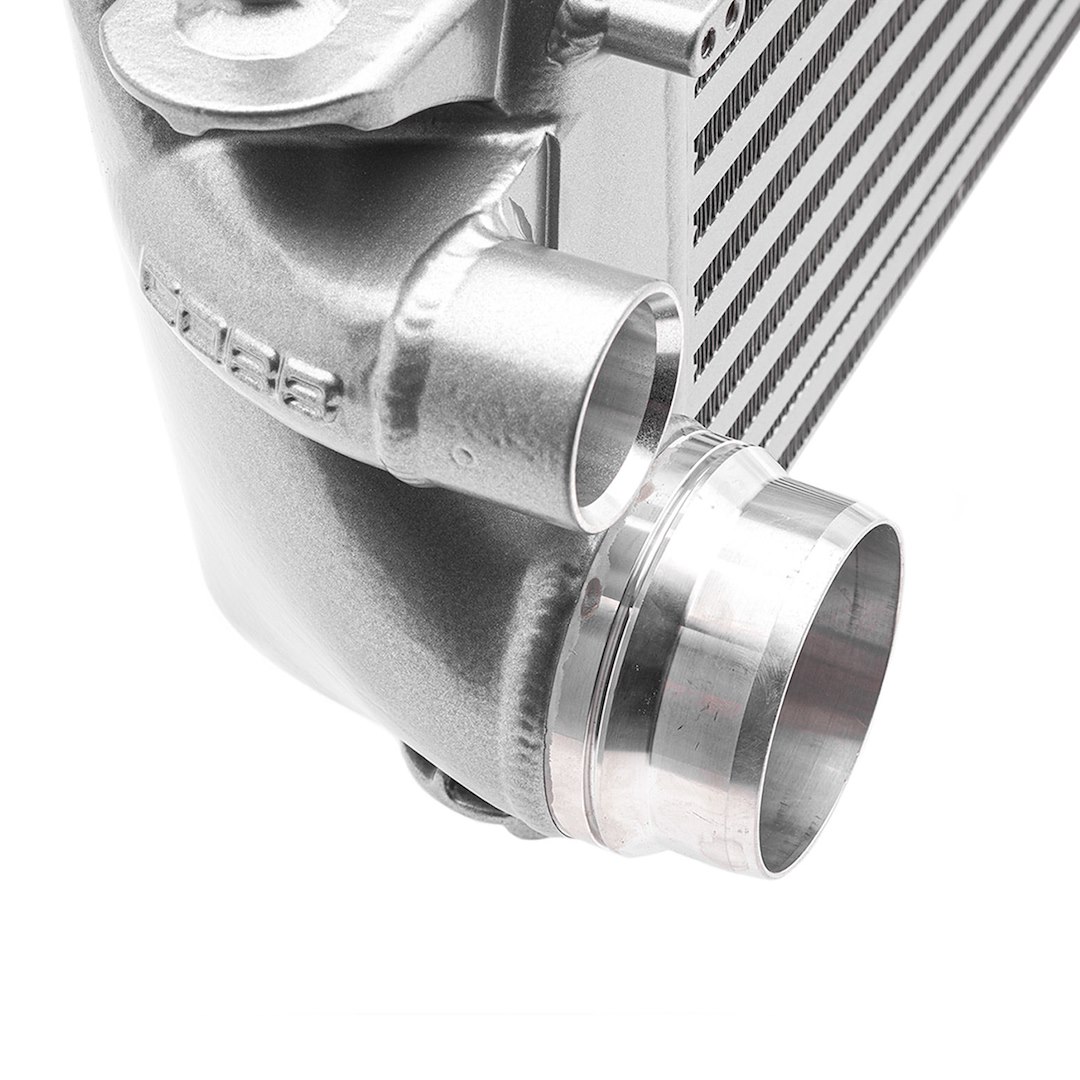

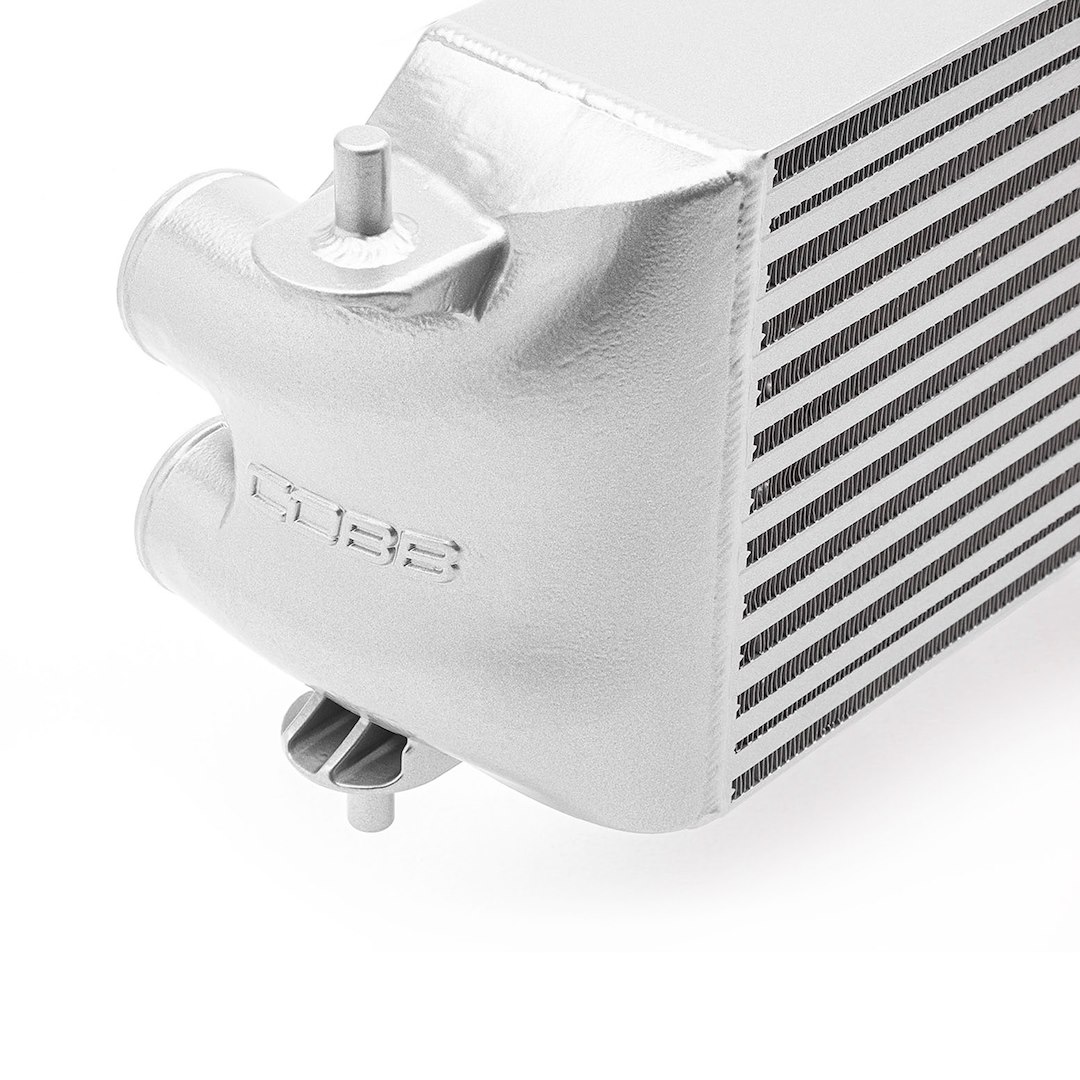

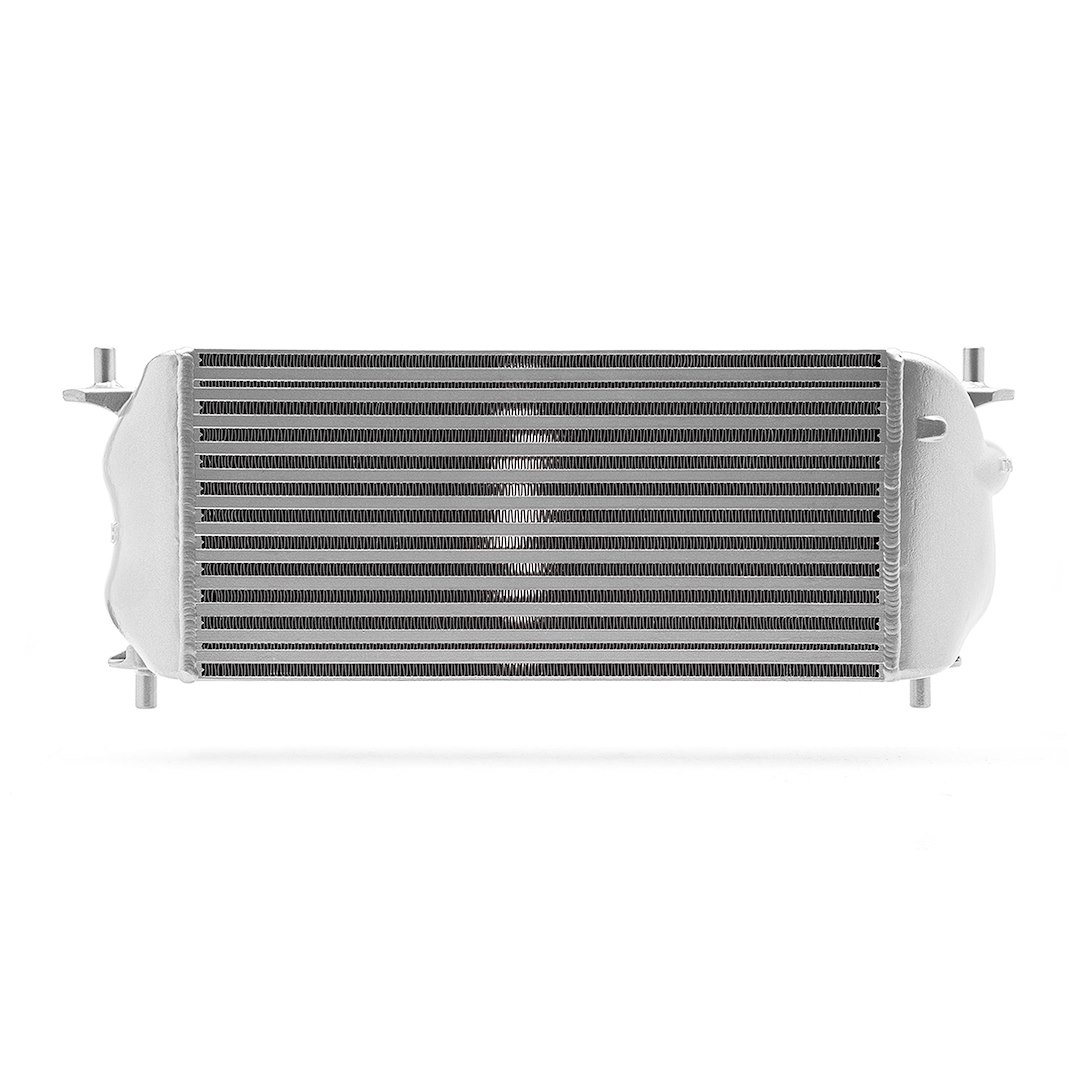

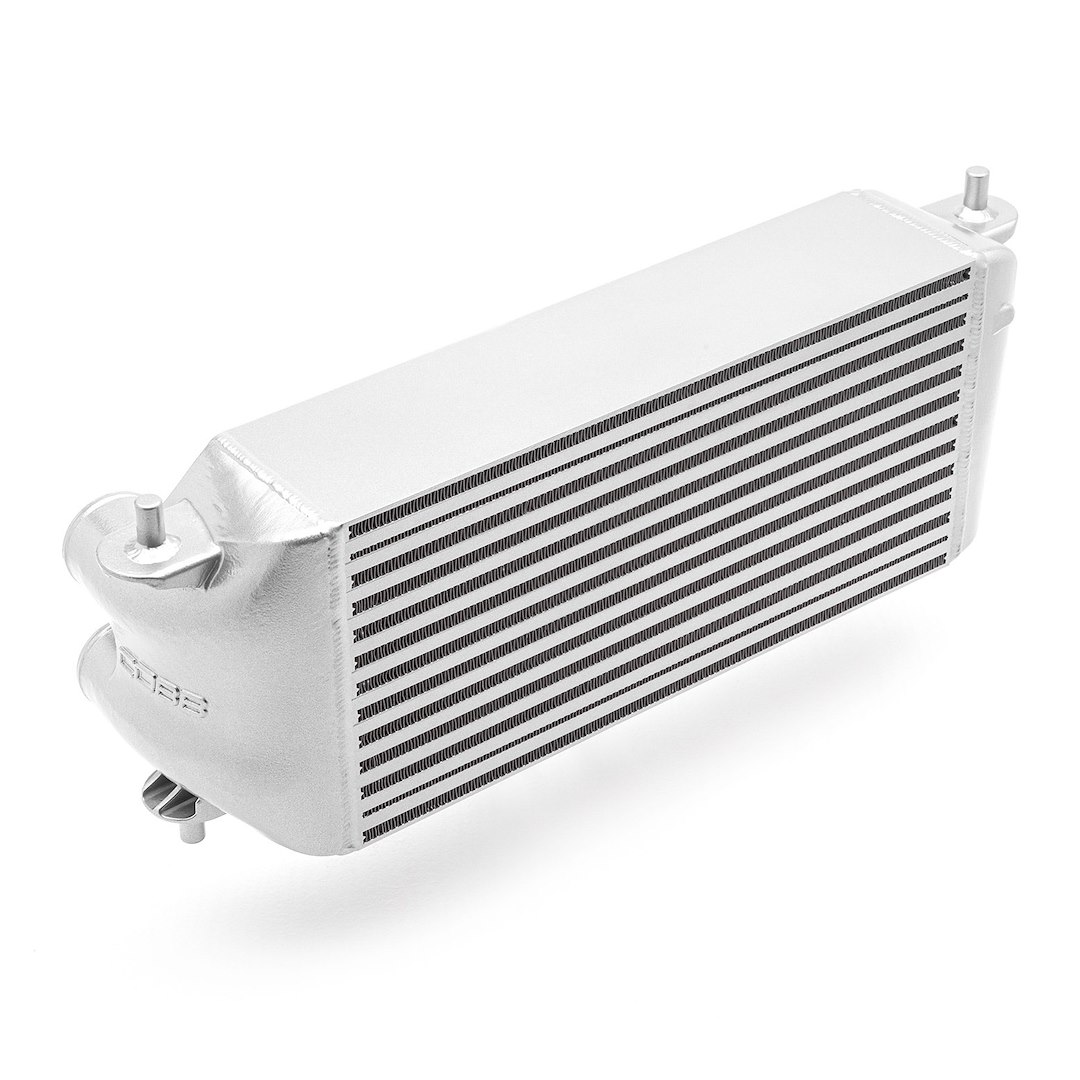

Cobb Tuning Intercooler, Air to Air, Core Size – 20 Inch Length X 9-1/2 Inch Height X 5 Inch Width – 7F1527-SL
$1,103.30
Cobb Tuning Intercooler, Air to Air – 7F1527-SL
Description
Intercooler; Air To Air; Core Size – 20 Inch Length x 9-1/2 Inch Height x 5 Inch Width; 2 Inch x 2.26 Inch Inlet/ 3.2 Inch Outlet Diameter; Aluminum; Silver; 50 State Legal
Attributes:
- Type: Air To Air
- Maximum Horsepower (HP): OEM
- Flow Rate: OEM
- Overall Width (IN): OEM
- Overall Height (IN): OEM
- Overall Depth (IN): OEM
- Construction: OEM
- Inlet Size (IN): 2 Inch X 2.26 Inch
- Outlet Size (IN): 3.2 Inch
- Core Width (IN): 20 Inch
- Core Height (IN): 9-1/2 Inch
- Core Depth (IN): 5 Inch
- Inlet/Outlet Neck Location: OEM
- Finish: OEM
- Color: Silver
- Material: Aluminum
Features & Benefits:
- Cast Aluminum TIG Welded Assembly
- Approximately 70 Percent Larger Volume Than Stock Intercooler Core And Cooling Surface Area 10 Percent Larger Than Stock
- Compatible With Accessport Off The Shelf Maps
- No Cutting, Trimming Or Permanent Modification To The Vehicle Required
- Mates Up Snugly To OEM Shutter Shroud To Funnel Air Through Ambient Side Fins Like OEM
- Limited 1 Year Warranty
About Product:
Whether you want to go all out with the beefy COBB Front Mount Intercooler (light modification for install required) or the simplicity of installation of this factory location front mount intercooler, COBB has you covered. This cast aluminum, TIG welded assembly has a core with 70 Percent greater volume than the stock unit and offers 10 Percent more cooling surface area. All while mating snugly to the OEM shutter shroud requiring absolutely no cutting, trimming or permanent modification to the vehicle. This FMIC was designed in house with attention to detail lacking on other aftermarket offerings. Computational fluid dynamic analysis was used to create the smoothest end tank design which increases flow evenly and resulted in no areas of significant turbulence. The outlet port of the intercooler was also designed with a large chamfer to provide a smooth transition out of the intercooler into the throttle body tube to further reduce turbulence in the system. For those planning additional modifications like water or methanol injection, this intercooler also has two flat sections into the casting. The top flat can easily be drilled and tapped to introduce a nozzle. The bottom flat can be used as a drain port.
Additional information
| Weight | 32 lbs |
|---|---|
| Dimensions | 31 × 16 × 9 in |
| Brand | COBB TUNING |
| Manufacturer Part Number | 7F1527-SL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 387 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
