Name: Comnav Autopilot Electronics Package - 10040002
Brand: COMNAV
SKU: KYS-CMV10040002
Price: 3419.70 USD
Availability: InStock

Description

Autopilot Electronics Package; 1001F With Fluxgate Compass Interface, For Use W/ 3Rd Party Compass. 2″ LCD, Pushbutton Controls, Supports Second Station, RAI, Jog Lever. With Rotary Feedback And Distribution Box. Compass, Drive Unit And Motor Controller NOT Included.

Attributes:

Compass: Interface for use with third party, pre-existing fluxgate compass
Control Type: Pushbuttons
Dimensions: Control head: 8.0″W x 3.26″H x 3.6D
Display: 2″ LCD
Drive Unit: Not Included
Interface: 1 ea. NMEA 0183 in/out
Processor: Contained in the control head; optional motor drive controller required
Remote Options: Optional second station, rudder angle indicator, jog lever
Rudder Feedback: Rotary (PN: 20330008)
Steering Type: Hydraulic or constant-running (solenoid)
Vessel: Mid-sized powerboats up to 60′

Features & Benefits:

Three turn functions: Continuous, Emergency and “U” Turns
Water resistant Control Head
Ability to add a full-function second station or remote control
Automatic trim;Adjustable yaw, turn rate and rudder settings
Easy course changes, from one degree to major changes
Fast and Slow Modes may be automatically implemented by Nav device
Ten selectable steering parameters for both Fast and Slow Modes
Digital display of rudder angle; Nav mode accepts NMEA 0183 information
Output for optional analog rudder angle indicator, up to 4 stations; Backlit LCD display for comfortable viewing, Adjustable brightness and contrast
Limited One year Warranty; three years if installed by an authorized dealer

About Product:

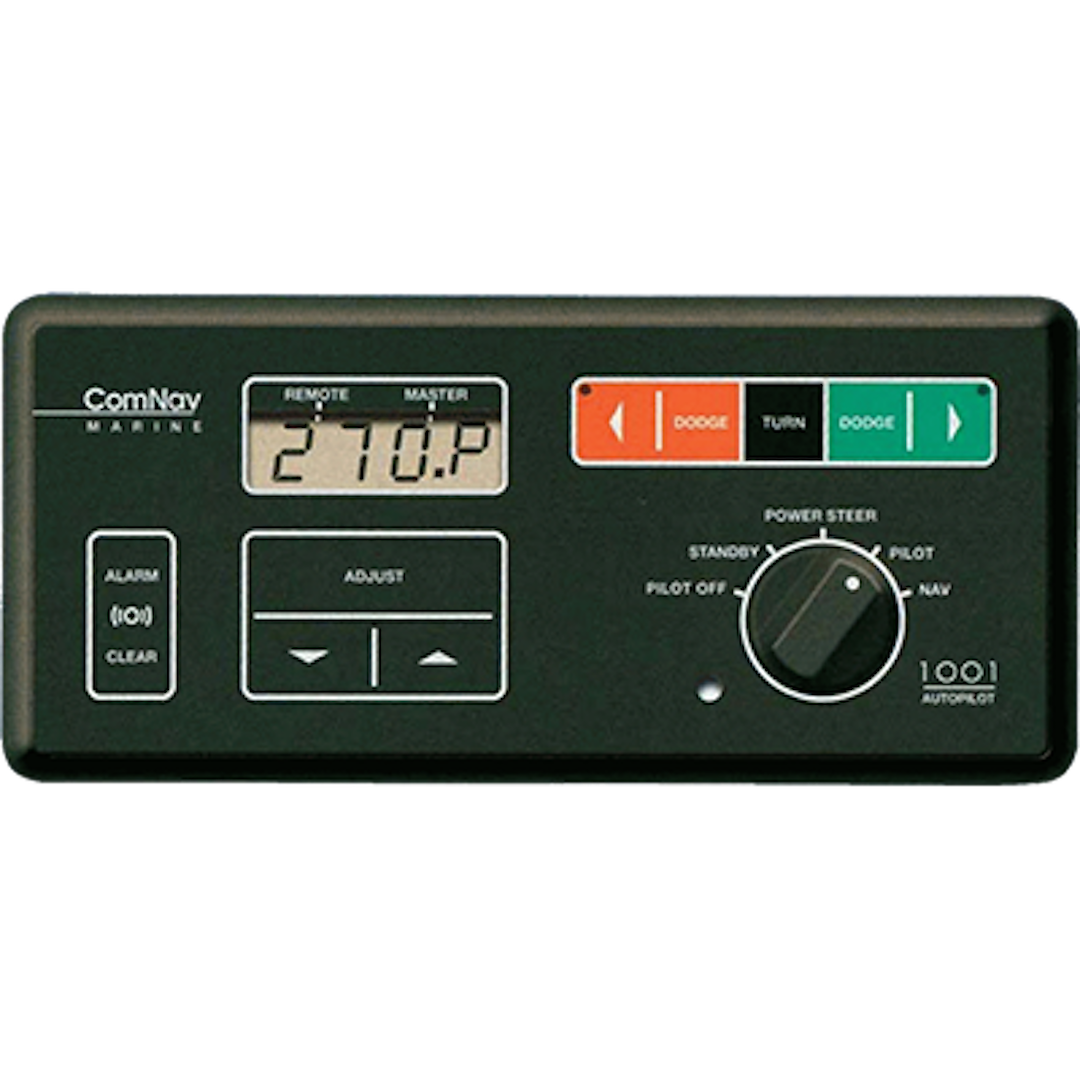

ComNav 1001F AutopilotWith Fluxgate Compass InterfaceThe 1001 Autopilot from ComNav is designed to work on a wide variety of boats, from small pleasure craft to massive workboats.Included with the pilot is an interface designed to work with a wide variety of pre-installed third-party fluxgate compasses.This option can save hundreds of dollars when replacing an existing pilot or when the vessel already has a compass installed for radar/chartplotter purposes.The 1001 Autopilot is capable of being used with most any type of steering system, and is especially useful when there is a need to retrofit to an older system.Using one of several available drive boxes (sold separately) the 1001 can be used with mechanical, hydraulic, or constant-running (solenoid) steering systems.Since their introduction in 1982, ComNav Autopilots have gained a reputation for top performance and reliability in even the harshest sea conditions.Built-in diagnostics, self test, visual and audible alarms, plus a three year extended warranty make the 1001 one of the most reliable autopilots on the market today.
