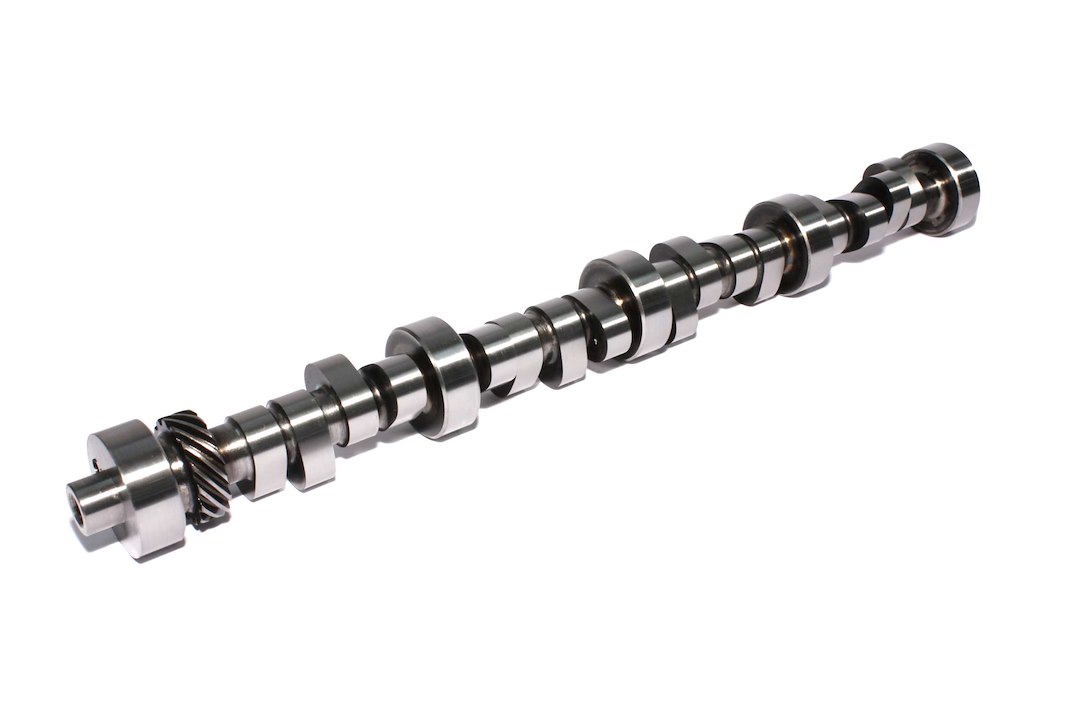

Comp Cams Camshaft, Drag Race, Ford Windsor Small Block 5.8L/351 Cubic Inch, Mechanical Roller, 4800-7500 RPM Range – 35-781-9
$619.56
Comp Cams Camshaft, Drag Race – 35-781-9
Description
Camshaft; Drag Race; Ford Windsor Small Block 5.8L/351 Cubic Inch; Mechanical Roller; 4800-7500 RPM Range; 278 Degree Intake Duration @ 0.050 Inch Lift; 286 Degree Exhaust Duration @ 0.050 Inch Lift; 0.696 Inch Intake Valve Lift; 0.683 Inch Exhaust Valve Lift; 110 Degree Lobe Separation
Attributes:
- Engine Compatibility: Ford Small Block V8 5.8L 351W Cubic Inch
- Recommended Use: Serious Street Performance To All-Out Racing
- Type: Mechanical Roller
- Intake Duration At 0.050 Inch Lift (DEG): 278 Degree
- Exhaust Duration At 0.050 Inch Lift (DEG): 286 Degree
- Intake Centerline Angle (DEG): 110 Degree
- Intake Valve Lift (IN): 0.696 Inch
- Exhaust Valve Lift (IN): 0.683 Inch
- Lobe Separation Angle (DEG): 110 Degree
- RPM – Low: 4800
- RPM – High: 7500
- Advertised Intake Duration (DEG): 308 Degree
- Advertised Exhaust Duration (DEG): 326 Degree
- Grind Number: 308DR-10
- Computer-Controlled Compatible: No
Features & Benefits:
- Maximum Performance
- Reduced Friction
- Most Aggressive Profiles
- Easy To Install
- Limited 1 Year Warranty
About Product:
The highest of all performance level camshafts; solid rollers are designed for both high performance street through all-out racing applications. They feature the most aggressive Camshaft lobe profiles and withstand the highest Valve Spring pressures. As with their solid flat tappet Camshaft cousins, they are noisier than hydraulic Camshaft systems, particularly when cold, yet they deliver more performance and throttle response, especially when adjusted to “Tight” lash settings of 0.010 Inch To 0.012 Inch. The solid roller Camshaft also uses roller lifters that do not features an adjustment for Valve train component expansion due to internal Engine heat and requires regular lash adjustment service to deliver top performance. Solid roller lifters can be re used, however they are more costly than flat tappet lifters.
Additional information
| Weight | 9.93 lbs |
|---|---|
| Dimensions | 24.5 × 3 × 2.75 in |
| Brand | COMP CAMS |
| Manufacturer Part Number | 35-781-9 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 7,578 vehicles.
