Name: Comp Cams Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit, High Energy ™, For Use with Chrysler Small Block 4.5L-5.9L/273-360 Cubic Inch - K20-212-2
Brand: COMP CAMS
SKU: KYS-C56K202122
Price: 625.58 USD
Availability: InStock

Description

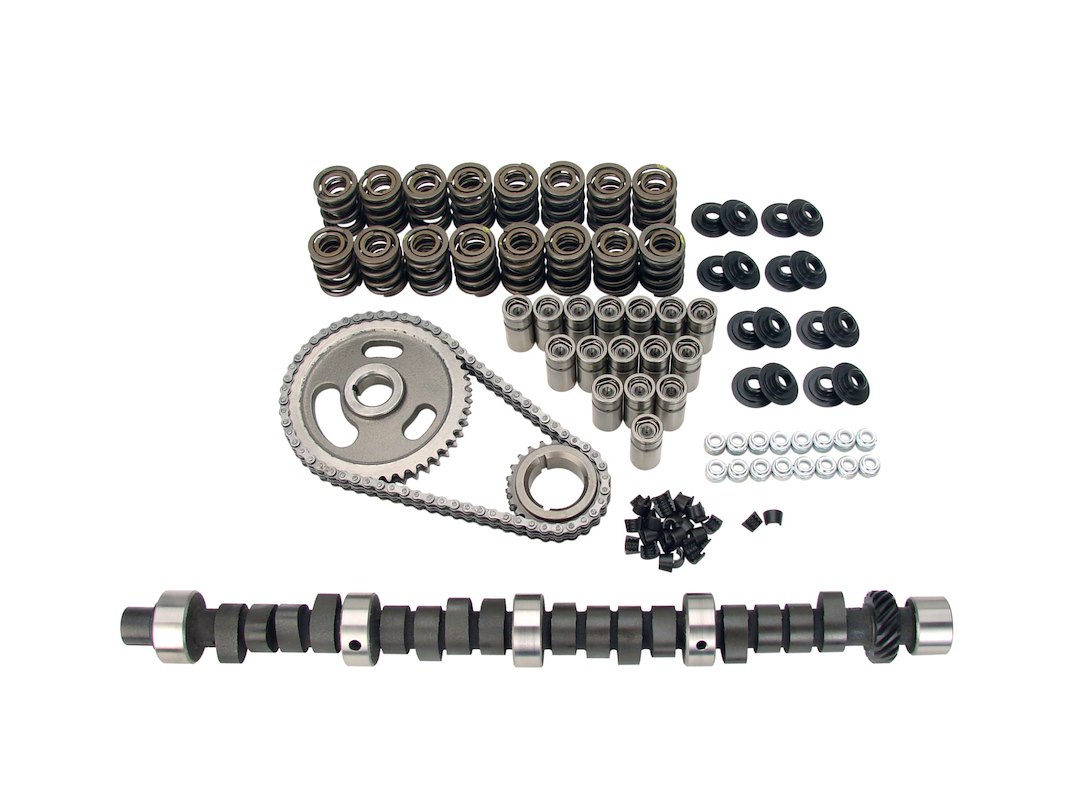

Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit; High Energy ™; For Use With Chrysler Small Block 4.5L-5.9L/273-360 Cubic Inch; Double Roller Chain Drive; Hydraulic Flat Tappet; 1500-5500 RPM Range; 218 Degree Intake Duration @ 0.050 Inch Lift; 218 Degree Exhaust Duration @ 0.050 Inch Lift; 0.454 Inch Intake Valve Lift; 0.454 Inch Exhaust Valve Lift; 110 Degree Lobe Separation; With Lifters/Valve Springs/Retainers/Locks/Valve Stem Seals/Timing Chain Set/Assembly Lube/Decals/Instructions

Attributes:

Engine Compatibility: Chrysler Small Block V8 273-360 Cubic Inch
Timing Type: Double Roller Chain Drive
Camshaft Type: Hydraulic Flat Tappet
RPM – Low: 1500
RPM – High: 5500
Advertised Exhaust Duration (DEG): 268 Degree
Advertised Intake Duration (DEG): 268 Degree
Exhaust Duration At 0.050 Lift (DEG): 218 Degree
Exhaust Lift (IN): 0.454 Inch
Exhaust Valve Lash (IN): 0 Inch
Idle Characteristics: Noticeable
Intake Duration Lift At 0.050 Lift (DEG): 218 Degree
Intake Lift (IN): 0.454 Inch
Intake Valve Lash (IN): 0 Inch
Lobe Separation Angle (DEG): 110 Degree
Rocker Arm Ratio: 1.5
Lifter Style: Hydraulic Flat Tappet
Outside Diameter Of Outer Spring (IN): 1.494 Inch
Computer Controlled Compatible: No
Includes Retainers: Yes
Includes Locks: Yes
Includes Valve Stem Seals: Yes
Includes Assembly Lubricant: Yes
Includes Pushrods: No
Includes Rocker Arms: No
Includes Gaskets: No
Includes Timing Chain Set: Yes
Includes Decals: Yes
Grind Number: 268H

Features & Benefits:

High Energy Cams™ Are Designed To Improve Your Engine’s Efficiency Through Its Unique Lobe Characteristics
When Installed In The Correct Application , High Energy Cams™ Will Usually Produce Better Gas Mileage And Power
Limited 1 Year Warranty

About Product:
These high torque Camshafts are designed for street applications with lower compression ratios. They can be used with most stock components including intake manifolds, exhaust manifolds and carburetors. High Energy Cams™ are designed to improve your engine’s efficiency through its unique lobe characteristics. When installed in the correct application, High Energy Cams™ will usually produce better gas mileage and power. COMP Cams(R) has matched Valve springs to go with each of the cams in the High Energy™ series to ensure peak performance.
