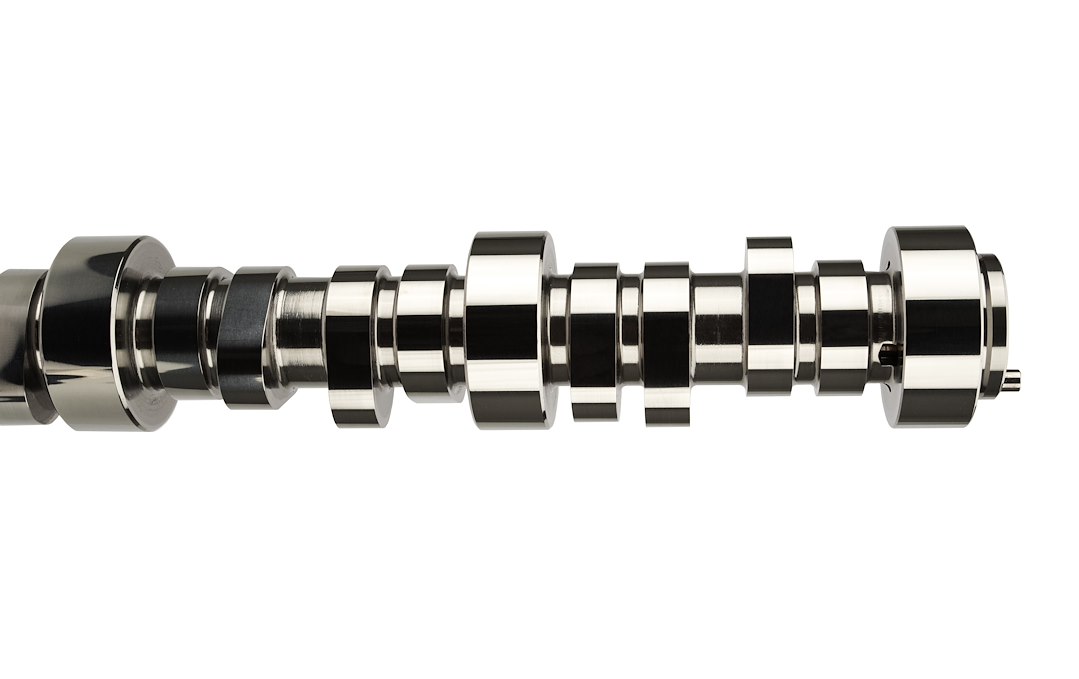

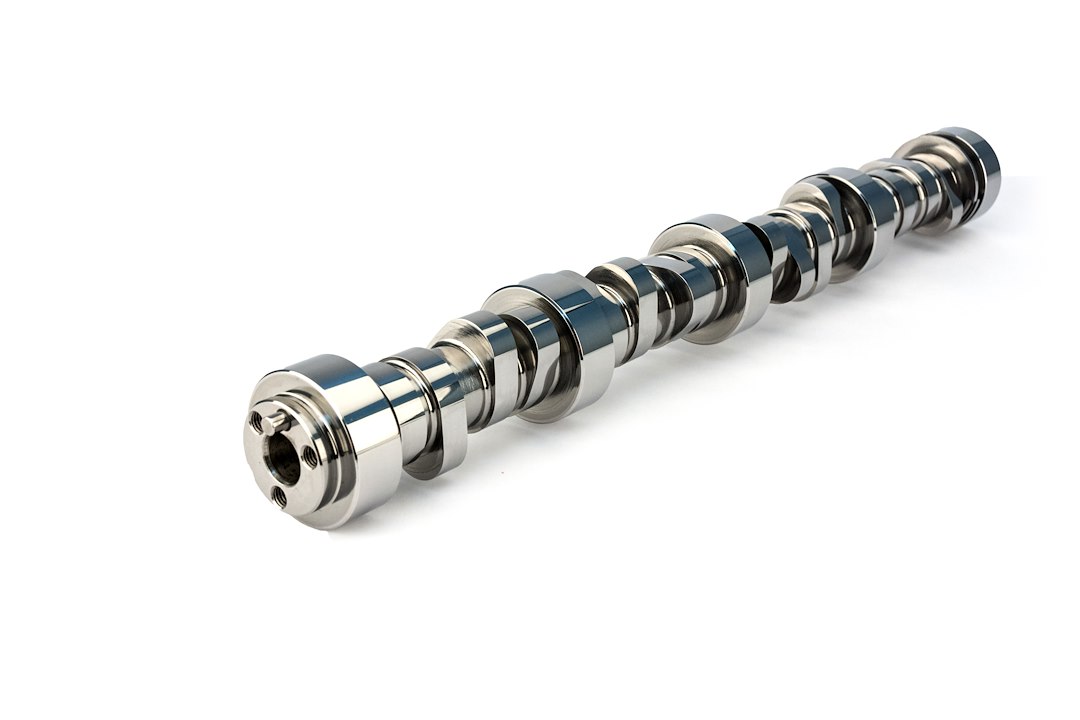

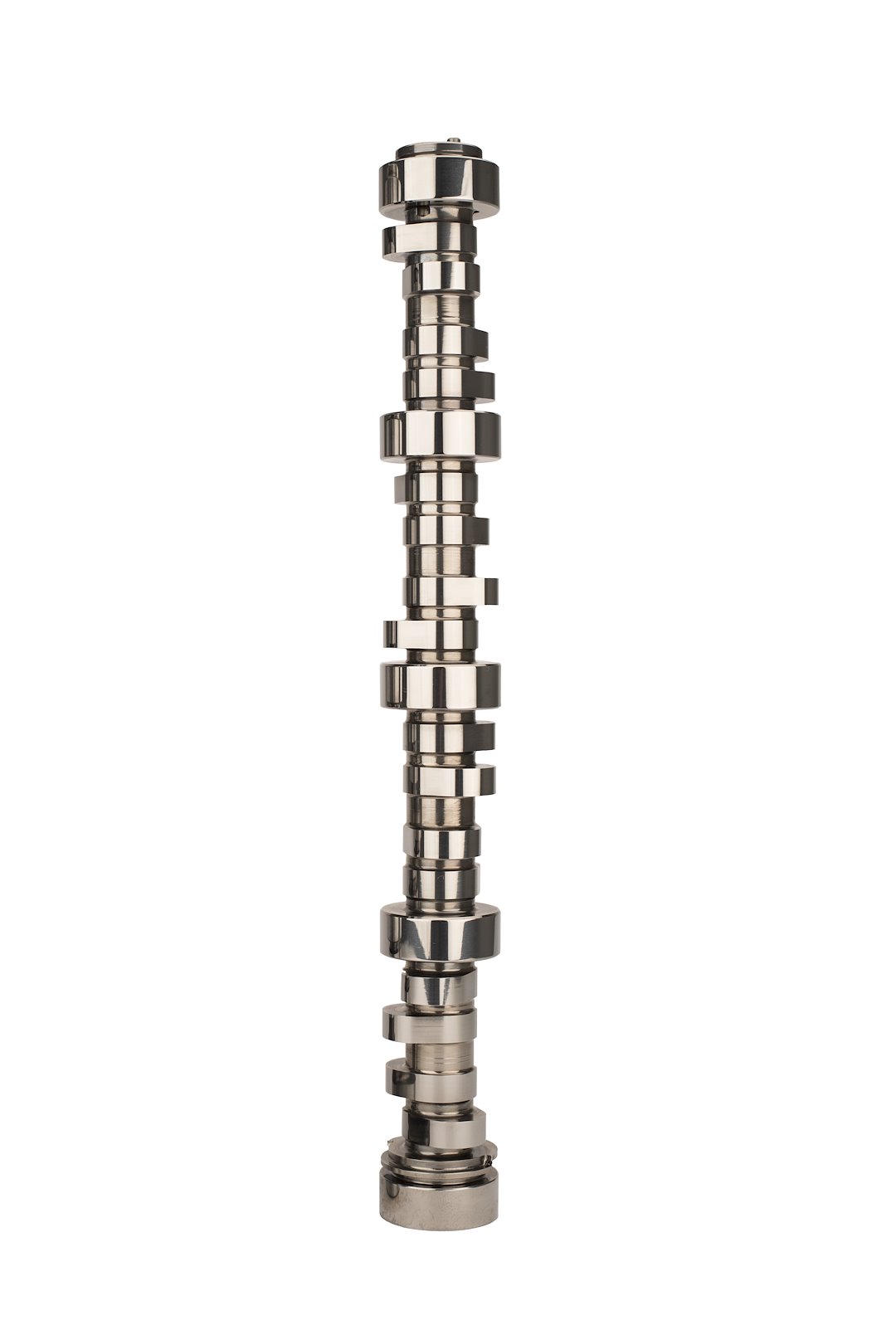

Name: Comp Cams Camshaft, Lsr ™, GM Ls Gen III/IV Three-Bolt, Hydraulic Roller, 1700-6800 RPM Range - 54-457-11
Brand: COMP CAMS
SKU: KYS-C565445711
Price: 455.59 USD
Availability: InStock

Description

Camshaft; LSR ™; GM LS Gen III/IV Three-Bolt; Hydraulic Roller; 1700-6800 RPM Range; 223 Degree Intake Duration @ 0.050 Inch Lift; 231 Degree Exhaust Duration @ 0.050 Inch Lift; 0.610 Inch Intake Valve Lift; 0.617 Inch Exhaust Valve Lift; 112 Degree Lobe Separation

Attributes:

Engine Compatibility: GMC Gen III LS Engines
Recommended Use: Mild Street Performance To Mild Race
Type: Hydraulic Roller
Intake Duration At 0.050 Inch Lift (DEG): 223 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 231 Degree
Intake Centerline Angle (DEG): 107 Degree
Intake Valve Lift (IN): 0.61 Inch
Exhaust Valve Lift (IN): 0.617 Inch
Lobe Separation Angle (DEG): 112 Degree
RPM – Low: 1700
RPM – High: 6800
Advertised Intake Duration (DEG): 273 Degree
Advertised Exhaust Duration (DEG): 281 Degree
Grind Number: 273LR HR12
Computer-Controlled Compatible: No

Features & Benefits:

Aggressive Roller Profiles
Reduced Friction
Low Maintenance
Reduced Valve Train Noise
Limited 1 Year Warranty

About Product:
Frequently used in today’s OEM factory Engines and mild to moderately aggressive performance engines, hydraulic roller cams use lifters equipped with a roller wheel that tracks along the Camshaft lobe, reducing wear and friction and enabling faster lobe ramp rates than flat tappet Cams. These quiet operation lifters feature the same internal design as hydraulic flat tappet lifters with internal cavities and pistons but do not rotate within the lifter bore. Suited for typical street or moderate race Engine speeds, the lifters are pre loaded and do not require a lash setting. Most OEM hydraulic roller Camshafts are limited to 6200 RPM and performance aftermarket systems to approximately 6800 RPM. Hydraulic roller lifters require an appropriately selected Valve Spring to maintain control and avoid lifter float at higher Engine RPM. Hydraulic roller lifters can be re used with multiple Camshafts, however they are more costly than flat tappet lifters.
