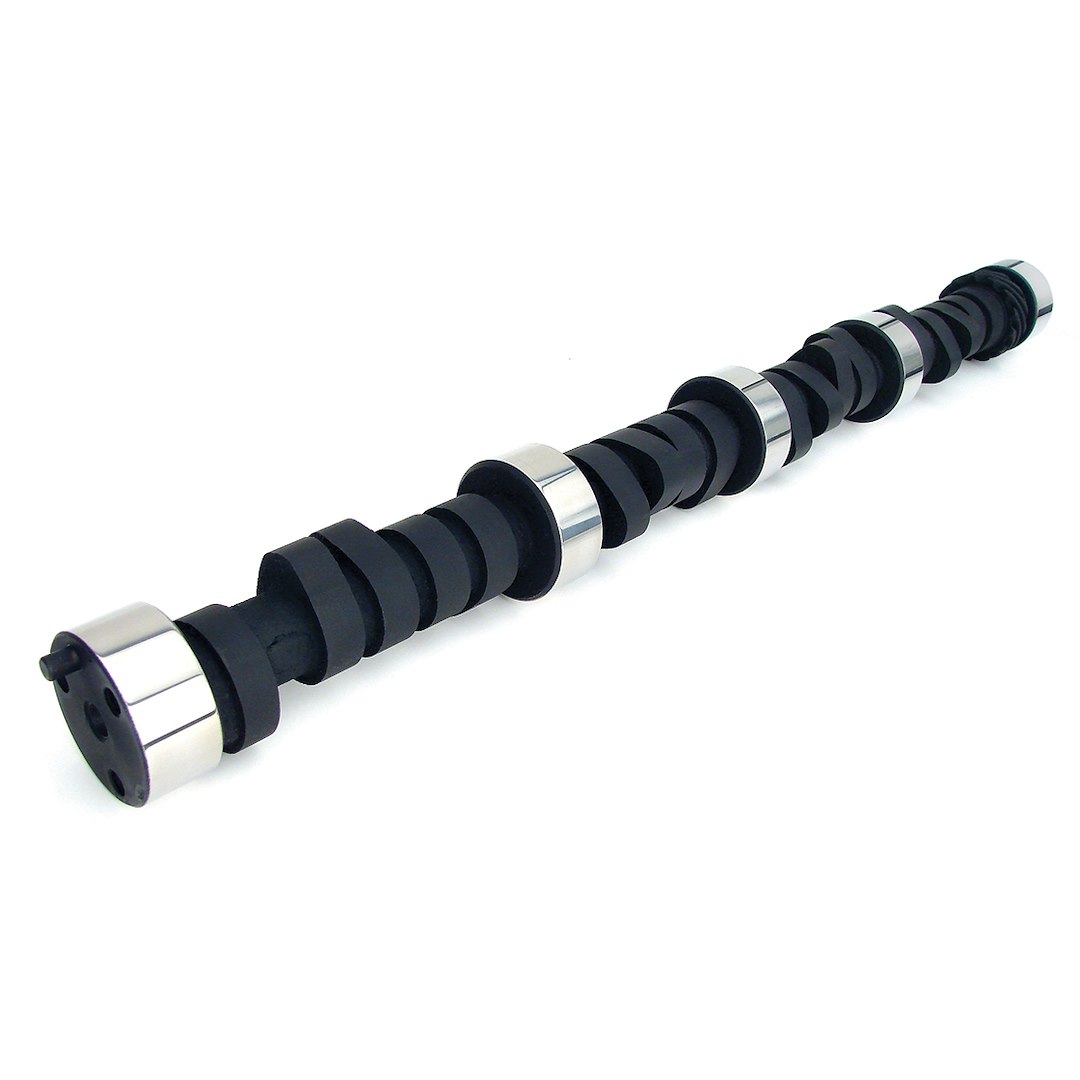

Comp Cams Camshaft, Xtreme Energy ™, Chevy Small Block 4.3L-6.6L/262-400 Cubic Inch, Hydraulic Flat Tappet, 1800-6000 RPM Range – 12-246-3
$310.81
Comp Cams Camshaft, Xtreme Energy ™ – 12-246-3
Description
Camshaft; Xtreme Energy ™; Chevy Small Block 4.3L-6.6L/262-400 Cubic Inch; Hydraulic Flat Tappet; 1800-6000 RPM Range; 230 Degree Intake Duration @ 0.050 Inch Lift; 236 Degree Exhaust Duration @ 0.050 Inch Lift; 0.490 Inch Intake Valve Lift; 0.490 Inch Exhaust Valve Lift; 110 Degree Lobe Separation
Attributes:
- Engine Compatibility: Chevy Small Block V8 262-400 Cubic Inch
- Recommended Use: Mild Street Performance To Mild Race
- Type: Hydraulic Flat Tappet
- Intake Duration At 0.050 Inch Lift (DEG): 230 Degree
- Exhaust Duration At 0.050 Inch Lift (DEG): 236 Degree
- Intake Centerline Angle (DEG): 106 Degree
- Intake Valve Lift (IN): 0.49 Inch
- Exhaust Valve Lift (IN): 0.49 Inch
- Lobe Separation Angle (DEG): 110 Degree
- RPM – Low: 1800
- RPM – High: 6000
- Advertised Intake Duration (DEG): 274 Degree
- Advertised Exhaust Duration (DEG): 286 Degree
- Grind Number: XE274H
- Computer-Controlled Compatible: No
Features & Benefits:
- Quicker Opening Lobe Profiles Deliver Increased Responsiveness And More Area Under The Lift Curve
- More Vacuum Allows A Step Up In Duration For Greater Performance
- Excellent All Around Performance In Street Carbureted Applications
- Modern And Aggressive Roller Profiles
- Reduced Friction And Low Maintenance
- Limited 1 Year Warranty
About Product:
Xtreme Energy Cams™ are designed to take advantage of the latest improvements in Valve train components and the newest developments in Camshaft lobe design. Their aggressive lobe design produces better throttle response and top end Horsepower than other cams with the same duration. Xtreme Energy Cams™ also deliver increased Engine vacuum. Can be used in any street or street/Strip application where both throttle response and top end Horsepower are desired. Because these Camshafts use aggressive lobe designs, it is imperative that Valve springs, locks, retainers, pushrods, lifters, Rocker Arms and other related components be matched to the camshaft.
Additional information
| Weight | 8.8 lbs |
|---|---|
| Dimensions | 24.5 × 3 × 2.75 in |
| Brand | COMP CAMS |
| Manufacturer Part Number | 12-246-3 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 10,083 vehicles.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| Loading fitment... | ||||
