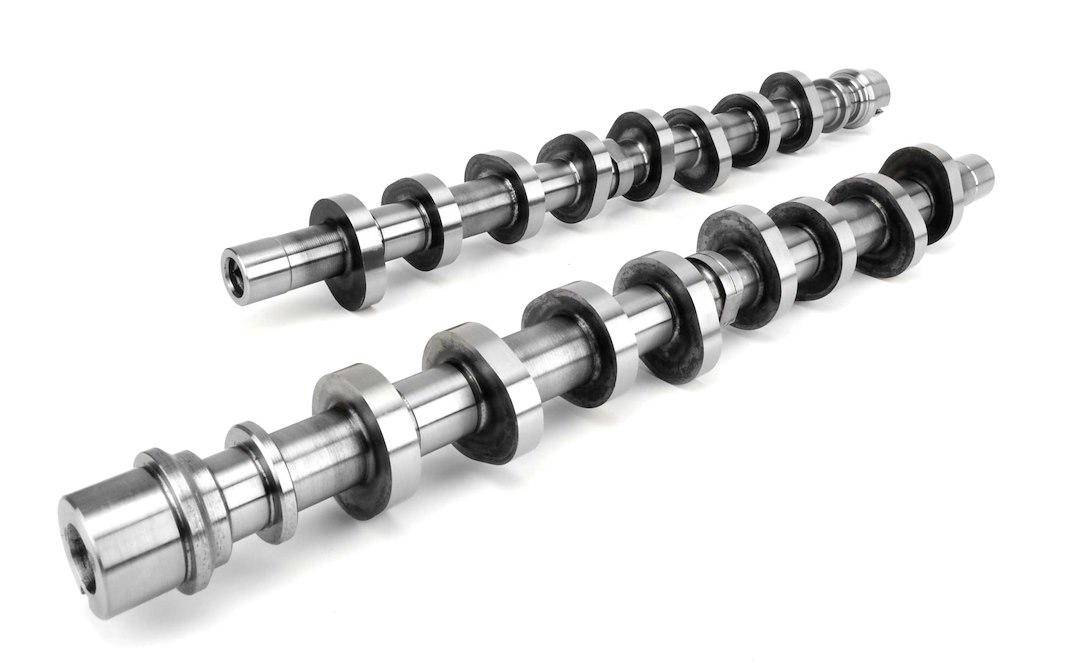

Comp Cams Camshaft, Xtreme Energy ™, Ford Modular 4.6L 2 Valve & 5.4L 2 Valve, Hydraulic Roller Swinging Follower, 1800-5800 RPM Range – 102600
$832.84
Comp Cams Camshaft, Xtreme Energy ™ – 102600
Description
Camshaft; Xtreme Energy ™; Ford Modular 4.6L 2 Valve & 5.4L 2 Valve; Hydraulic Roller Swinging Follower; 1800-5800 RPM Range; 234 Degree Intake Duration @ 0.050 Inch Lift; 238 Degree Exhaust Duration @ 0.050 Inch Lift; 0.550 Inch Intake Valve Lift; 0.550 Inch Exhaust Valve Lift; 113 Degree Lobe Separation
Attributes:
- Engine Compatibility: Ford Modular V8 4.6L-5.4L 281-330 Cubic Inch
- Recommended Use: Mild Street Performance To Mild Race
- Type: Hydraulic Roller Swinging Follower
- Intake Duration At 0.050 Inch Lift (DEG): 234 Degree
- Exhaust Duration At 0.050 Inch Lift (DEG): 238 Degree
- Intake Centerline Angle (DEG): 109 Degree
- Intake Valve Lift (IN): 0.55 Inch
- Exhaust Valve Lift (IN): 0.55 Inch
- Lobe Separation Angle (DEG): 113 Degree
- RPM – Low: 1800
- RPM – High: 5800
- Advertised Intake Duration (DEG): 270 Degree
- Advertised Exhaust Duration (DEG): 274 Degree
- Grind Number: XE270AH
- Computer-Controlled Compatible: No
Features & Benefits:
- Their Aggressive Lobe Design Produces Better Throttle Response And Top End Horsepower Than Other Cams With The Same Duration
- Also Deliver Increased Engine Vacuum
- Modern And Aggressive Roller Profiles
- Reduced Friction And Low Maintenance
- Limited 1 Year Warranty
About Product:
Xtreme Energy Cams™ are designed to take advantage of the latest improvements in valve train components and the newest developments in camshaft lobe design. Their aggressive lobe design produces better throttle response and top end Horsepower than other cams with the same duration. Xtreme Energy Cams™ also deliver increased engine vacuum. Can be used in any street or street/strip application where both throttle response and top end Horsepower are desired. Because these camshafts use aggressive lobe designs, it is imperative that valve springs, locks, retainers, pushrods, lifters, rocker arms and other related components be matched to the camshaft.
Additional information
| Weight | 14 lbs |
|---|---|
| Dimensions | 25.55 × 6.05 × 3.17 in |
| Brand | COMP CAMS |
| Manufacturer Part Number | 102600 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 2,134 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
