Comp Cams Pushrod Guide Plate, For Use with Ford 289-351W Engines or for Use with 265-400 Cubic Inch Chevrolet Small Block Engines – 4835-8
$109.16

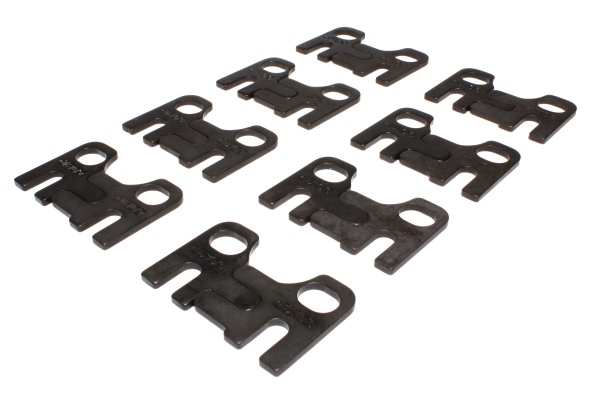

Comp Cams Pushrod Guide Plate – 4835-8
Description
Pushrod Guide Plate; For Use With Ford 289-351W Engines or For Use With 265-400 Cubic Inch Chevrolet Small Block Engines; 5/16 Inch Pushrod; 7/16 Inch Stud Diameter; Flat Adjustable; Black Oxide; Set Of 8
Attributes:
- Engine Compatibility: Ford Small Block V8 289-351 Cubic Inch/ Chevy Small Block V8 262-400 Cubic Inch
- Pushrod Size (IN): 5/16 Inch
- Stud Diameter (IN): 7/16 Inch
- Plate Style: Flat Adjustable
- Finish: Black Oxide
- Material: Steel
- Quantity: Set Of 8
Features & Benefits:
- Small Block Chevy And Ford Applications Designed For Use On Cylinder Heads With Relocated Intake Ports
- Big Block Chevy Applications Designed For Use With RHS Or Other Aftermarket Heads With Relocated Intake Ports
- Created From Precision Die-Stamped And Heat-Treated Steel Material For A Closer Setting And Improved Durability
- Feature An Interlocking Design That Enables A Reliable And True Adjustment In The One Axis Needed For Most Valves, This Prevents Issues Associated With Prying Or Cutting The Guide Plate
- Limited 1 Year Warranty
About Product:
Cylinder head modification can net some serious performance gains. However, once the valve centerlines have been moved, you sometimes have to bend or cut stock guide plates in order to compensate. To solve this common dilemma with aftermarket heads, COMP Cams® recently developed an all-new line of Two-Piece Adjustable Guide Plates for high performance Small Block Chevy V8 and 90 Degree V6, along with Small Block Ford V8, engine applications. In addition, these guide plates can easily be adjusted inward or outward for maximum convenience. And for more stability, they can be finish-welded once the final adjustments are made. These performance guide plates work with all RHS® cylinder heads, as well as other popular cylinder head brands in the performance aftermarket, both stock and those that feature relocated intake ports.
Additional information
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 3.99 × 2.4 × 1.83 in |
| Brand | COMP CAMS |
| Manufacturer Part Number | 4835-8 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 12,665 vehicles.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| Loading fitment... | ||||
