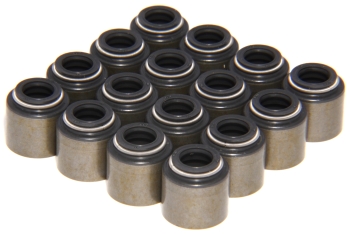

Comp Cams Valve Stem Seal, Positive Stop, Metal Body Viton, 11/32 Inch Valve Stem Diameter, 0.530 Inch Guide Outside Diameter – 518-16
$47.09
Comp Cams Valve Stem Seal, Positive Stop, Metal Body Viton – 518-16
Description
Valve Stem Seal; Positive Stop; Metal Body Viton; 11/32 Inch Valve Stem Diameter; 0.530 Inch Guide Outside Diameter; 0.575 Inch Outside Diameter; Set of 16
Attributes:
- Type: Positive Stop
- Material: Metal Body Viton
- Outside Diameter: 0.575 Inch
- Valve Stem Diameter: 11/32 Inch
- Valve Guide Diameter: 0.53 Inch
- Quantity: Set Of 16
Features & Benefits:
- COMP Cams ® Product Will Perform To The Highest Of Standards
- Highest Performing Product
- Provide Superior Performance And Reliability
- Easy Installation
- Limited 1 Year Warranty
About Product:
COMP Cams ® offers a complete line of valve stem oil seals, from the stock GM o-ring to the positive-stop PTFE seal. These seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The o-ring seals use the standard retainer and oil splash shield. The umbrella seal is normally used when a larger-than-stock diameter spring is used, and in the case of a double spring, the positive-stop PTFE seal is used. Smaller diameter Viton seals are also available for triple spring applications. Both the o-ring and the umbrella seals require no machining, but when using the PTFE seal it is necessary to disassemble the heads and machine the top of the guide with a special cutter.
Additional information
| Weight | 0.25 lbs |
|---|---|
| Dimensions | 6 × 4 × 0.5 in |
| Brand | COMP CAMS |
| Manufacturer Part Number | 518-16 |
