Currie Axle Shaft, 29 Inch Length – Cut to Fit, 31 Spline, 5 X 4-1/2 Inch for Ford and 5 X 4-3/4 Inch for Chevy Dual Drilled Bolt Pattern – CE-CTFLB29
$340.50
Currie Axle Shaft, 29 Inch Length – Cut to Fit, 31 Spline – CE-CTFLB29
Description
Axle Shaft; 29 Inch Length – Cut To Fit; 31 Spline; 5 x 4-1/2 Inch For Ford And 5 x 4-3/4 Inch For Chevy Dual Drilled Bolt Pattern; Alloy Steel; Single; With Stud Set/ Wheel Bearing/ Seals/ Heavy-Duty Retaining Plates
Attributes:
- Carrier Type: Ford 9 Inch
- Length (IN): 29 Inch
- Inner Axle Spline Count: 31
- Material: Alloy Steel
- Number Of Lug Nuts: No Lug Nuts
- Includes Bearings: Yes
- Includes Seals: Yes
- Includes Wheel Studs: Yes
Features & Benefits:
- All CTF Axles Feature High Performance Induction Heat Treated Forged Alloy Steel Construction
- 9 Inch Axles Provide You With 4 Axle Lengths
- Dual Drilled With Ford And Chevy Wheel Bolt Patterns
- Single 31-Spline Induction Heat Treated Axle
- Limited 1 Year Warranty
About Product:

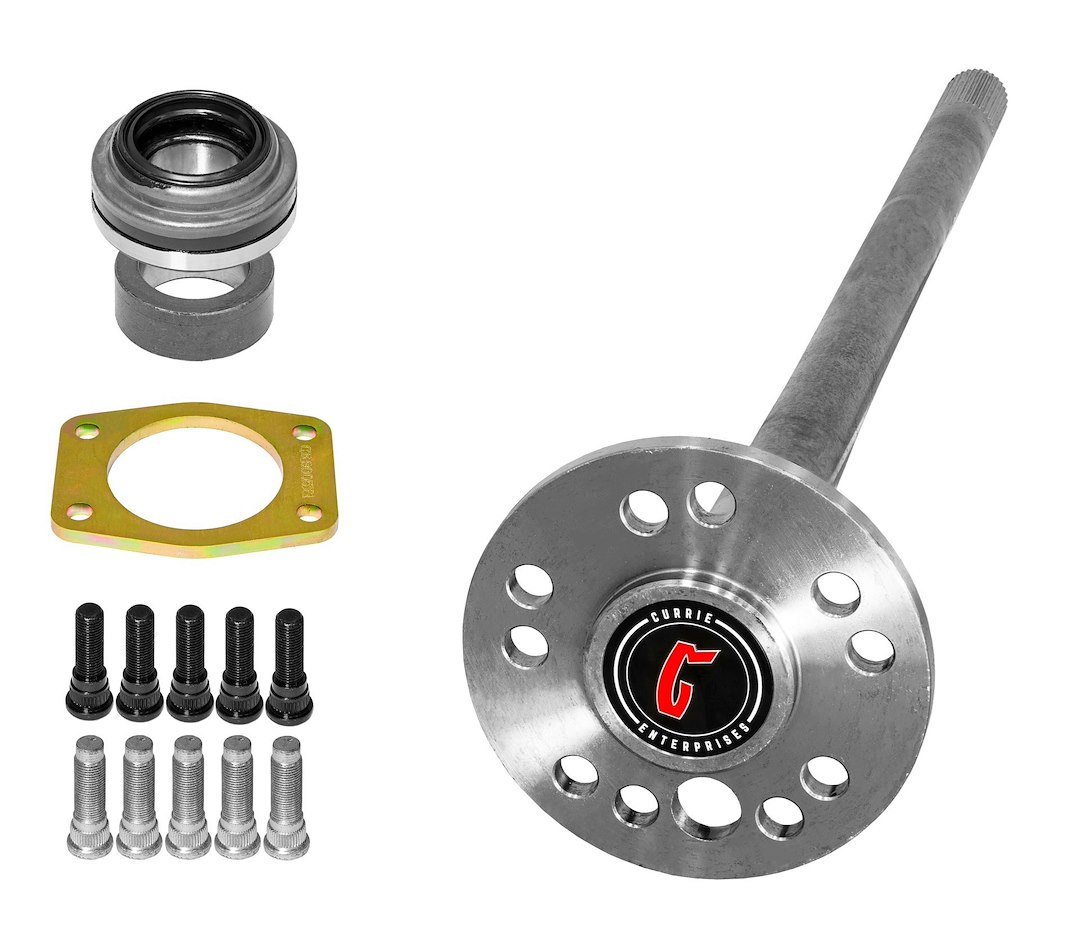

Currie’s 31 spline CTF (Cut To Fit) 9 Inch axles provide you with 4 axle lengths, all with 4 Inch of spline length. Up to 3 Inch of this spline length may be cut off so that you may attain an axle length anywhere between 23 Inch and 35 Inch and still have adequate spline engagement into your 3rd. member. All CTF axles feature high performance induction heat treated forged alloy steel construction, and are ABCS (Aftermarket Brake Configuration Standard) compliant. Wheel bolt patterns are dual drilled for 5 on 4-1/2 Inch Ford and 5 on 4-3/4 Inch Chevy, and an access hole is drilled. All CTF axles come with a full installation package which comes with one set of five 1/2 Inch-20 Ford style wheel studs, one set of five 7/16 Inch-20 Chevy style wheel studs, one set-20 tapered roller bearing with race, seal, and collar, and one heavy-duty late model large bearing style retainer plate.
Additional information
| Weight | 250 lbs |
|---|---|
| Dimensions | 72 × 22 × 20 in |
| Brand | CURRIE |
| Manufacturer Part Number | CE-CTFLB29 |
