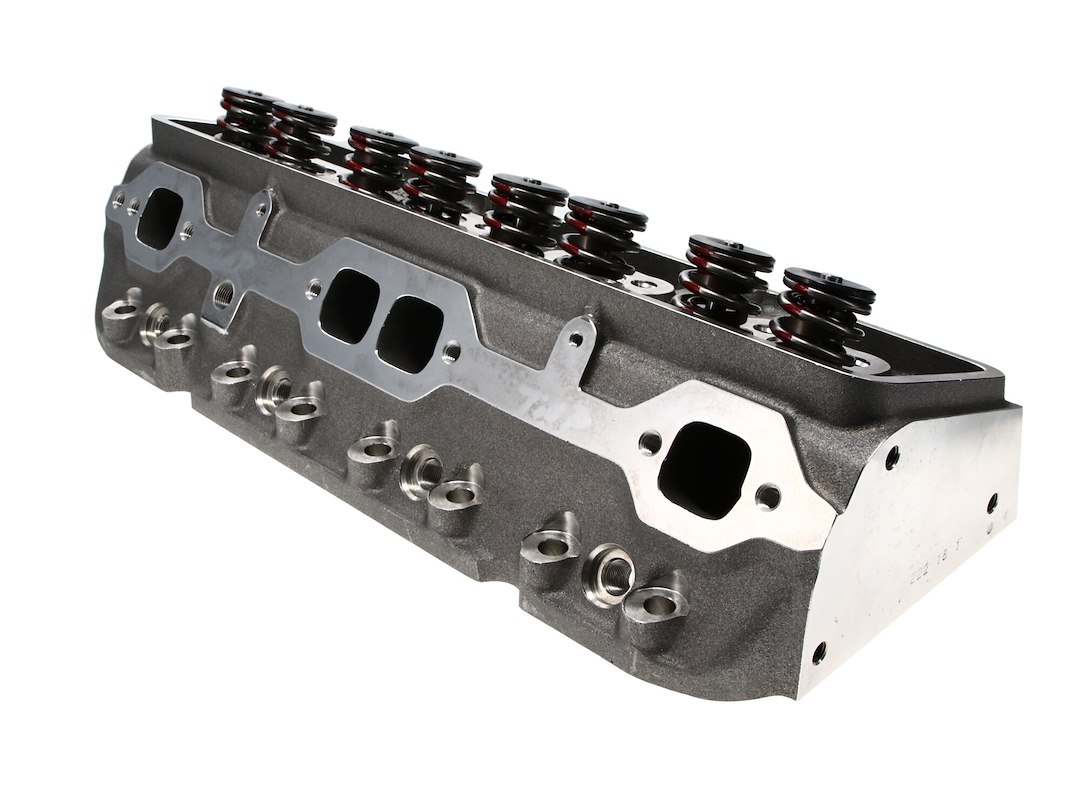

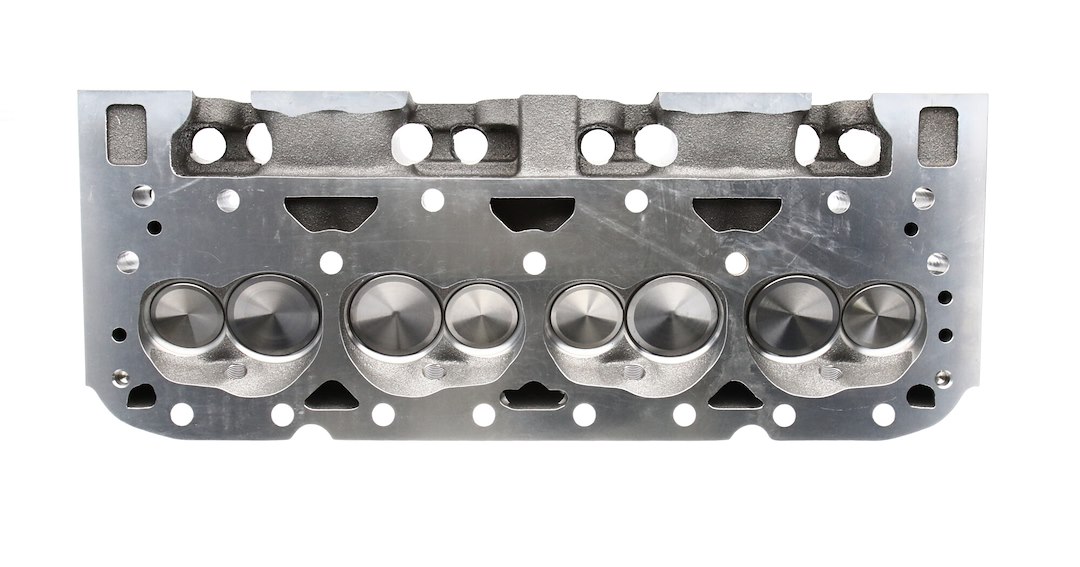

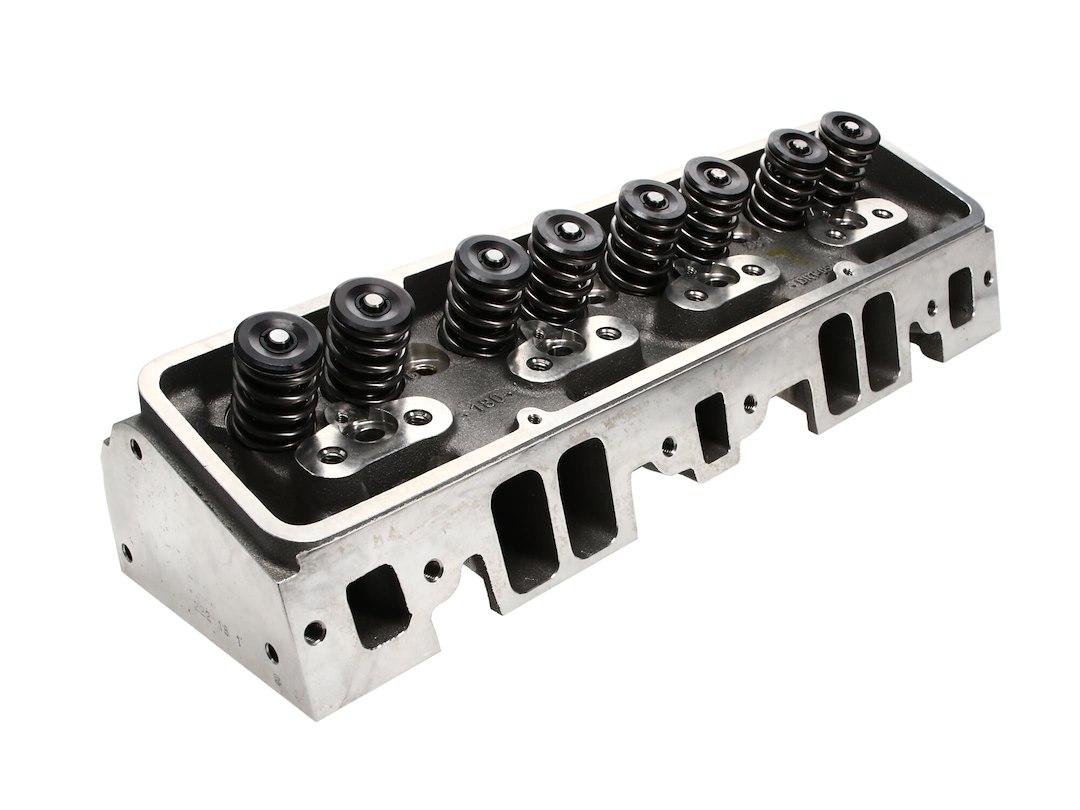

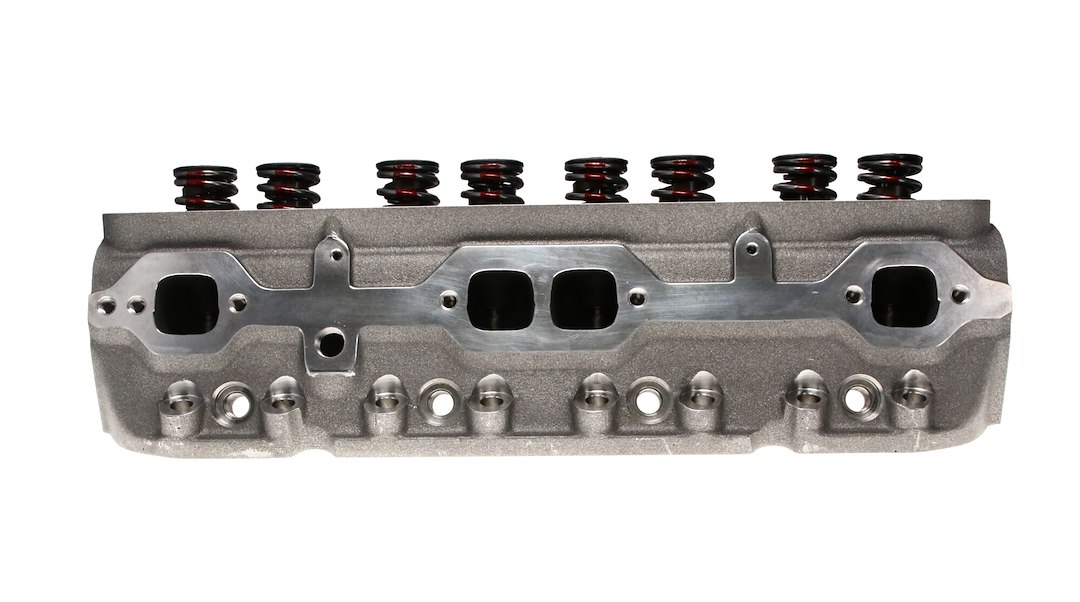

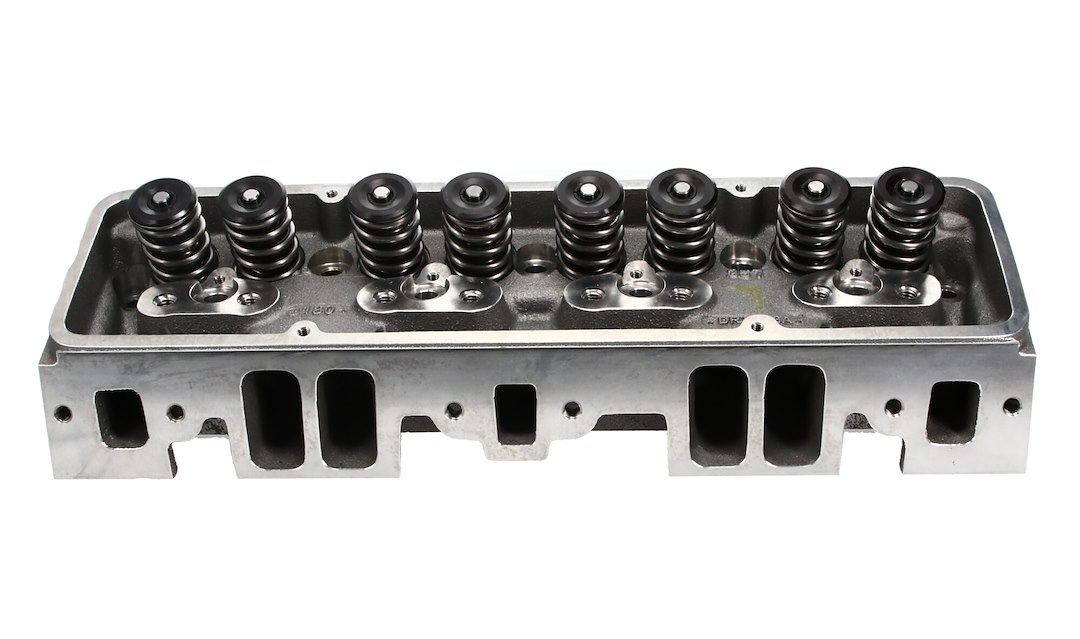

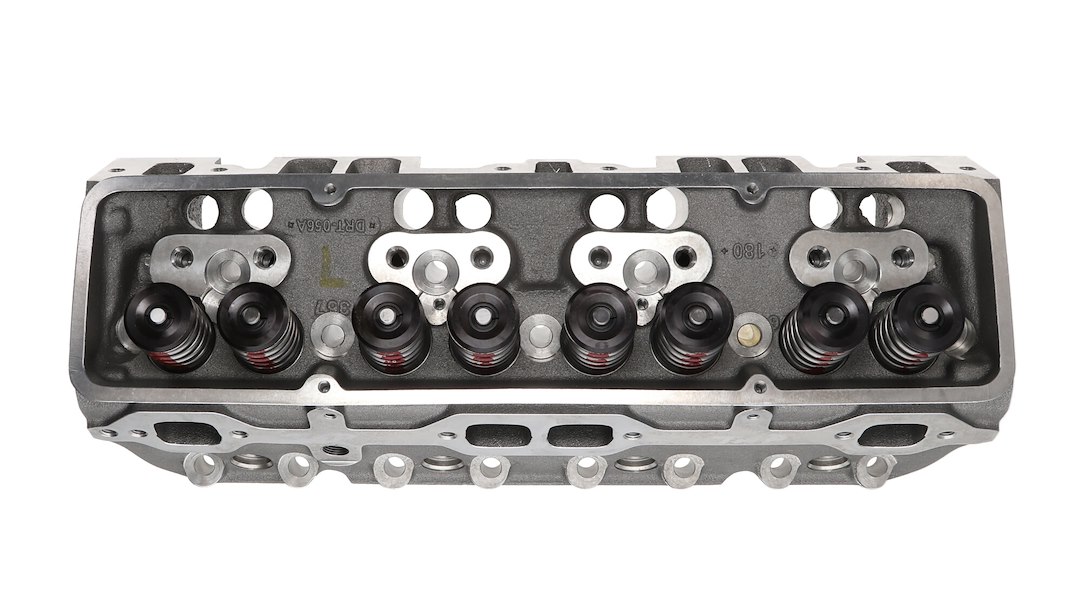

Name: Dart Cylinder Head, Shp, Assembled, For Use with Chevy Small Block Engines, Aluminum, 180 Cc Rectangle Port, 64 Cc Chamber Volume - 126121
Brand: DART
SKU: KYS-D1C126121
Price: 555.59 USD
Availability: InStock

Description

Cylinder Head; SHP; Assembled; For Use With Chevy Small Block Engines; Aluminum; 180 CC Rectangle Port; 64 CC Chamber Volume; 2.02 Inch Intake Valve/1.60 Inch Exhaust Valve; 1.25 Inch Hydraulic Flat Tappet Spring Diameter; 0.510 Inch Valve Spring Maximum Lift; Single

Attributes:

Condition: New
Engine Compatibility: Chevy Small Block Engines
Style: Assembled
Finish: Natural
Material: Aluminum
CNC-Machined: No
Combustion Chamber Volume (cc): 64 Cubic Centimeter
Intake Runner Volume (CC): 180 Cubic Centimeter
Exhaust Runner Volume (CC): 70 Cubic Centimeter
Port Shape: Rectangular
Intake Port Location: Standard
Exhaust Port Location: Standard
Intake Valve Diameter (IN): 2.020 Inch
Exhaust Valve Diameter (IN): 1.600 Inch
Includes Valves: Yes
Spark Plug Angle: Straight
Rocker Arm Nut Thread Size: 3/8 Inch-24
Includes Rocker Arm Studs: Yes
Valve Lock Type: 7 Degree
Valve Stem Seal Type: Positive Stop
Valve Guide Material: Manganese Bronze
Number Of Springs Per Valve: Single
Valve Seats Machined: Yes
Steam Holes Drilled: No
Machined For O-Ring: No
Includes Guideplates: Yes
Includes Damper Spring: No

Features & Benefits:

SHP Head’s Precision Cast Ports Are Designed To Offer Excellent Flow And Power Without The Need For CNC Porting
Optimized Chambers Increase Combustion Efficiency
Multi-Angle Intake Seats And Radiused Exhaust Seats Dramatically Increase Performance
Premium Alloys Are Used For Maximum Strength And Durability
Manganese Bronze Valve Guides Increase The Life Of The Head
Limited 6 Month Warranty

About Product:
Dart’s SHP (Special High Performance) 23 Degree 180 Cubic Capacity cylinder heads provide an affordable option to those looking for the weight savings of an Aluminum head for a street performance engine.
