Name: Deatschwerks Fuel Surge Tank, DW5.5L Series, For Use with DW100/ DW200/ DW300/ DW400 Fuel Pumps, 5.5 Liter Capacity - 6-000-55ST
Brand: DEATSCHWERKS
SKU: KYS-DWK600055ST
Price: 535.50 USD
Availability: InStock

Description

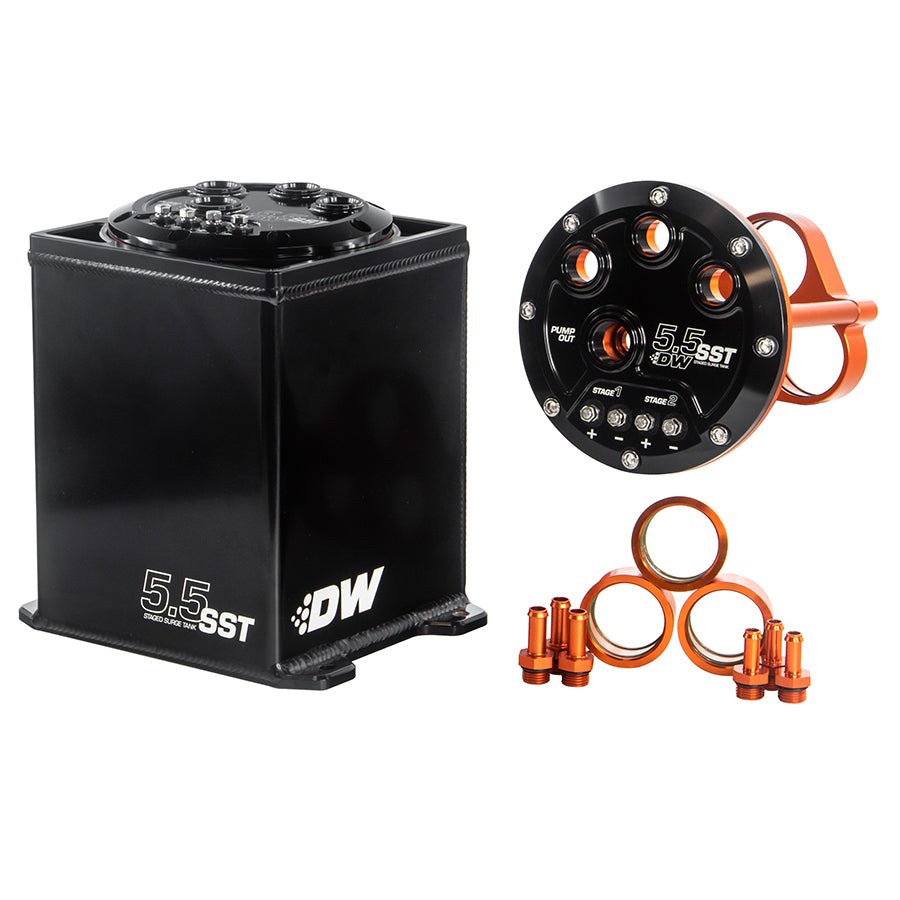

Fuel Surge Tank; DW5.5L Series; For Use With DW100/ DW200/ DW300/ DW400 Fuel Pumps; 5.5 Liter Capacity; 171.1 Millimeter Length x 171.1 Millimeter Width x 235.5 Millimeter Height; Aluminum; With Pump Hanger Assembly/ 5/16 Inch Hose Barb To 6AN O-Ring Fittings/ 3/8 Inch Hose Barb To 6AN O-Ring Fittings/ 39 Millimeter Pump Adapter Sleeves/ 6AN O-Ring Plug Fittings/ Ring Terminals

Attributes:

Compatibility: DW100/ DW200/ DW300/ DW400 Fuel Pumps
Capacity: 5.5 Liter
Dimensions: 6.73 Inch Length X 6.73 Inch Width X 9.27 Inch Height
Finish: Anodized
Color: Black
Material: Aluminum
Includes: 5/16 Inch Hose Barb To 6AN O-Ring Fittings/ 3/8 Inch Hose Barb To 6AN O-Ring Fittings

Features & Benefits:

Configurable For Single, Dual, Or Triple Pumps
Compatible With 39 Millimeter And 46 Millimeter Pumps
Single Or Dual Stage Capability
High Amperage Threaded Stainless Steel Terminals
Limited 3 Year Warranty

About Product:
DW’s staged surge tank is engineered to provide massive amounts of fuel flow reliably and consistently for racing applications. The DW 5.5 Liter Staged Surge Tank System features the functionality of traditional surge tanks, with increased flexibility. This has been achieved by moving the pumps inside with a merged single point outlet that allows the use of single, dual, or triple pump configurations to meet fueling needs from 500 Horsepower to 2000 Horsepower
