Derale Cooling Fan, Electric, 2400 Cubic Feet Per Minute High Speed/ 1800 Cubic Feet Per Minute Low Speed – 16822
$457.96
Derale Cooling Fan, Electric – 16822
Description
Cooling Fan; Electric; 2400 Cubic Feet Per Minute High Speed/ 1800 Cubic Feet Per Minute Low Speed; 17 Inch Diameter Fan/ 22-1/4 Inch Width x 17-5/8 Inch Height x 3 Inch Depth; 11 Blade; Puller; With Aluminum Shroud
Attributes:
- Condition: New
- Type: Electric
- Diameter: 17 Inch
- Height: 17-5/8 Inch
- Width: 22-1/4 Inch
- Depth: 3 Inch
- Maximum CFM: 2400 Cubic Feet Per Minute
- Maximum RPM: 2400 RPM
- Rotation Direction: Puller
- Fuse Rating: 30 Amp
- Controller Type: Thermostat
- Amperage Draw: 23.5 Amp/ 17.4 Amp
- Number Of Blades: 11
- Blade Color: Black
- Blade Material: Plastic
- Shroud Material: Aluminum
- Voltage: 12 Volt
Features & Benefits:
- Powerful Primary Cooling Fan Eliminates Fuel And Horsepower Robbing Belt Driven Fans
- High Output 265 Watt 2 Speed Motor
- Designed For Maximum Performance At High Static Pressure Loads For Effective Cooling
- Ultra Quiet Patented Skewed Blade Design
- Puller (Engine Side) Applications Only
- Aircraft Quality Natural Satin Aluminum Finish Can Be Polished, Painted Or Anodized

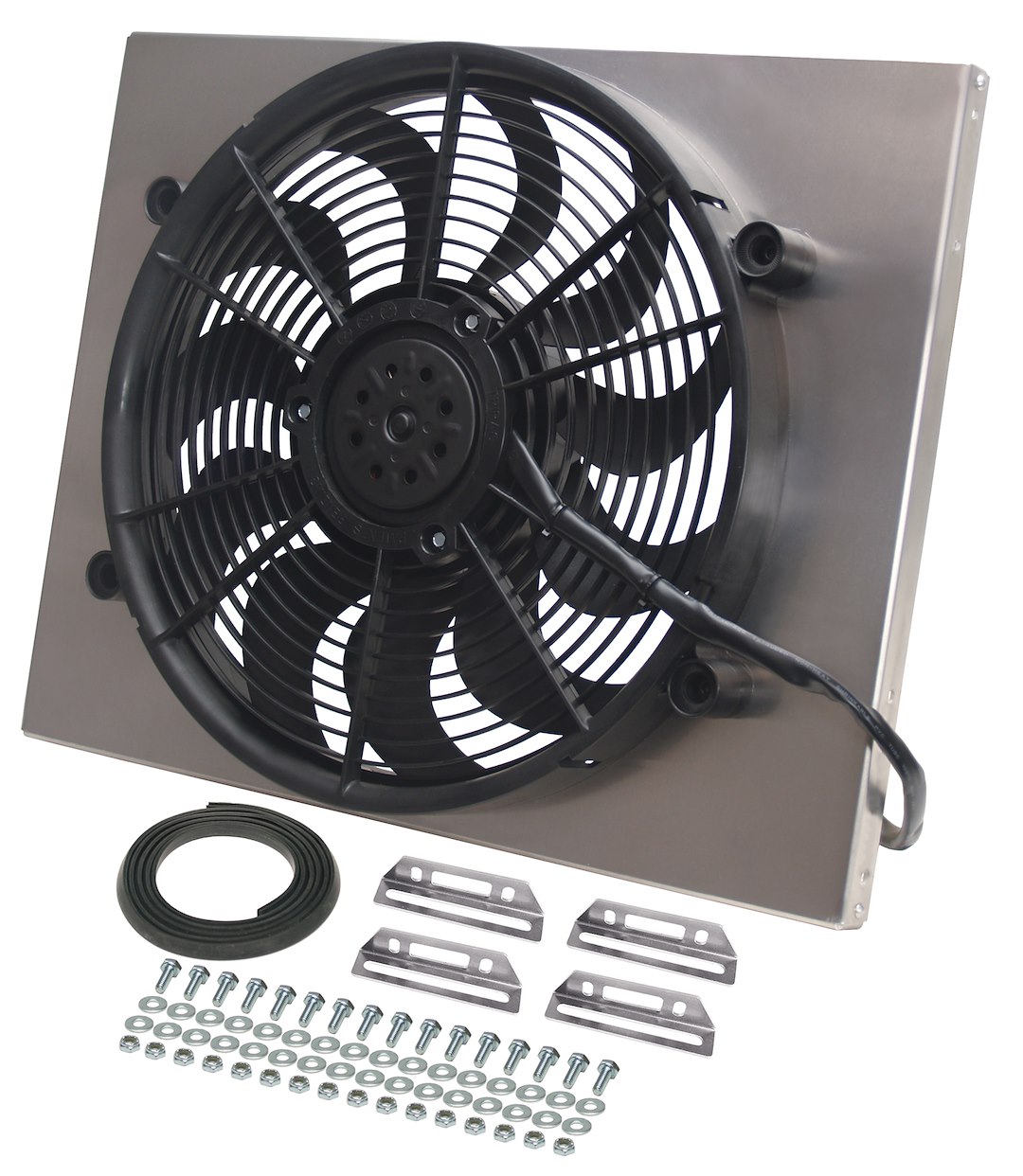

- Multiple Mounting Options. All Include Mounting Kit With Illustrated Installation Instructions
- Limited 1 Year Warranty
About Product:

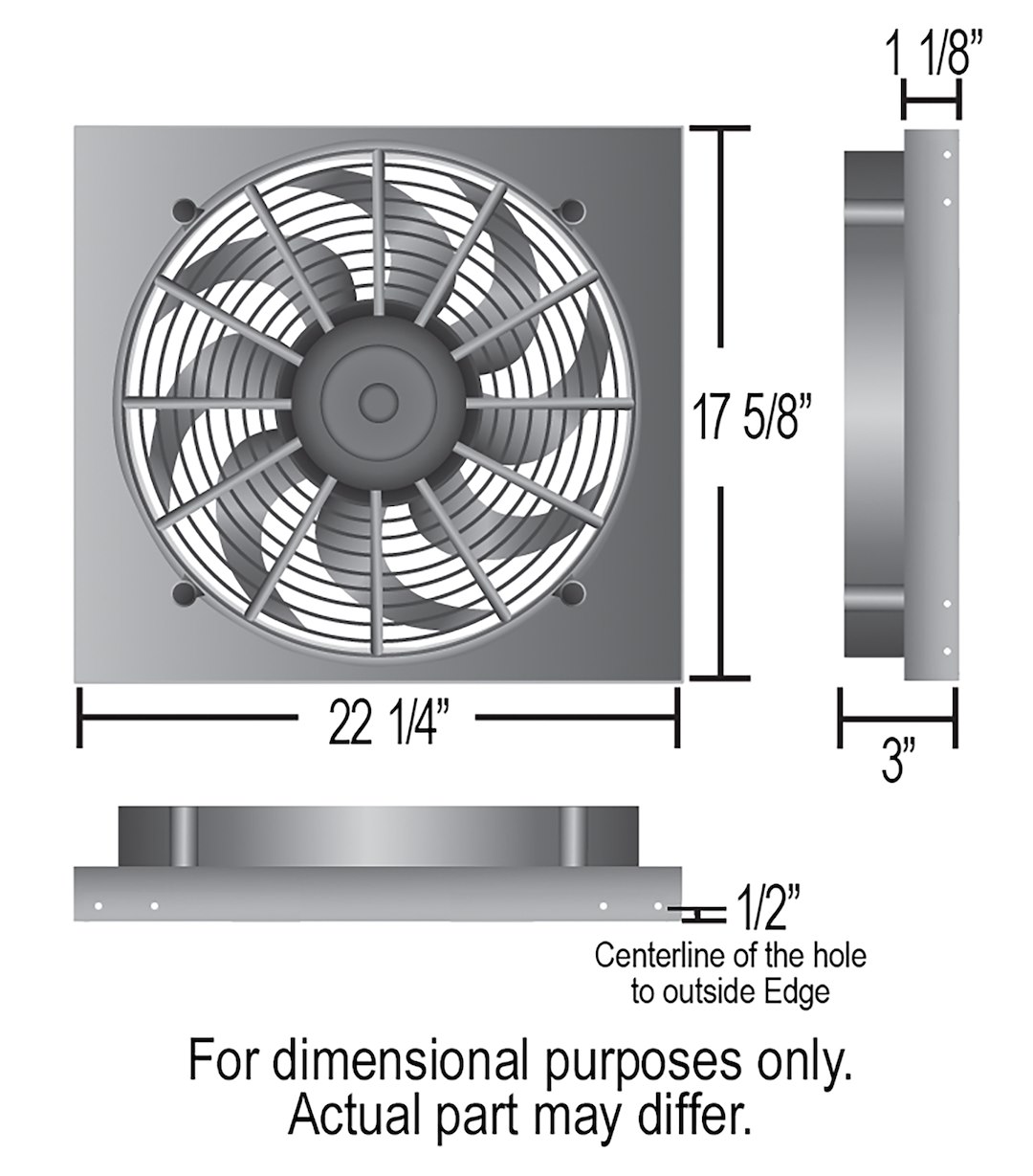

This High Output Single RAD Fan Powerpack is part of the HO Aluminum Shrouded Fan Series designed with popular applications in mind. This assembly measures 22 1/4 Inch wide by 17 5/8 Inch top to bottom and only 3 Inch thick overall to offer a precision fit. The raw aluminum shroud gives the user the freedom to polish, anodize, paint, or simply leave it natural to create a truly custom look for an affordable price. The 17 Inch high output two-speed fan is one of the best in our line-up offering 2400 CFM when on high to create the most airflow possible in a compact size.
Additional information
| Weight | 12.25 lbs |
|---|---|
| Dimensions | 28 × 20.38 × 5.25 in |
| Brand | DERALE |
| Manufacturer Part Number | 16822 |
