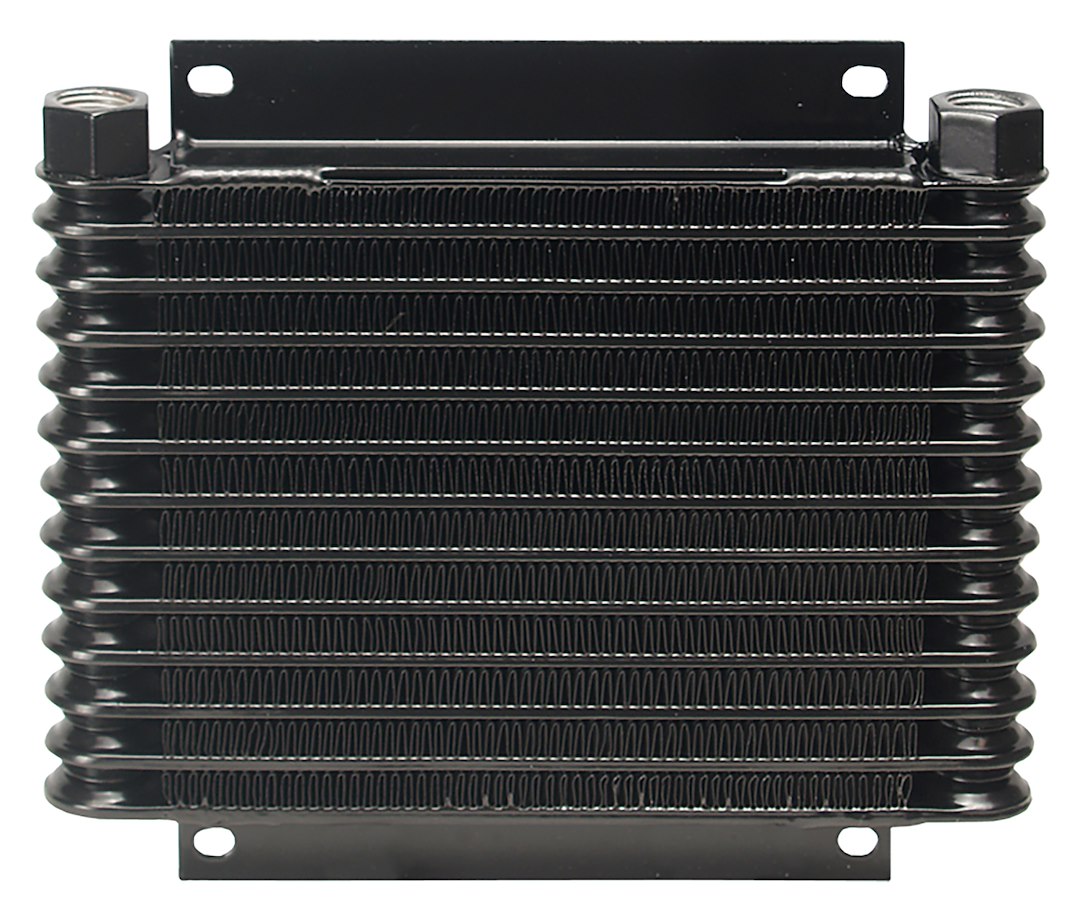

Derale Fluid Cooler, Series 9000, For Transmission Fluid, 10-1/8 Inch Width X 8-7/8 Inch Height X 1-1/4 Inch Depth – 13613
$144.29
Derale Fluid Cooler, Series 9000, For Transmission Fluid – 13613
Description
Fluid Cooler; Series 9000; For Transmission Fluid; 10-1/8 Inch Width X 8-7/8 Inch Height X 1-1/4 Inch Depth; 22000 Pounds Gross Vehicle Weight; NPT Fitting; 1/2 Inch NPT Inlet; 1/2 Inch NPT Outlet; With Hose/ Brass 3/8 Inch Barb Adapter/ Insta-Dapt Radiator Adapter/ Hardware
Attributes:
- Condition: New
- Recommended Use: Automatic Transmission
- Construction: Plate And Fin

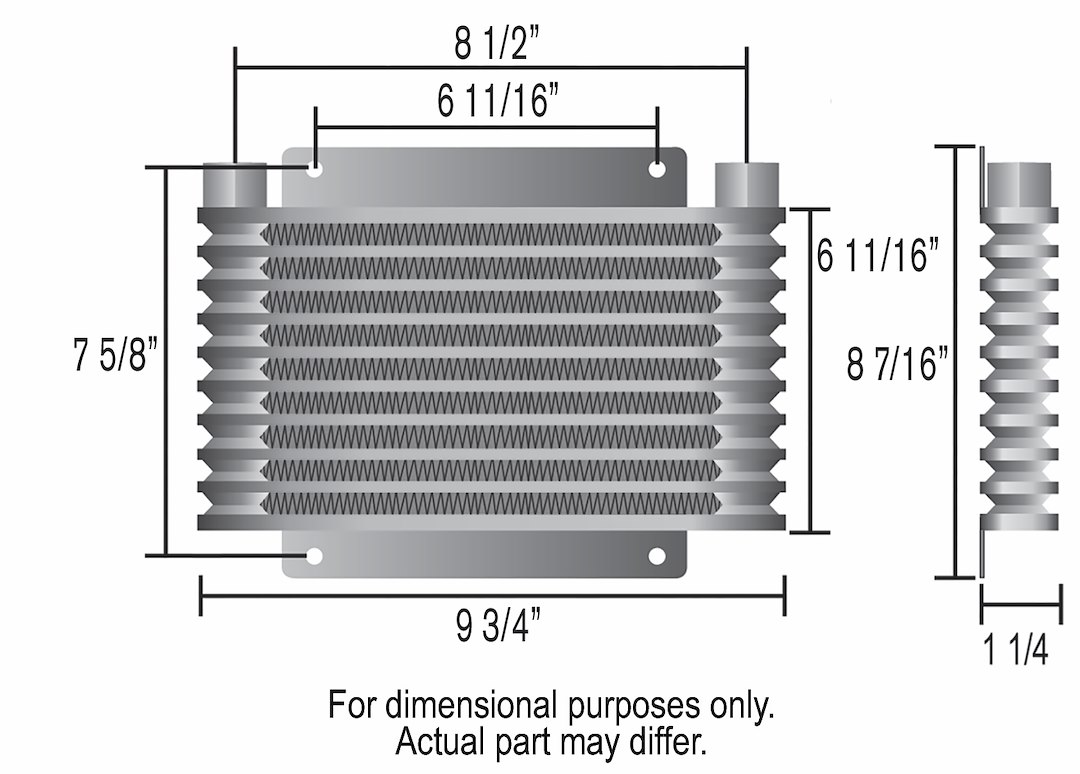

- Overall Height (IN): 8-7/8 Inch
- Overall Width (IN): 10-1/8 Inch
- Overall Depth (IN): 1-1/4 Inch
- Number Of Cooling Rows: 13
- Inlet Attachment: Female Threads
- Inlet Size: 1/2 Inch NPT
- Outlet Attachment: Female Threads
- Outlet Size: 3/8 Inch NPT
- Color: Black
- Material: Aluminum
- With Fan: No
- Fan Control: No Fan
- Core Depth (IN): 1-1/4 Inch
- Fan CFM Rating: No Fan
- Fan Diameter: No Fan
- Fan Amp Draw: No Fan
- With Mounting Hardware: Yes
Features & Benefits:
- Prevents Heat Related Transmission Failures
- Dramatically Increases Transmission Life
- Improves Transmission Performance
- Sturdy Furnace Brazed Aluminum Construction
- 1-1/4 Inch Turbulators Maximize Cooling And Minimize Pressure Drop
- New 1/2 Inch NPT Female Cooler Fittings

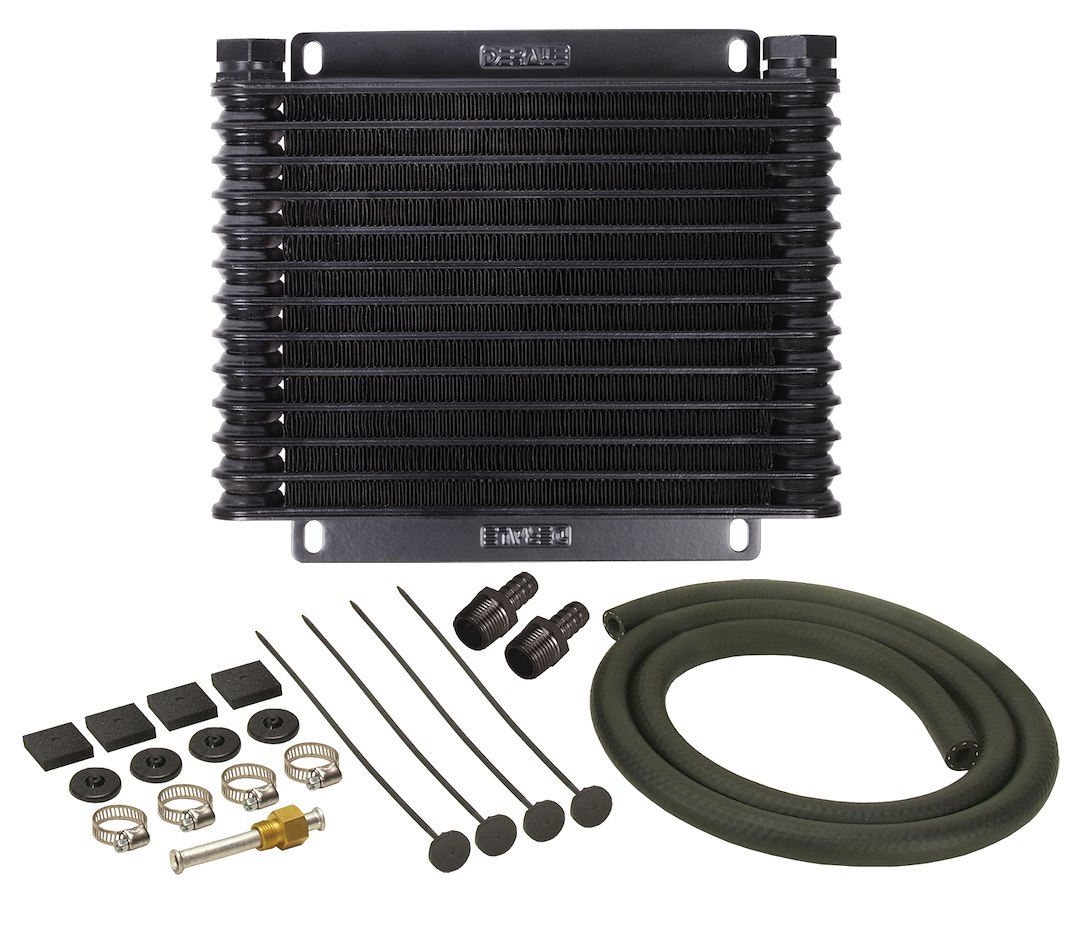

- Includes Brass Hose Barb Adapters, High Pressure/High Temperature Hose, Insta-Dapt Radiator Adapter And Mounting Hardware
- Limited 1 Year Warranty
About Product:

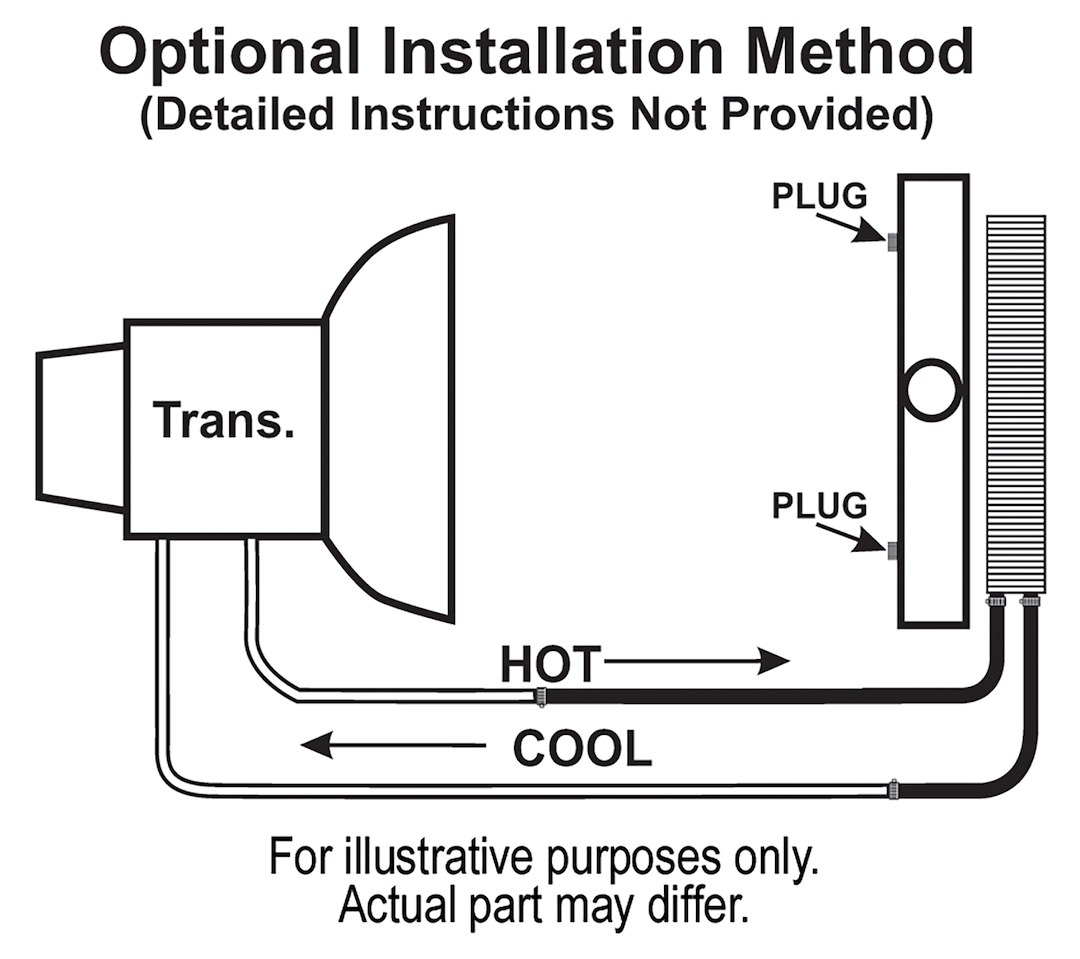

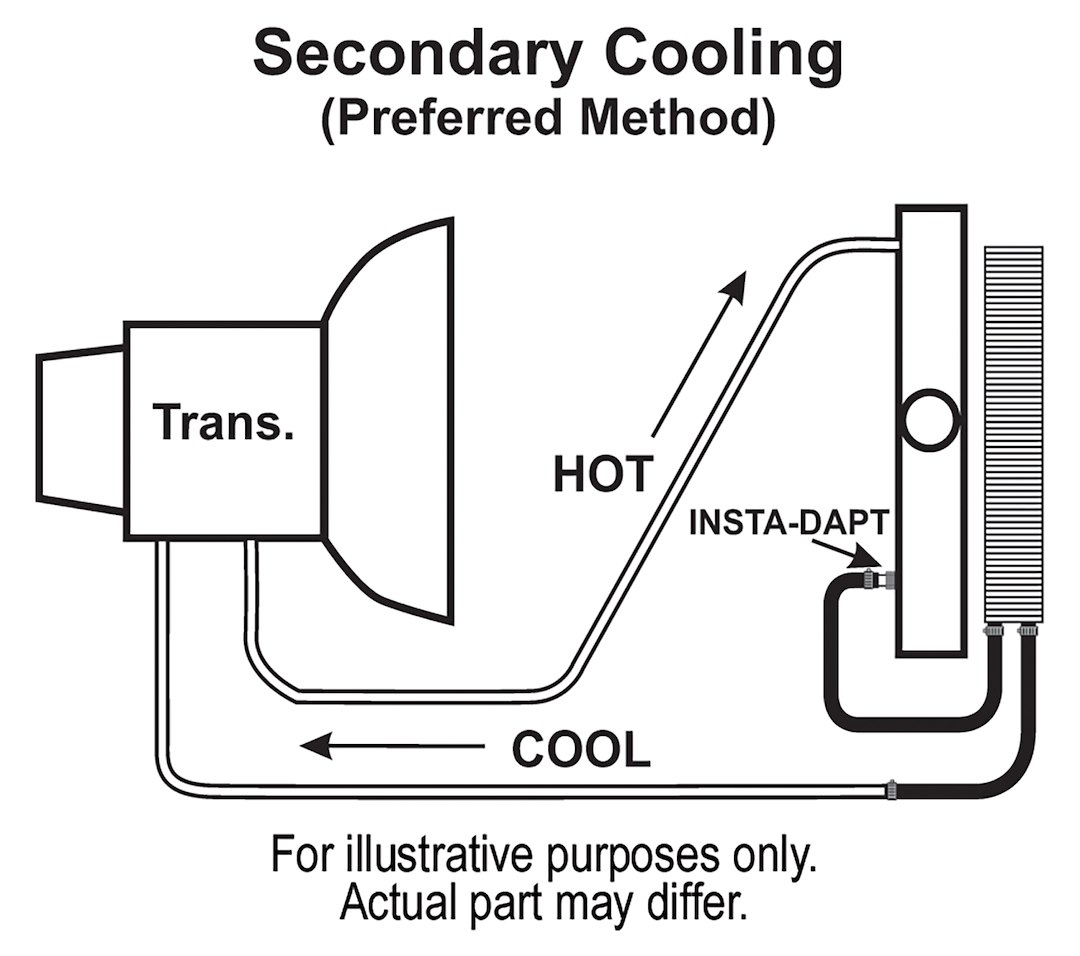

A step up from tube and fin type coolers, this plate and fin cooler features strong furnace brazed construction, 1-1/4 Inch wide plates and embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat related transmission failures, and improve shifting performance. Built with 1/2 Inch NPT female cooler ports and includes 1/2 Inch NPT X 3/8 Inch hose barb adapters. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16 Inch transmission cooler lines.
Additional information
| Weight | 9.99 lbs |
|---|---|
| Dimensions | 18.63 × 13 × 2.13 in |
| Brand | DERALE |
| Manufacturer Part Number | 13613 |
