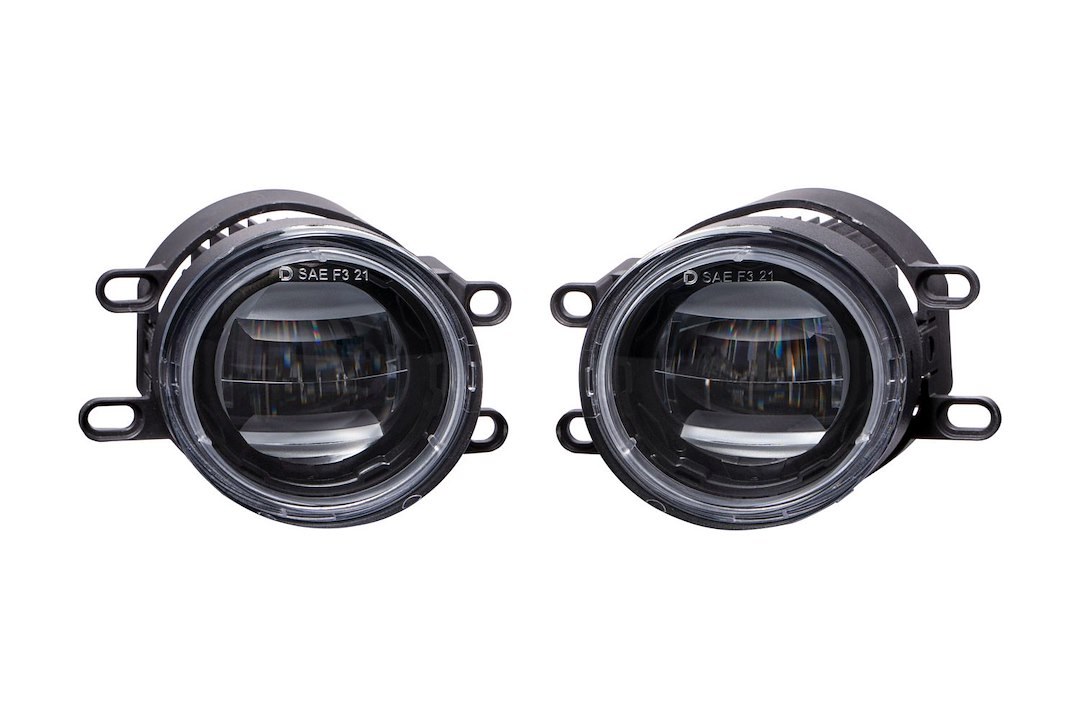

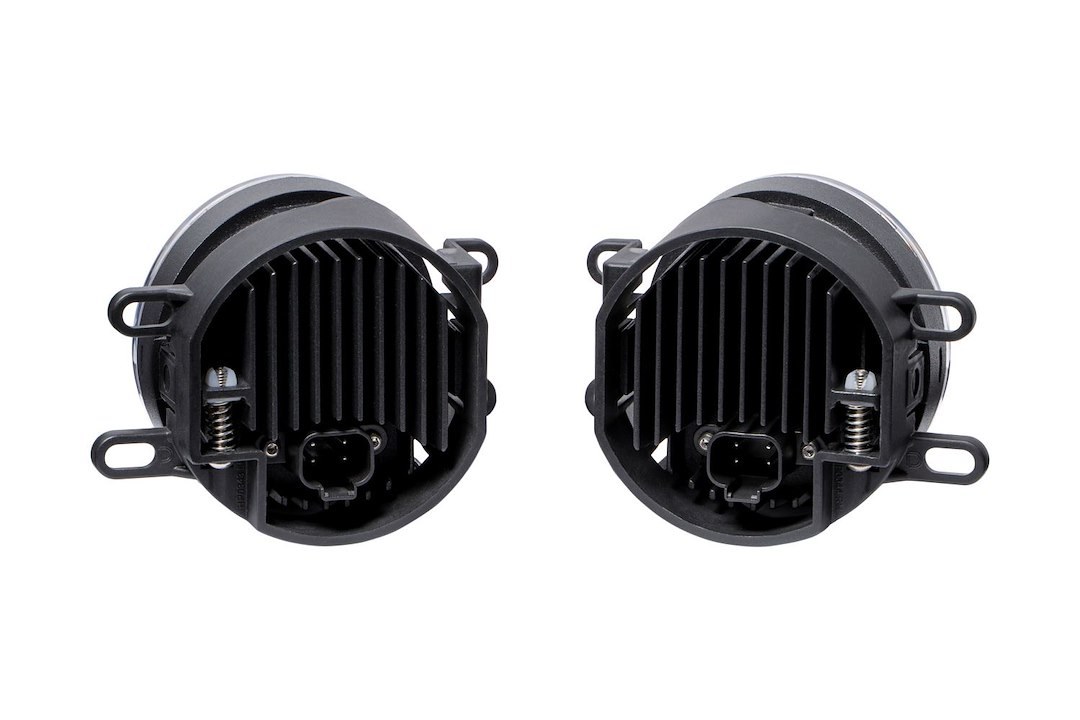

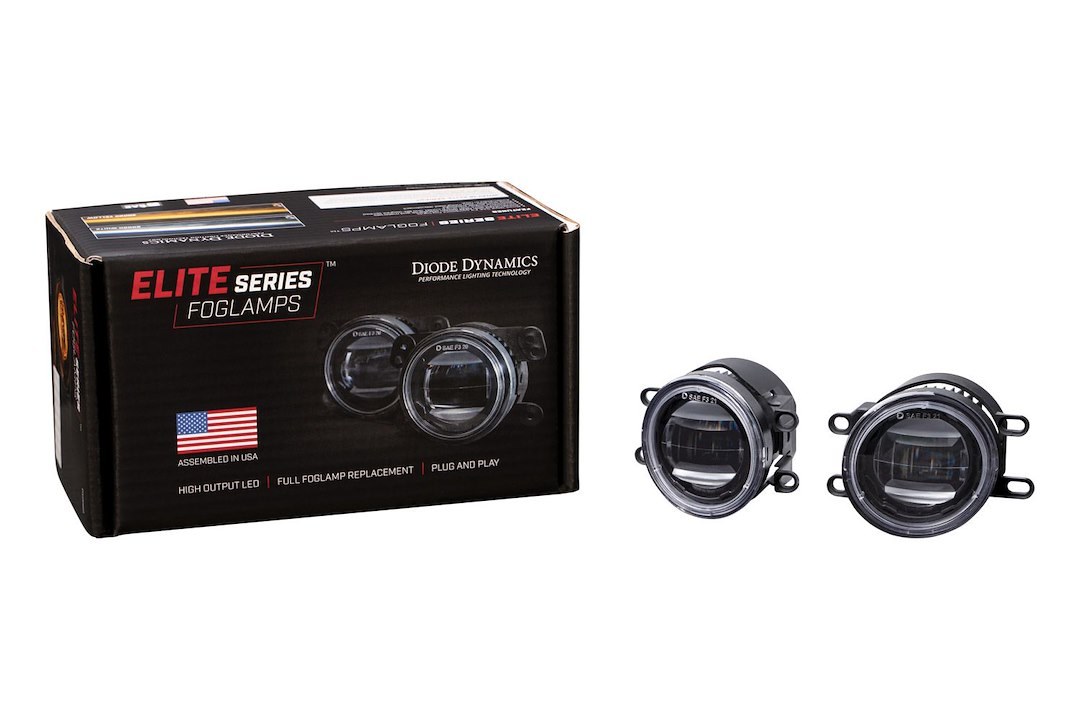

Diode Dynamc Driving/ Fog Light, Elite Series, LED Bulb, Clear Bulbs, 3.6 Inch Round, OEM-Grade Replacement – DD5134P
$238.70
Diode Dynamc Driving/ Fog Light, Elite Series, LED Bulb, Clear Bulbs – DD5134P
Description

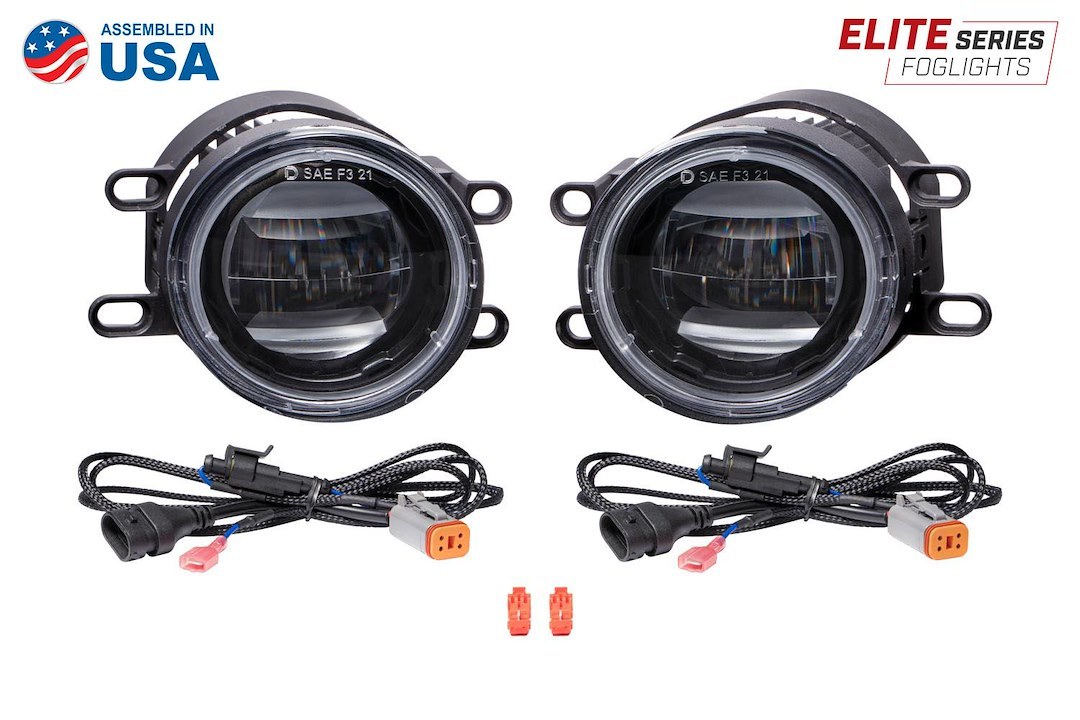

Driving/ Fog Light; Elite Series; LED Bulb; Clear Bulbs; 3.6 Inch Round; OEM-Grade Replacement; 17 Watt Bulbs Amp Draw 1.3 AMP At 13.2 Volt; 80 Degree Fog Beam; 1850 Lumens; UV Coated Clear Polycarbonate Lens; Amber Backlight Functionality; Black Aluminum Casting Housing; With Two Elite Series Type B Fog Lamps/ Two H11 4-Pin DT Backlight Tap Wires/ Two T-Taps And Mounting Guide
Attributes:
- Shape: Round
- Beam Type: 80 Degree Fog Beam

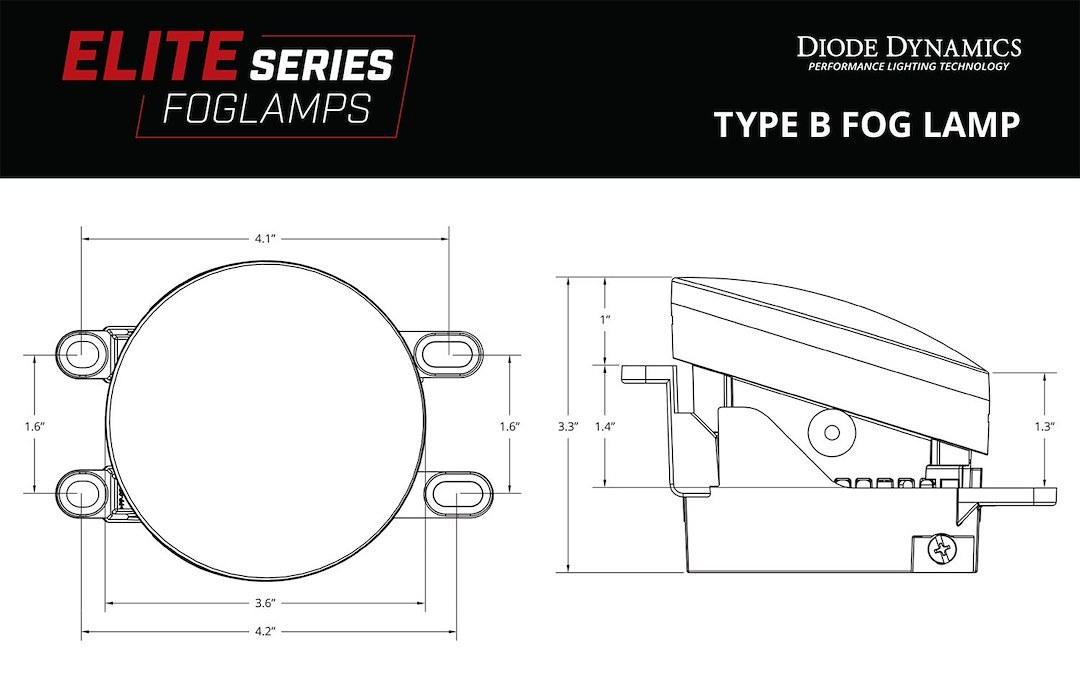

- Diameter: 3-9/16 Inch
- Height/ Width: Not Applicable
- Bulb Type: LED
- Light Color: White
- Quantity: Set Of 2
- Universality: Semi-Universal
- Depth: 3-5/16 Inch
- Wattage: 17 Watt
- Voltage Rating: 9 To 16 Volt
- Mounting Style: Surface Mount
- Ampere Rating At 12 Volts: 1.3 Amp
- Lumens: 1850 Lumens
- Bulb Specifications: White LED Bulbs
- Lens Material: Polycarbonate
- Housing Color: Black
- Housing Material: Aluminum
- Includes: With 2 Elite Series Type B Fog Lamps/ 2 H11 4-Pin DT Backlight Tap Wires/ 2 T-Taps/ Mounting Guide
- Estimated Install Time (Hours): 1.5
Features & Benefits:
- High Performance OEM Grade Replacement
- Custom Engineered Optic Provides Extremely Wide, Intense Light Output
- Distinctive Integrated Amber Backlight
- Road Legal Fog Light, SAE F3 Compliant
- Plug And Play Main Beam, No Modification Needed
- Engineered And Assembled In USA
- Limited 8 Year Warranty
About Product:
Factory fog lights are built to meet minimum output requirements. Every aftermarket design available provides similar lackluster performance, but with an LED. The focus has been on LED appearance, not increased output. There has never been an aftermarket fog light designed from the ground up for performance – until now. Introducing the Elite Series Fog Lamps: the first OE-style fog lights that were designed for true performance. With a custom-engineered patent-pending optic, multi-die automotive emitters, and high-power full-copper circuit boards, the Elite Series fog light up to 5 times more output than halogen lamps. With a plug-and-play installation, this is one of the easiest and most effective upgrades you can make to improve your visibility in inclement weather. The Elite Series Fog Lamp is built around a highly-engineered single-piece PMMA lens. This optic was carefully designed using advanced optical simulation software to produce a light pattern that is wider than any other aftermarket fog lamp on the market, with an 80 Degree spread of highly intense light. Even with this extremely wide band of light, the pattern is extremely smooth throughout, with an extremely sharp cutoff to avoid glare to other drivers, including a BMW-style “color flicker” at the very edge of the pattern. Diode Dynamics engineers accomplished all this while still meeting SAE F3 fog light standards, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.
Additional information
| Weight | 2.75 lbs |
|---|---|
| Dimensions | 9 × 5.25 × 5 in |
| Brand | DIODE DYNAMC |
| Manufacturer Part Number | DD5134P |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 1,489 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
