Diode Dynamc Driving/ Fog Light, SS3 Pro, LED Bulb, Clear Lumileds Automotive Grade LED Bulb, 3 Inch Square – DD7558
$518.70
Diode Dynamc Driving/ Fog Light, SS3 Pro, LED Bulb – DD7558
Description

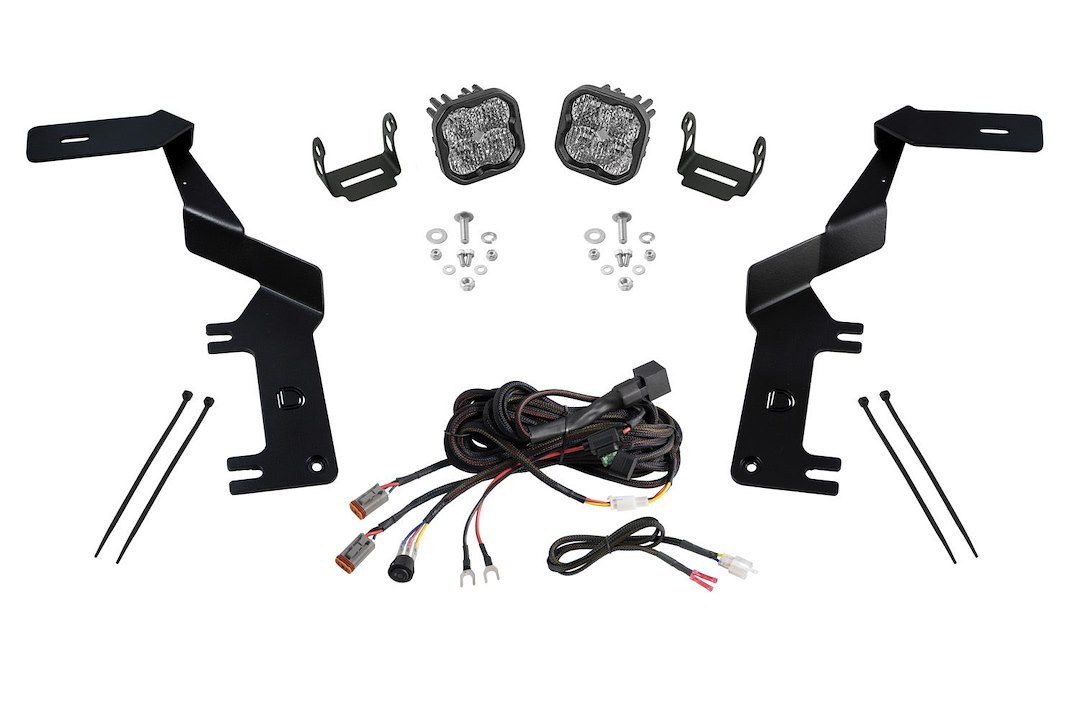

Driving/ Fog Light; SS3 Pro; LED Bulb; Clear Lumileds Automotive Grade LED Bulb; 3 Inch Square; 36 Watt Bulbs Amp Draw 2.7 AMP At 13.2 Volt; Combo Beam Driving And Flood; 5796 Lumens; Clear Polycarbonate Lens; Black Aluminum Casting Housing; Bolt-On To Hood Hinge; Set Of 2; With 2 Ditch Brackets/ 1 Heavy Duty Dual Output 4 Pin Wiring Harness And Mounting Hardware
Attributes:
- Shape: Square
- Beam Type: Combo Beam Driving And Flood
- Diameter: Not Applicable
- Height/ Width: 3 Inch Height X 3 Inch Width
- Bulb Type: LED
- Light Color: White
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Wattage: 36 Watt
- Voltage Rating: 13.2 Volt
- Mounting Style: Bolt-On To Hood Hinge
- Ampere Rating At 12 Volts: 2.7 Amp
- Lumens: 5796 Lumens
- Bulb Specifications: Clear Lumileds Automotive Grade LED Bulb
- Lens Material: Polycarbonate
- Housing Color: Black
- Housing Material: Cast Aluminum
- Includes: With 2 Ditch Light Brackets/ Wiring Harness/ Mounting Hardware
- Waterproof Rating: IP69K Rated
- Estimated Install Time (Hours): 1.5
Features & Benefits:
- Patented TIR Optics Provide Maximum Output And Reduced Glare
- Powder Coated Thick Gauge Stainless Steel Construction
- Low-Profile Design
- Perfect For More Visibility Along The Side Of The Road Or Downrange
- SAE J575 Durability Compliance
- No Drilling Or Cutting Required For Installation
- Limited Lifetime Warranty
About Product:

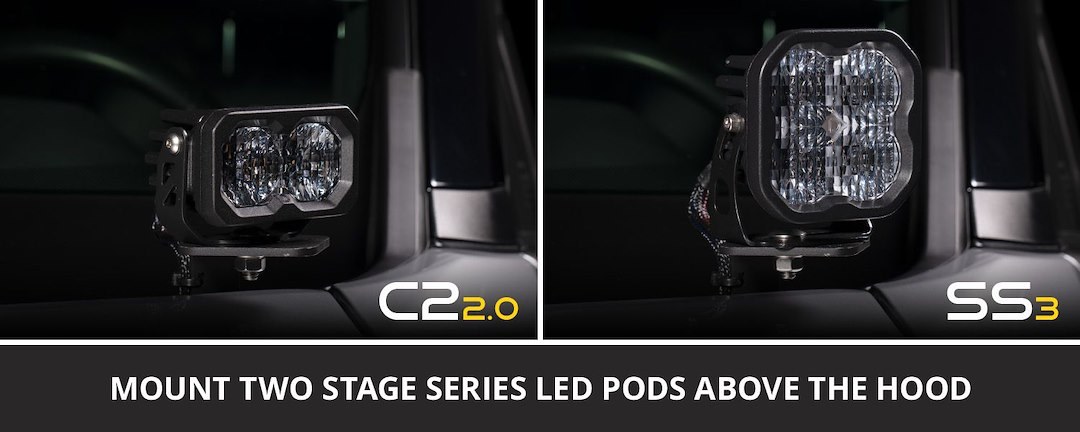

The Stage Series Backlit Ditch Light Kit allows you to easily mount two SS3 Backlit Pods above the hood, perfect for more visibility along the side of the road or downrange. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required This kit features a low profile design while minimizing glare, and will not interfere with raising or lowering the hood. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in our LED Pods collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. provides a balanced beam pattern with strong forward illumination and a wide field of view. The SS3 shines in a smooth 80×30 degree spread, making an excellent all-around option for a variety of speeds and terrain. Unlike other combo lights on the market that produce a distracting hotspot on rough terrain, the Combo/Driving pattern produces a smooth, evenly blended beam for a more comfortable driving experience. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power. The SS3 pods included in our Stage Series Ditch Light Kits feature a brilliant Amber backlight. This integrated backlight gives you an additional accent light, along with the main beam. The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight, use the included harness to tap your desired vehicle function. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting.
Additional information
| Weight | 10.3 lbs |
|---|---|
| Dimensions | 18 × 15 × 12 in |
| Brand | DIODE DYNAMC |
| Manufacturer Part Number | DD7558 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 1,257 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
