Diode Dynamc Driving/ Fog Light, SS3 Pro, LED Bulb, Yellow Cree Xp-L Hi LED Bulbs, 3 Inch Square – DD8466
$518.70
Diode Dynamc Driving/ Fog Light, SS3 Pro, LED Bulb – DD8466
Description
Driving/ Fog Light; SS3 Pro; LED Bulb; Yellow Cree XP-L HI LED Bulbs; 3 Inch Square; Main Beam Power 36 Watt Bulbs Amp Draw 2.7 AMP At 12.8 Volt And Backlight Power 0.4 Watt Bulbs Amp Draw 0.03 AMP At 12.8 Volt; SAE Fog Beam; 5220 Raw Lumens; Clear Polycarbonate Lens; Black Aluminum Casting Housing; Bolt-On Mount; Set Of 2; With 2 9006 Deutsch Style Wire Pigtails/ 2 Mounting Brackets And Hardwares
Attributes:
- Shape: Square
- Beam Type: Fog Beam
- Diameter: Not Applicable
- Height/ Width: 3-5/16 Inch Height X 3-5/16 Inch Width
- Bulb Type: LED
- Light Color: Yellow
- Quantity: Set Of 2
- Universality: Fully Universal
- Wattage: 36 Watt Main Beam/ 0.4 Watt Backlight
- Voltage Rating: 9 To 16 Volt
- Mounting Style: Bolt-On
- Ampere Rating At 12 Volts: 0.03 Amp Backlight/ 2.7 Amp Main Beam
- Lumens: 5220 Lumens
- Bulb Specifications: Cree XP-L HI LED Bulbs
- Lens Material: Polycarbonate
- Housing Color: Black
- Housing Material: Cast Aluminum

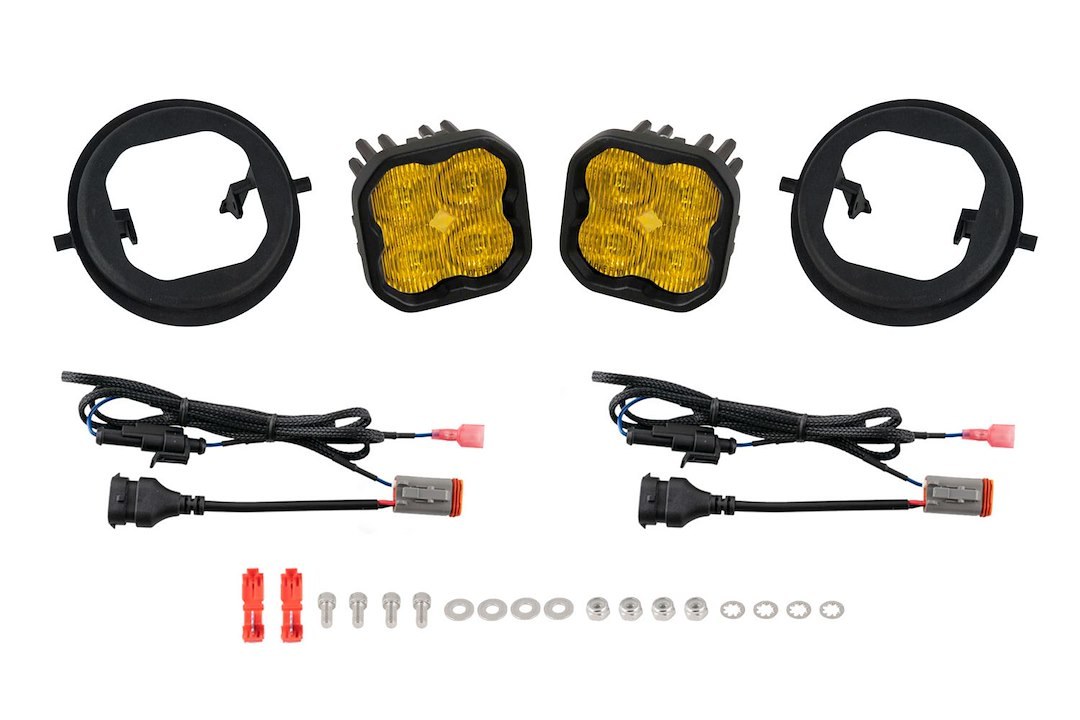

- Includes: With 2 SS3 Standard LED Pods/ 2 Deutsch Style Wire Pigtails/ 2 Mounting Brackets/ Mounting Hardware
- Estimated Install Time (Hours): 1.5
Features & Benefits:
- Advanced TIR Optics Provide High Efficiency And Focus
- Durable Powder Coated Aluminum Construction
- High-Intensity Automotive-Type LED’s
- Pin-Fin Heatsink Design, For Superior Thermal Dissipation
- Integrated Deutsch-Style Connector
- SAE-Compliant Road-Legal Output
- Plug And Play, No Modification Needed
- Designed, Torture Tested And Assembled In USA
- Limited Lifetime Light And 3 Year Bracket Warranty
About Product:

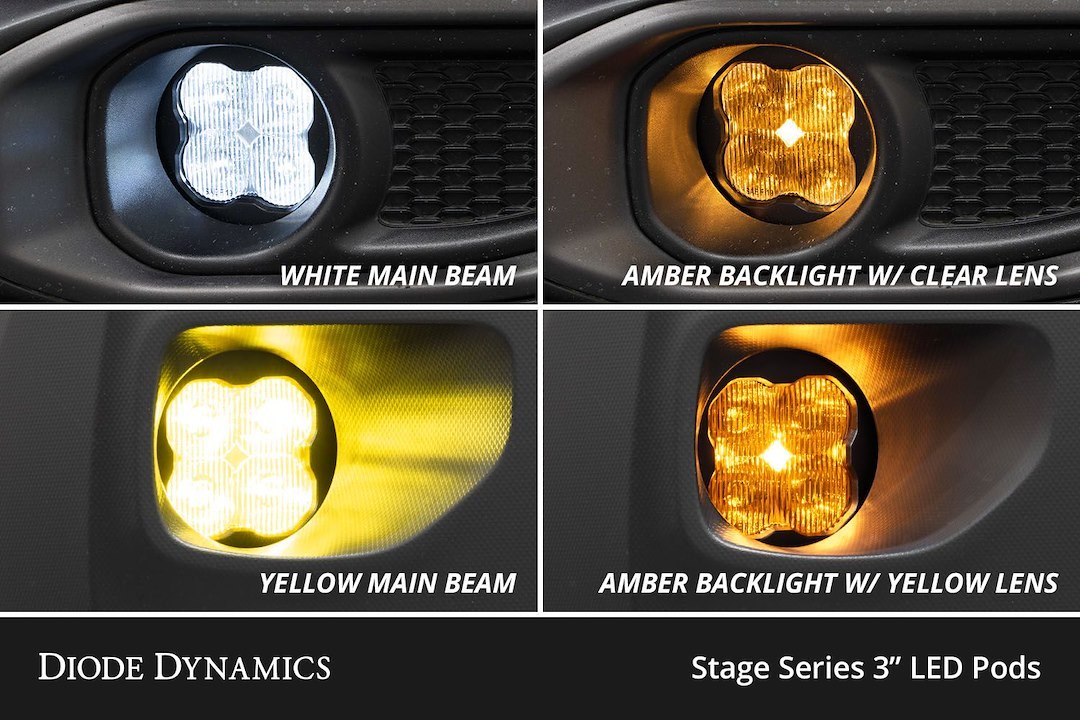

Upgrade your fog lights with our SS3 Type OB Fog Light Bracket Kit! Featuring higher output intensity than any other 3 Inch light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the included custom bracket with bezel, the SS3 Fog Kit has a clean, factory-style appearance, only much brighter. The SS3 Fog Light Bracket Kit can be installed on your vehicle in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! Both 9006-size and H11-size DT adapter wires are included with the kit. Select the adapter wire that matches your factory connector to connect the lights to your factory bulb sockets – no additional wiring needed. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED and directs it only where you need it, drastically reducing glare and improving total efficiency. The Stage Series 3 Inch LED Pod features a distinctive backlight, in a brilliant amber color. This integrated backlight gives you an additional accent light, along with the main beam. The SS3’s backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight, use the included harness to tap your desired vehicle function.
Additional information
| Weight | 2.9 lbs |
|---|---|
| Dimensions | 14 × 11 × 4 in |
| Brand | DIODE DYNAMC |
| Manufacturer Part Number | DD8466 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 966 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
