Diode Dynamc Driving/ Fog Light, Stage Series C1, LED Bulb, White Cree XHP50 LED Bulb, 2 Inch Square, 19 Watt Bulb – DD6454P
$238.70

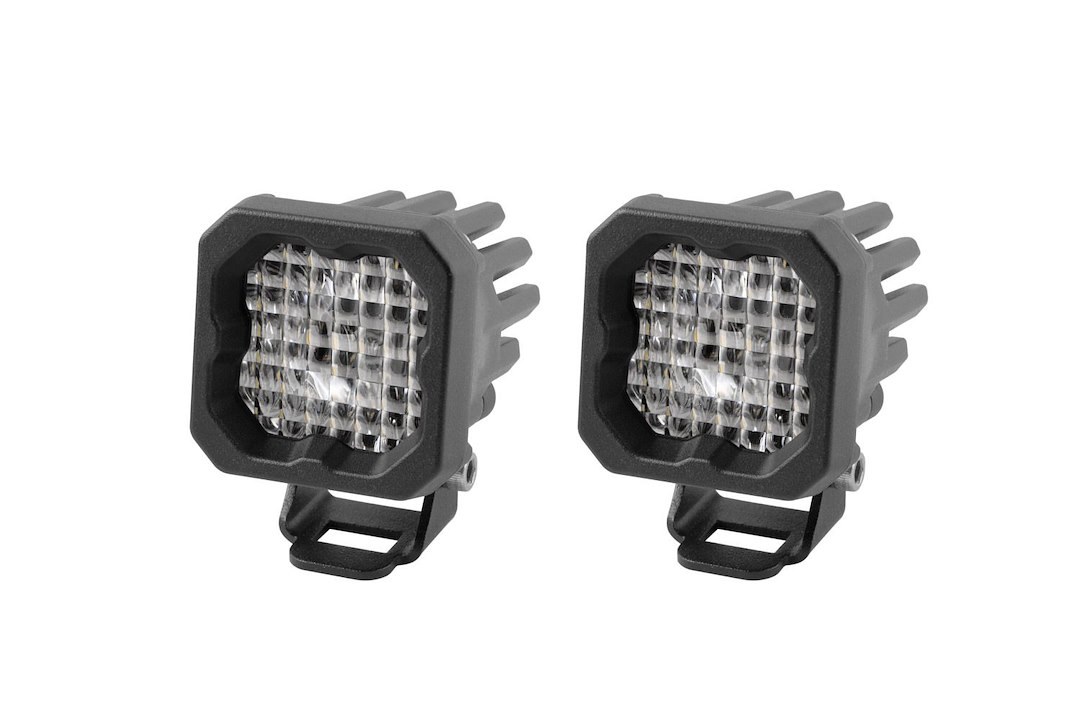

Diode Dynamc Driving/ Fog Light, Stage Series C1, LED Bulb – DD6454P
Description
Driving/ Fog Light; Stage Series C1; LED Bulb; White Cree XHP50 LED Bulb; 2 Inch Square; 19 Watt Bulb; 1.5 Amp Draw At 12.8 Volt; Wide Beam; 2375 Raw Lumens; Clear Polycarbonate Lens; Black Aluminum Cast Housing; Set Of 2; With Two Deutsch Style Wire Pigtails/ Two Mounting Brackets/ Hardware
Attributes:
- Shape: Square

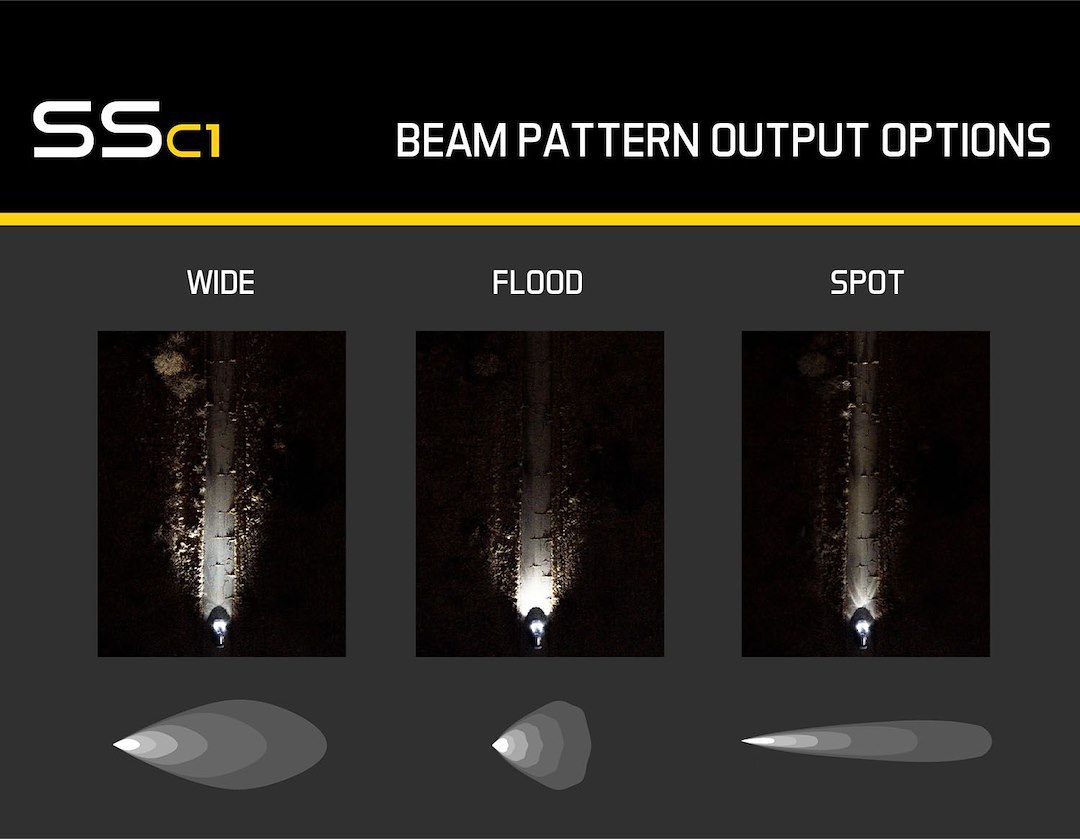

- Beam Type: Wide Beam
- Diameter: Not Applicable
- Height/ Width: 2 Inch Height X 2 Inch Width
- Bulb Type: LED
- Light Color: White
- Quantity: Set Of 2
- Universality: Fully Universal
- Depth: 2-7/16 Inch
- Wattage: 19 Watt
- Voltage Rating: 12.8 Volt
- Mounting Style: Flush Mount
- Ampere Rating At 12 Volts: 1.5 Amp
- Lumens: 2375 Lumens
- Bulb Specifications: White CREE 19 Watt LED Bulbs
- Lens Material: Polycarbonate
- Housing Color: Black
- Housing Material: Aluminum
- Includes: With Two Deutsch-Style Wire Pigtails/ Two Mounting Brackets/ Hardware
- Estimated Install Time (Hours): 1.5
Features & Benefits:
- Ultra-Compact, Single-LED Form Factor
- High-Intensity 10-Watt LED Chip
- Pin-Fin Heatsink Design, For Superior Thermal Dissipation
- Integrated Deutsch-Style Connector
- Designed, Torture-Tested And Assembled In USA
- Limited 8 Year Warranty
About Product:

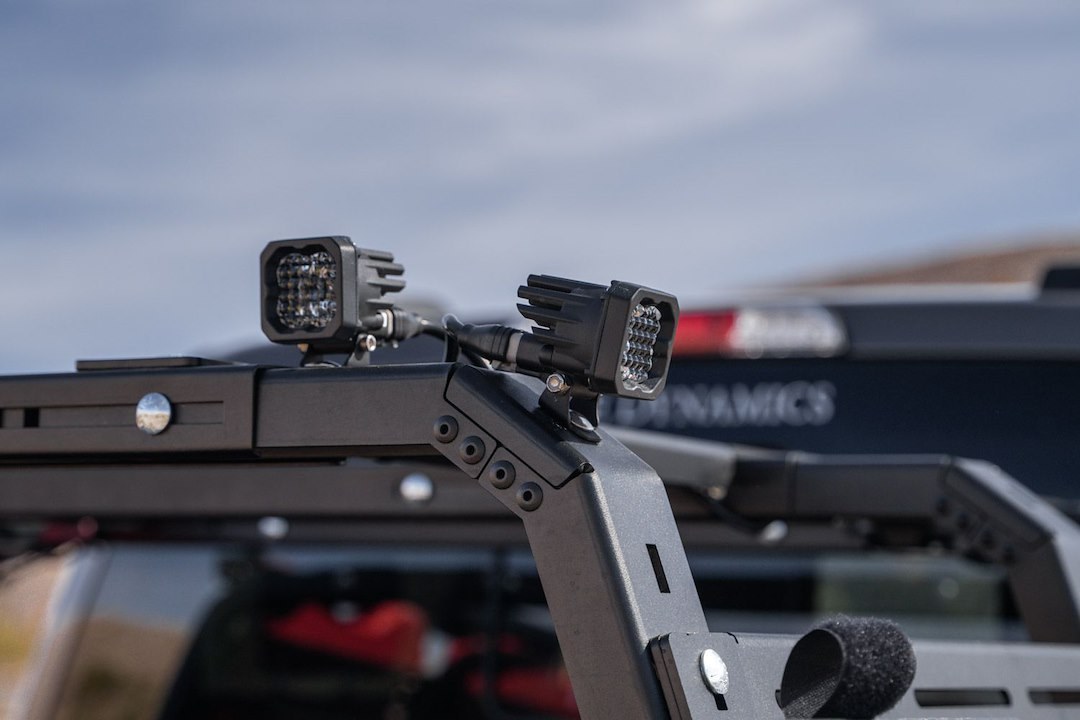

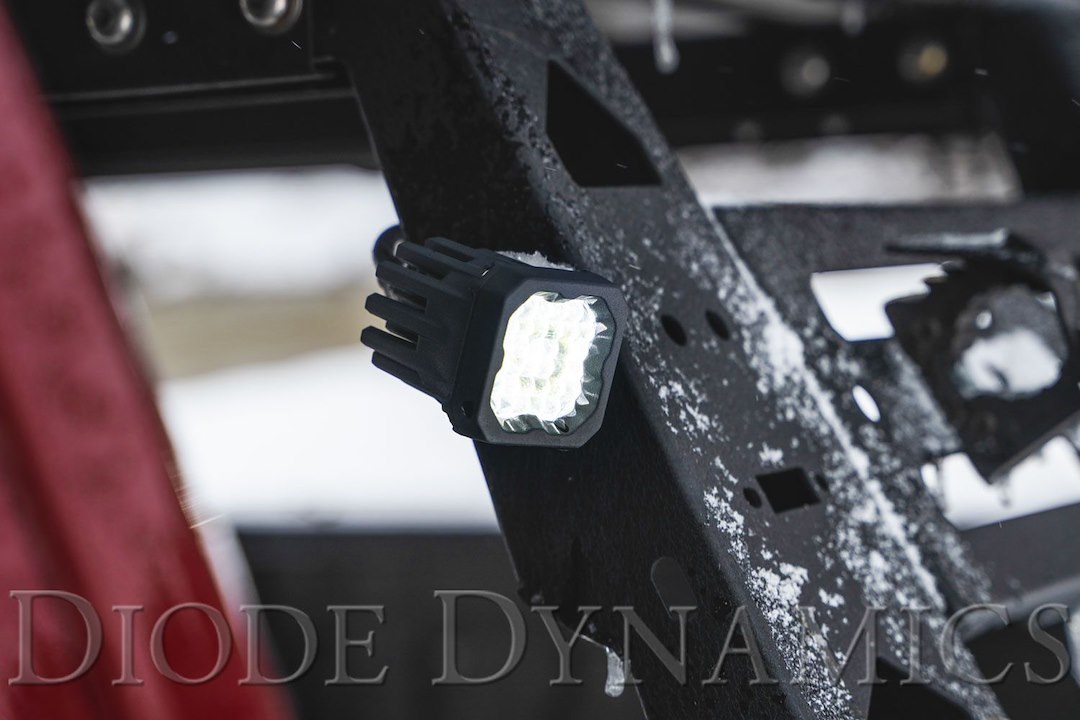

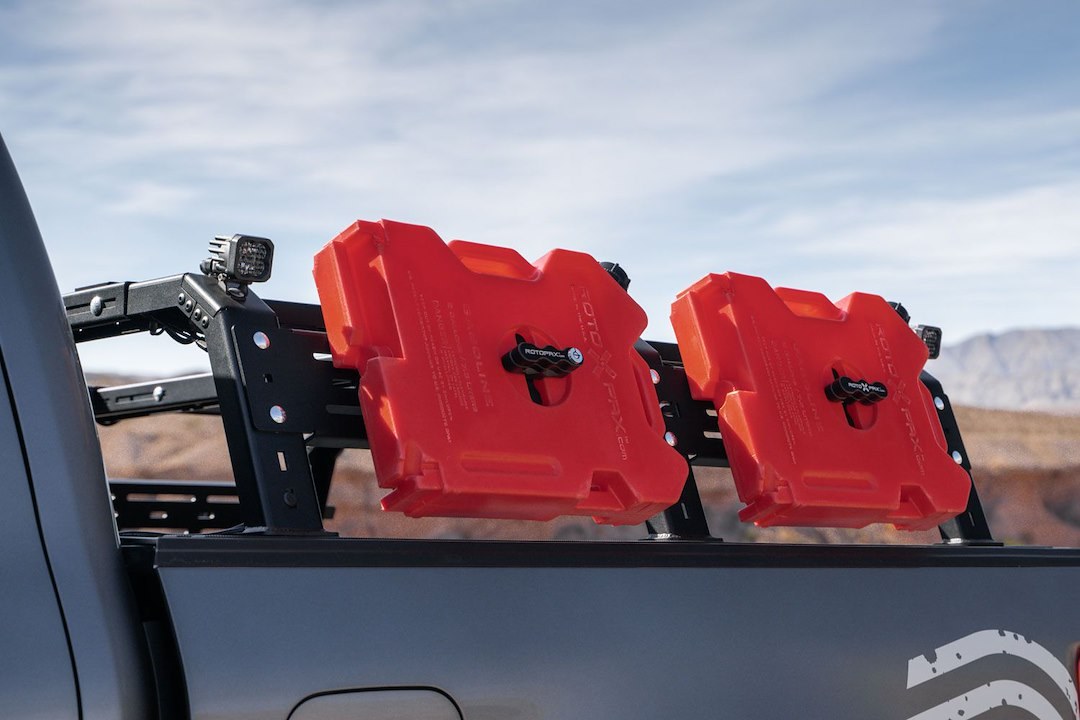

Introducing the Stage Series C1 LED Pod. Featuring custom-engineered TIR optics combined with a single high-power LED chip, these pods have been designed for maximum performance and light output, in our most compact, versatile package yet. The SSC1 can be mounted virtually anywhere on your car, truck, motorcycle, or UTV, including spots where larger LED pods won’t fit. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the Stage Series C1 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. From there, while other options on the market lose as much as 10 Percent of the light output shining through an outer lens, the custom-molded TIR optic in the Stage Series C1 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SSC1 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.
Additional information
| Weight | 1.72 lbs |
|---|---|
| Dimensions | 9 × 6 × 4 in |
| Brand | DIODE DYNAMC |
| Manufacturer Part Number | DD6454P |
