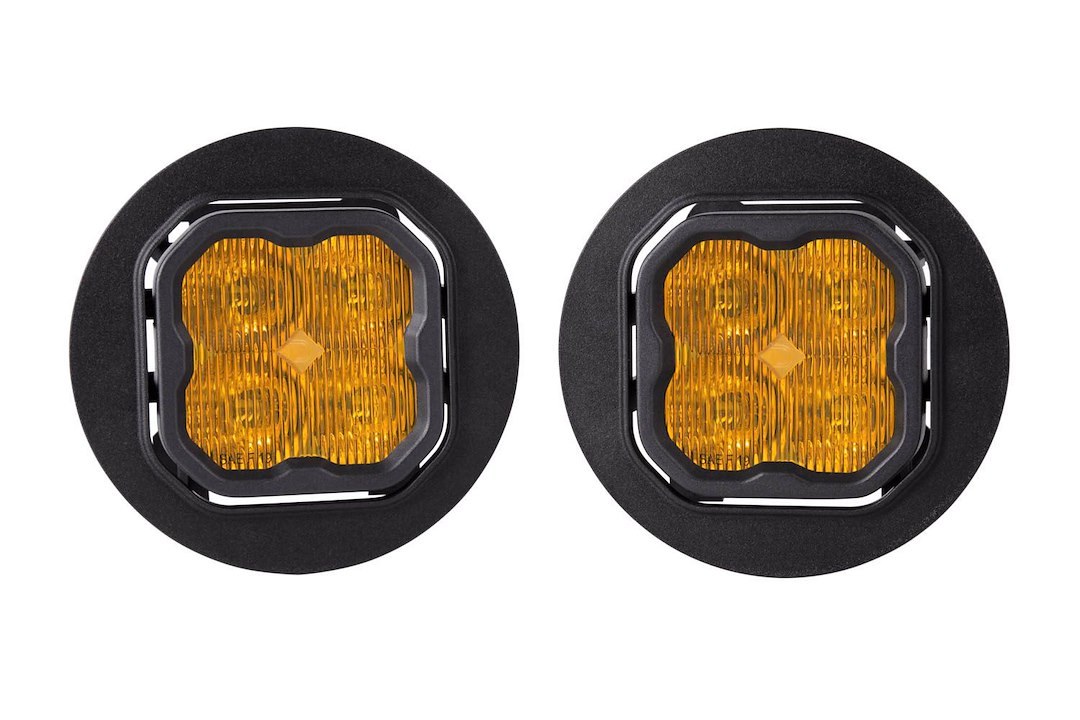

Diode Dynamc Driving/ Fog Light, Stage Series Max, LED Bulb, Yellow Osram Boost Hx LED Bulbs, 3 Inch Square, 38.5 Watt Bulbs – DD7074
$718.70
Diode Dynamc Driving/ Fog Light, Stage Series Max, LED Bulb – DD7074
Description

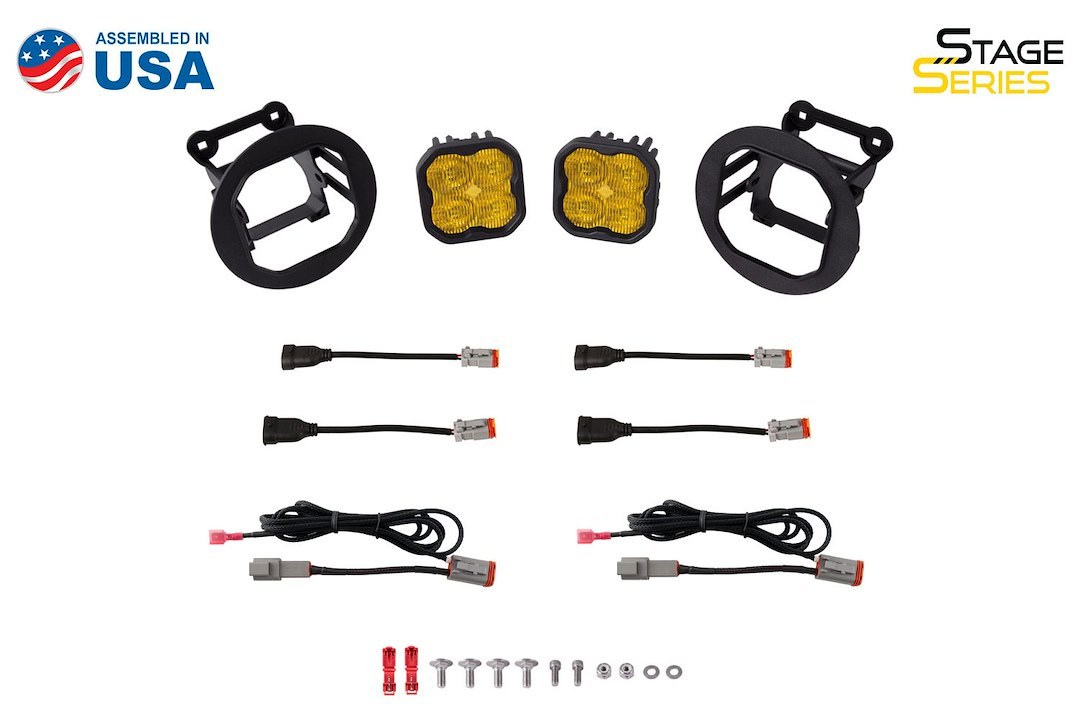

Driving/ Fog Light; Stage Series Max; LED Bulb; Yellow Osram Boost HX LED Bulbs; 3 Inch Square; 38.5 Watt Bulbs; 3 AMP Draw At 12.8 Volt; SAE Fog Beam; 7920 Raw Lumens; Yellow Polycarbonate Lens; Black Aluminum Casting Housing; Set Of 2; With Two Type OB Brackets/ Two 9006 DT 2-Pin Adapters/ Two H11 DT 2-Pin Adapters/ Two Backlight Tap Wire Kit/ Mounting Hardware
Attributes:
- Shape: Round
- Beam Type: Fog Beam
- Diameter: 5-3/16 Inch
- Height/ Width: Not Applicable
- Bulb Type: LED
- Light Color: Amber
- Quantity: Set Of 2
- Universality: Fully Universal
- Depth: 3-7/16 Inch
- Wattage: 38.5 Watt
- Voltage Rating: 12.8 Volt
- Mounting Style: Bracket Mount
- Ampere Rating At 12 Volts: 3 Amp
- Lumens: 7920 Lumens
- Bulb Specifications: Yellow Osram Boost HX LED Bulbs
- Lens Material: Polycarbonate
- Housing Color: Black
- Housing Material: Aluminum
- Includes: With Deutsch-Style Wire Pigtail And Mounting Hardware
- Estimated Install Time (Hours): 1.5
Features & Benefits:
- Advanced TIR Optics Provide High Efficiency And Focus
- SAE-Compliant Road-Legal Output
- Features Custom Bracket, For Factory-Style Appearance
- Plug And Play, No Modification Needed
- Durable Powdercoated Aluminum Extrusion
- Engineered And Assembled In USA
- Backlight Functionality: The Stage Series 3 Inch LED Pod Is Now Available With A Distinctive Backlight, In A Brilliant Amber Color
- White Or Yellow: All Stage Series LED Pods Are Available In A Cool White Or Selective Yellow Color
- Sport, Pro, Or Maximum: Stage Series LED Pods Are Available At Three Different Power Levels
- Limited 8 Year Warranty
About Product:

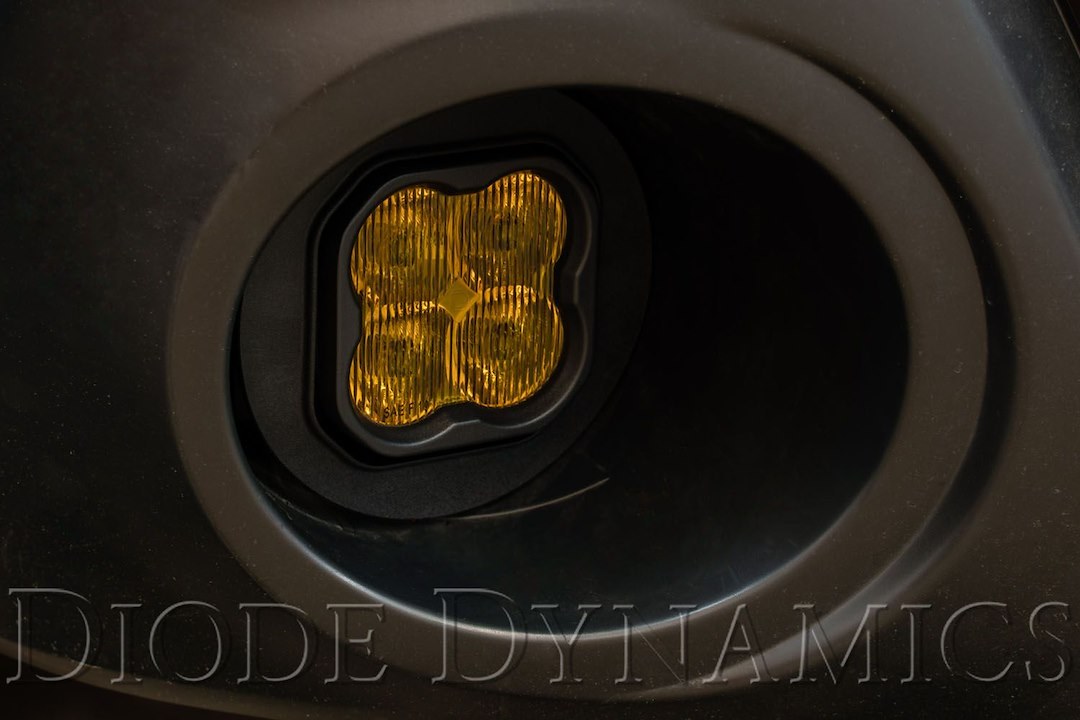

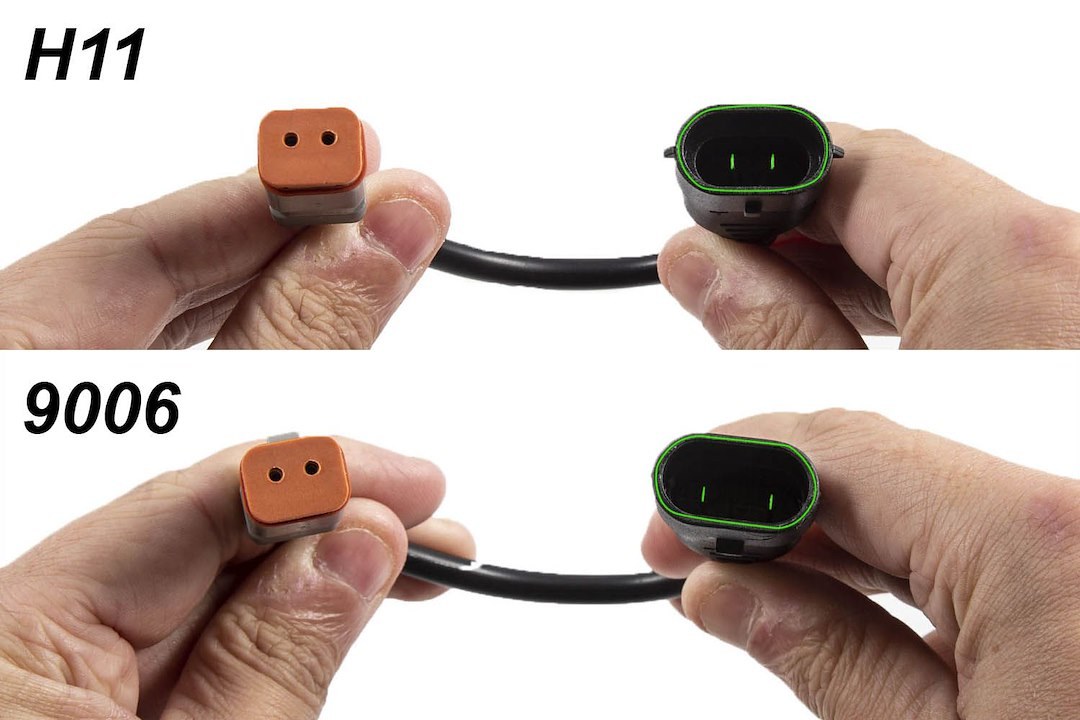

Upgrade your fog lights with our SS3 Type OB Fog Light Bracket Kit! Featuring higher output intensity than any other 3 Inch light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the provided custom bracket with bezel, the SS3 Fog Kit has a clean, factory-style appearance, only much brighter. Plug and Play. Thanks to custom-molded brackets, the SS3 Fog Light Bracket Kit can be installed on your vehicle in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! Both 9006-size and H11-size DT adapter wires are provided with the kit. Select the adapter wire that matches your factory connector to connect the lights to your factory bulb sockets – no additional wiring needed. Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. From there, while other options on the market lose as much as 10 Percent of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.
Additional information
| Weight | 3.84 lbs |
|---|---|
| Dimensions | 14 × 11 × 4 in |
| Brand | DIODE DYNAMC |
| Manufacturer Part Number | DD7074 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 68 vehicles.
