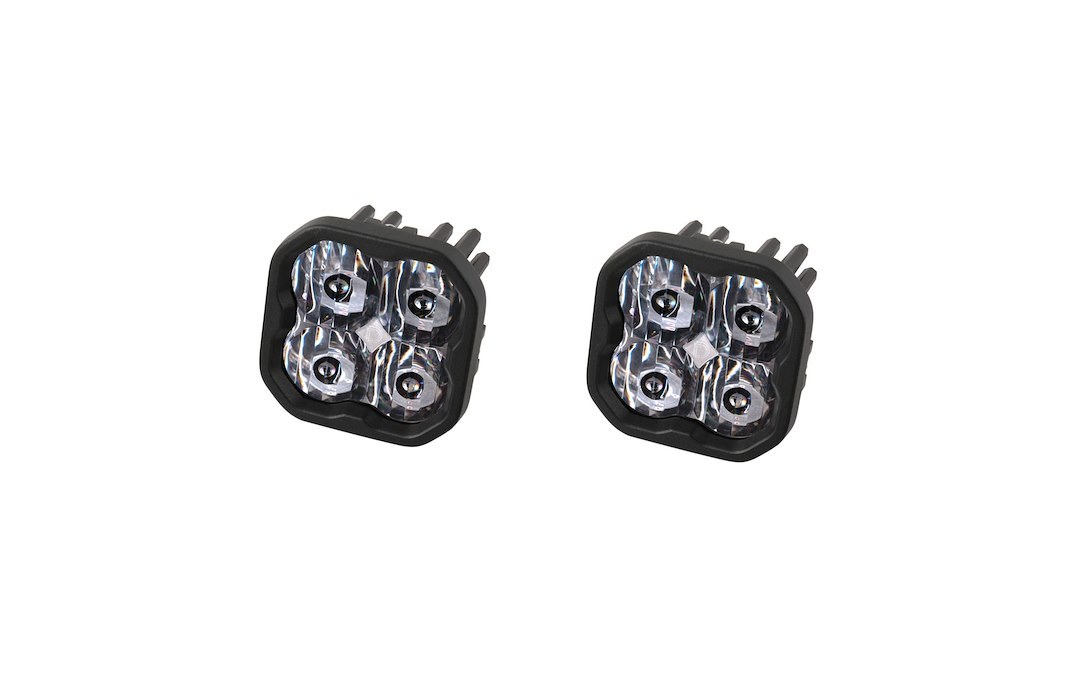

Diode Dynamc Driving/ Fog Light, Stage Series Sport, LED Bulb, White Luxeon Z Es LED Bulb, 3 Inch Square, 14.5 Watt Bulbs – DD6853PNB
$278.70
Diode Dynamc Driving/ Fog Light, Stage Series Sport, LED Bulb – DD6853PNB
Description
Driving/ Fog Light; Stage Series Sport; LED Bulb; White Luxeon Z ES LED Bulb; 3 Inch Square; 14.5 Watt Bulbs; 1.1 AMP Draw At 12.8 Volt; SAE Driving Beam; 2262 Raw Lumens; Clear Polycarbonate Lens; Black Cast Aluminum Housing; Set Of 2
Attributes:
- Shape: Square
- Beam Type: Driving Beam
- Diameter: Not Applicable
- Height/ Width: 3-5/16 Inch Height X 3-5/16 Inch Width
- Bulb Type: LED
- Light Color: White
- Quantity: Set Of 2
- Universality: Semi-Universal
- Depth: 2-7/16 Inch
- Wattage: 14.5 Watt
- Voltage Rating: 12.8 Volt
- Mounting Style: Stud Mount
- Ampere Rating At 12 Volts: 1.1 Amp
- Lumens: 2262 Lumens
- Bulb Specifications: White Luxeon Z ES LED Bulbs
- Lens Material: Polycarbonate
- Housing Color: Black
- Housing Material: Aluminum
- Estimated Install Time (Hours): 1.5
Features & Benefits:
- Durable Powder Coated Aluminum Construction
- Modern TIR Optics Provide Highest Intensity On The Market

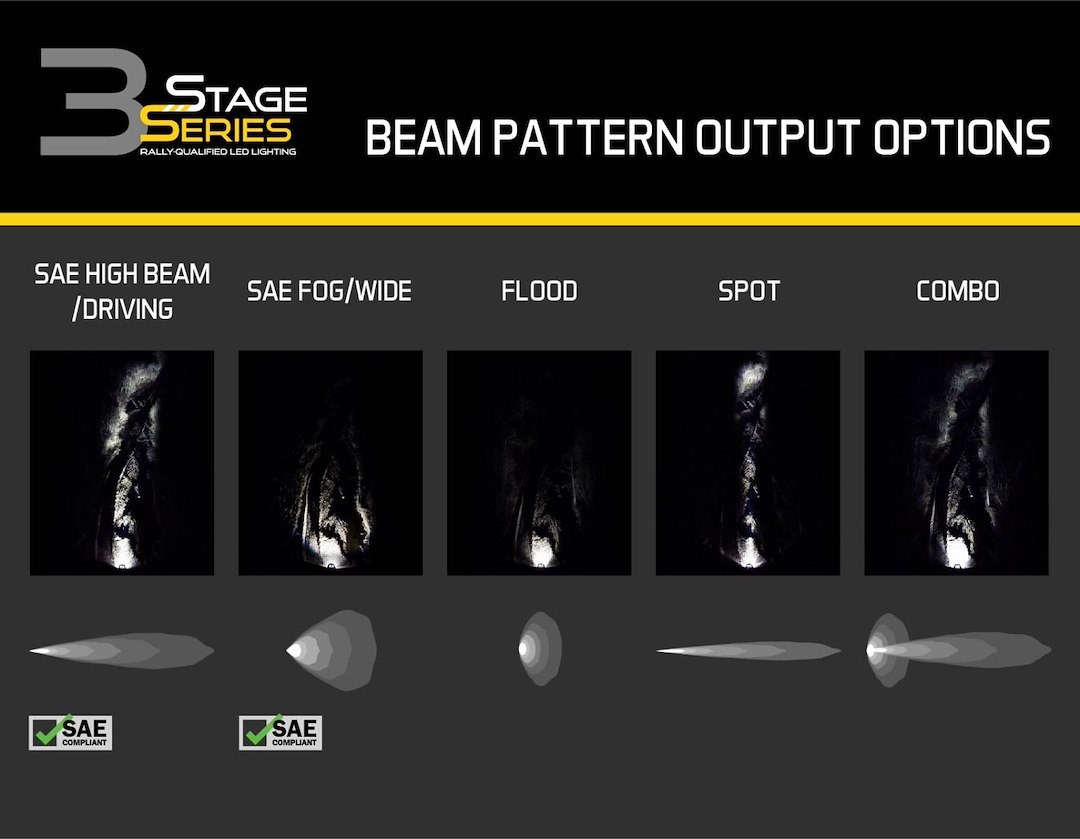

- SAE Driving Beam Is Designed To Supplement Your High Beams, But It’s Great For General Illumination As Well
- Engineered And Assembled In USA
- Limited Lifetime Warranty
About Product:
Introducing the SS3 3 Inch LED Pod. Featuring higher output intensity than any other 3 Inch light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. From there, while other options on the market lose as much as 10 Percent of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens. SAE Driving is designed to supplement your high beams, but it’s great for general illumination as well. Rather than a traditional “spot” pattern, the Stage Series Driving pattern shines in an 18×8 Degree spread, providing just enough width to fully illuminate the road ahead at high speeds. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 Degree Fahrenheit, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They’ve also been put to the test on-road by racers and enthusiasts alike.
Additional information
| Weight | 3.99 lbs |
|---|---|
| Dimensions | 14 × 11 × 4 in |
| Brand | DIODE DYNAMC |
| Manufacturer Part Number | DD6853PNB |
