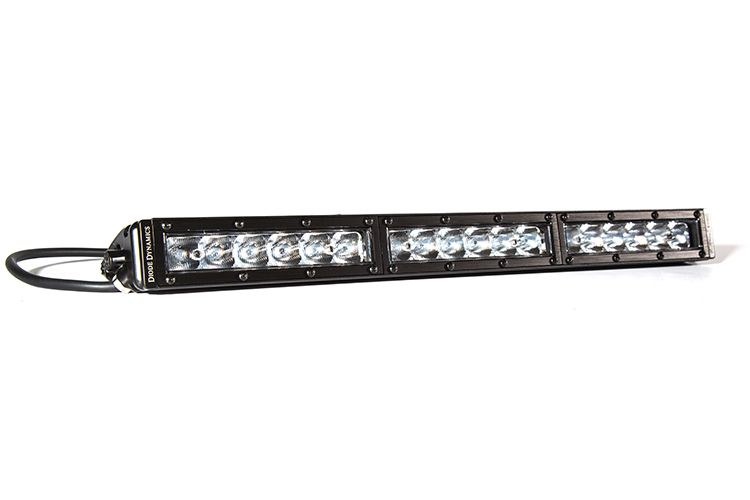

Diode Dynamc Light Bar, Stage Series, LED, 18 Inch Length, White, 79.8 Watt/ 5.7 Amp at 14 Volt, 20 X 8 Degrees Driving Beam – DD5016
$338.70
Diode Dynamc Light Bar, Stage Series, LED, 18 Inch Length, White – DD5016
Description
Light Bar; Stage Series; LED; 18 Inch Length; White; 79.8 Watt/ 5.7 Amp At 14 Volt; 20 x 8 Degrees Driving Beam; 4200 Effective Lumens; Polycarbonate Lens; Black Housing; With Universal Mounting Brackets/ Wire Pigtail And Mounting Hardware
Attributes:
- Bulb Type: LED
- Style: Straight
- Length: 18 Inch
- Beam Type: Driving Beam
- Number Of Rows: Single
- Light Color: White
- Housing Color: Black
- Smart Technology Compatible: Not Compatible With Smart Technology
- Beam Angle (Deg): 20 x 8 Degree
- Lumens: 4200 Lumens
- Wattage: 79.8 Watt

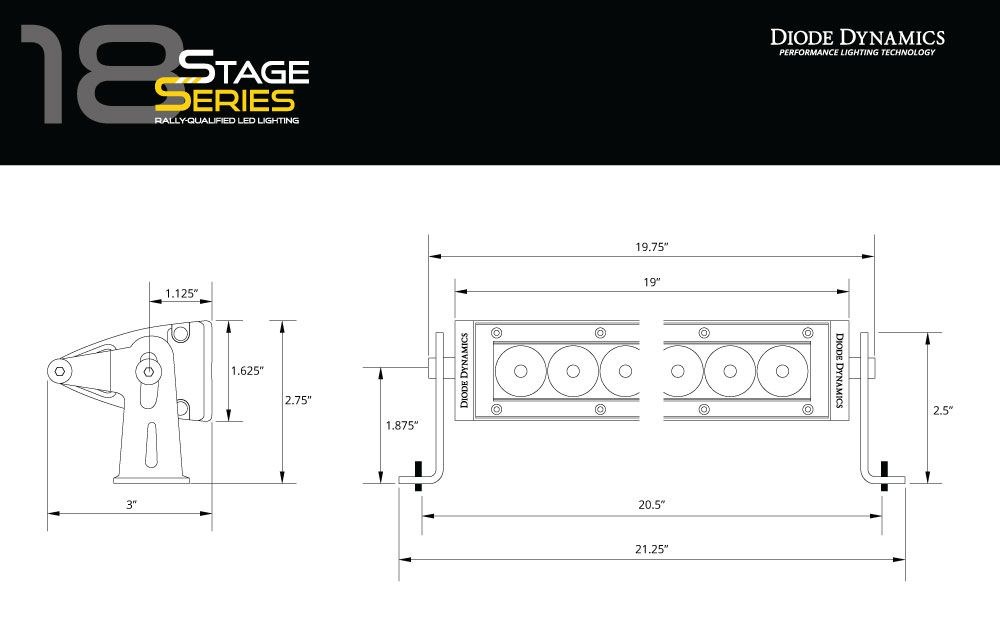

- Width: 3 Inch
- Height: 1-5/8 Inch
- Voltage Rating: 14 Volt
- Ampere Rating At 12 Volts: 5.7 Amp
- Bulb Specifications: 18 LED Bulbs
- Lens Material: Polycarbonate
- Housing Material: Aluminum
- Mounting Length: 21-1/4 Inch
- Mounting Style: Bolt-On Mount
- Connection Type: Plug And Play Wiring Harness
- Includes: With Universal Mounting Brackets/ Wire Pigtail/ Mounting Hardware
- Estimated Install Time (Hours): 1.5

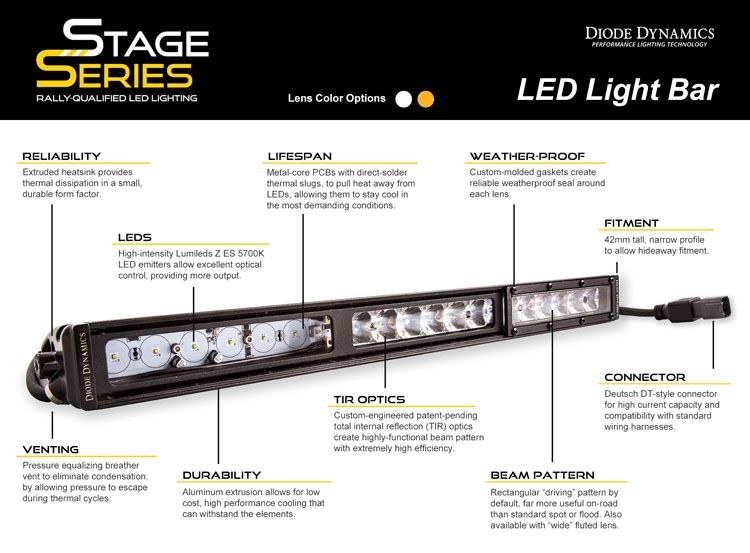

Features & Benefits:

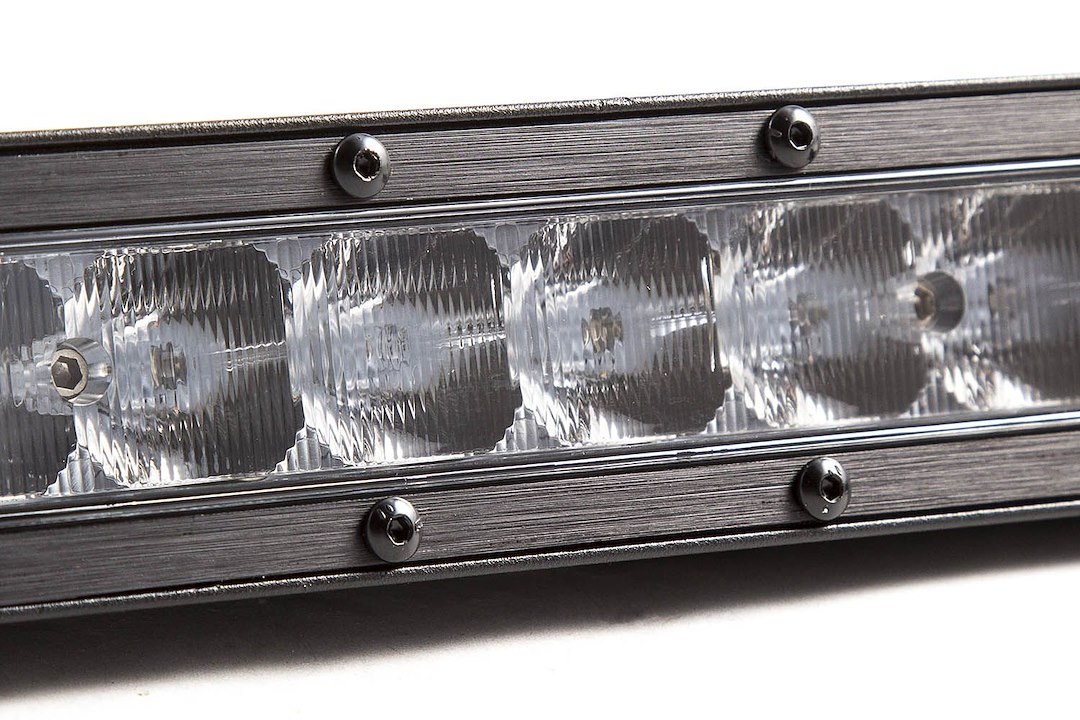

- Advanced TIR Optics Provide High Efficiency And Focus
- High-Intensity Automotive-Type LEDs With Pure White Color
- Available In Driving, Wide Or Flood Beam Patterns
- Slim 42 Millimeter Housing For Low-Profile Fitment
- Durable Matte Powder Coated Extrusion
- Limited 8 Year Warranty
About Product:
Introducing STAGE SERIES LED lighting! Inspired by the needs of a professional rally driver, these light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. The lightbar is based on a narrow-profile extruded housing, to allow fitment in small and tight areas. At less than 42 Millimeter tall, they’ll fit in many places a traditional dual-row light bar won’t, while cutting total weight as well. The heatsink design also drastically reduces wind noise, and does not whistle in the wind like many generic housings.
Additional information
| Weight | 4.09 lbs |
|---|---|
| Dimensions | 26 × 10 × 4 in |
| Brand | DIODE DYNAMC |
| Manufacturer Part Number | DD5016 |
