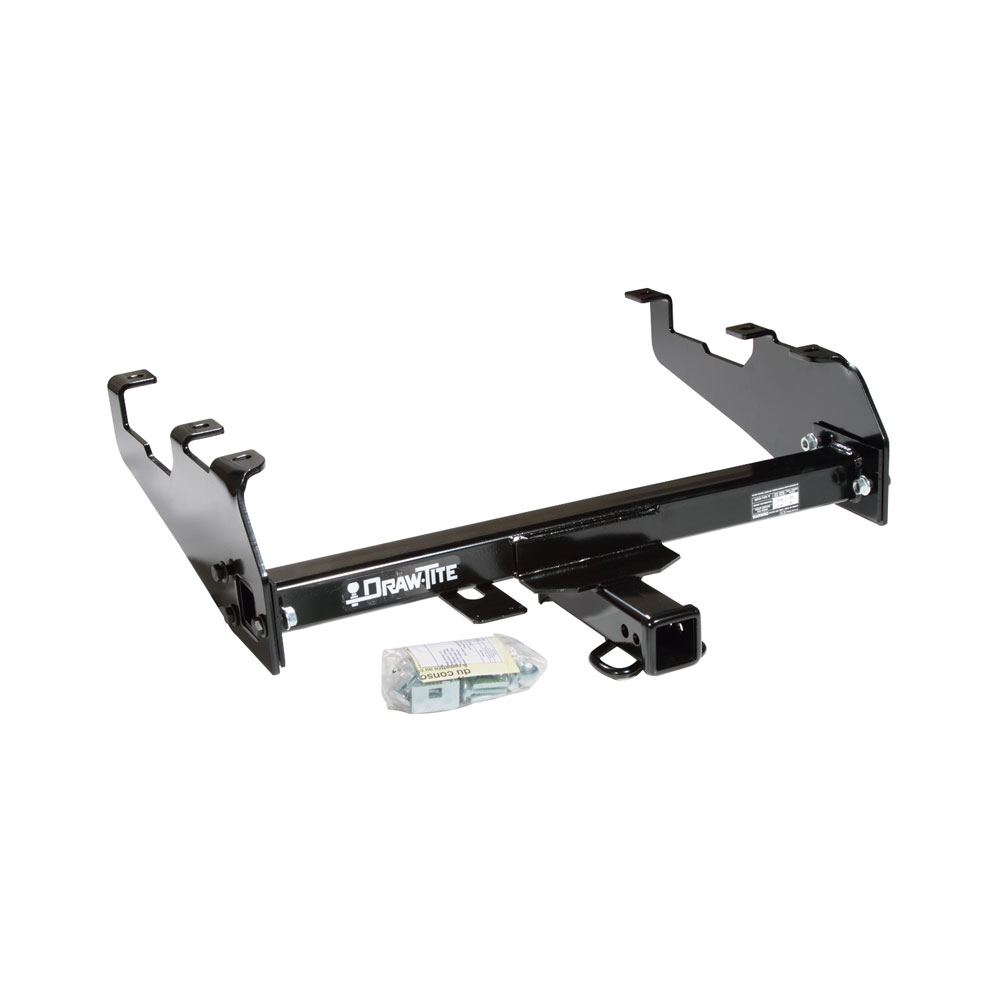

Draw-Tite Trailer Hitch Rear, Max-E-Loader, Class III, Square Tube Welded, 2 Inch Receiver – 41504
$292.93
Draw-Tite Trailer Hitch Rear, Max-E-Loader, Class III – 41504
Description
Trailer Hitch Rear; Max-E-Loader; Class III; Square Tube Welded; 2 Inch Receiver; 5000 Pound Weight Carrying Capacity/500 Pound Tongue Weight; 10000 Pound Weight Distributing Capacity/1000 Pound Tongue Weight
Attributes:
- Class: III
- Receiver Size (IN): 2 Inch
- Construction: Square Tube Welded
- Weight Carrying Capacity (LB): 5000 Pound
- Weight Carrying Tongue Weight (LB): 500 Pound
- Weight Distributing Capacity (LB): 10000 Pound
- Weight Distributing Tongue Weight (LB): 1000 Pound
- Color/ Finish: Black Powder Coated
- Includes Ball Mount: No
- Material: Steel
- For Use With Roll Pan: No
- Drilling Required: Yes
- Cutting Required: No
- Estimated Install Time (Hours): 1.5
Features & Benefits:
- Long Side Bracket Design Distributes The Towing Load Over A Greater Portion Of The Tow Vehicle Frame
- All Frame Attachment; Ensures Perfect Fit And Top Towing Performance; Making It The Ideal Receiver For Maximum Duty 12000 Pounds Gross Trailer Weight Applications
- 2 Inch Square Receiver Tube Opening; Computer Aided Design And Fatigue Stress Testing
- J-Pin® Ready; Designed To Withstand Road Abuse Within Specified Capacities
- Weight Carrying Capacity: Rated Up To 6000 Pounds Gross Trailer Weight, Weight Distributing Capacity: Rated Up To 12000 Pounds Gross Trailer Weight
- Solid All Welded Construction For Maximum Strength And Safety
- Custom Built According To Manufacturer And Model Year
- Limited Lifetime Warranty
About Product:
Class III Hitches are Weight Carrying(WC) and also are Weight Distributing(WD) Hitches depending on the vehicle and Hitch specifications. Not all Class III Hitches are rated to be both. The Hitch specifications will alert you to a Hitch that is not weight distributing. Class III Hitches used as weight carrying is rated up to 5000 Pounds Gross Trailer Weight(GTW) with a maximum trailer Tongue Weight(TW) of 500 Pounds. Hitches that are used for weight distributing are rated up to 10000 Pounds Gross Trailer Weight(GTW) with a maximum trailer Tongue Weight(TW) of 1000 Pounds. This style of Hitch typically uses a 2 Inch square receiver opening. The use of a ball mount and Hitch ball of the same rating or higher is required. To use the weight distribution side of the Hitch a weight distribution system is required.
Additional information
| Weight | 60 lbs |
|---|---|
| Dimensions | 34 × 13 × 7 in |
| Brand | DRAW TITE |
| Manufacturer Part Number | 41504 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 17,187 vehicles.
