Name: Egis Mobile Battery Voltage Sensing Relay, Allows Charging of Two Independent Battery Banks from a Single Charging Source, 8 to 18 Volt DC - 7610
Brand: EGIS MOBILE
SKU: KYS-EGI7610
Price: 130.44 USD
Availability: InStock

Description

Battery Voltage Sensing Relay; Allows Charging Of Two Independent Battery Banks From A Single Charging Source; 8 To 18 Volt DC; Remote Switch; 160 Amp; 3.36 Inch Length x 3.98 Inch Width x 2.12 Inch Height; With Deutsch Harness; 1.3 Amp Operating Current; Stainless Steel Self-Locking Hardware

Attributes:

Function: Allows Charging Of Two Independent Battery Banks From A Single Charging Source
Operating Voltage: 8 To 18 Volt DC
Ampere Rating: 160 Amp
Length (IN): 3.36 Inch
Width (IN): 3.98 Inch
Height (IN): 2.12 Inch
Mounting Type: Top Side Mount

Features & Benefits:

Ultra-Low Power Draw

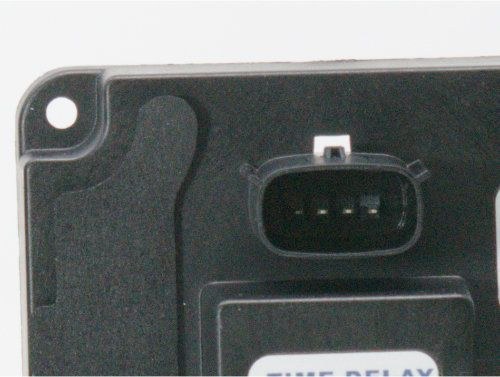

Integrated Sealed Plug Eliminates Corrosion
Start Assist Input Option To Ensure Maximum Cranking Amps Available By Allowing Manually Connecting Of Batteries Via Remote Switch

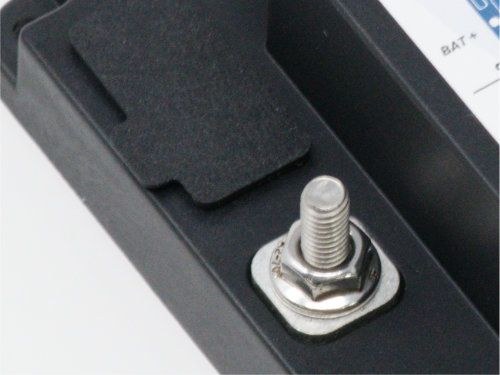

Bullet-Proof Construction Sealed Unit, Stainless Steel Hardware, High Temperature Materials Allow Mounting Anywhere
Additional Low Amp Output Can Be Used To Report Device Status Remotely, Or Drive A Secondary Relay For Charge To A Battery Bank Without A Charge Source
Dual Start/ Engine Isolation
Limited 4 Year Warranty

About Product:

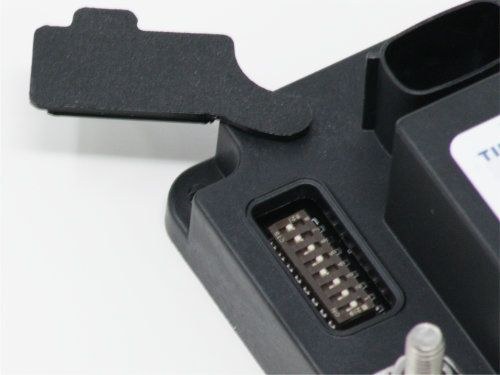

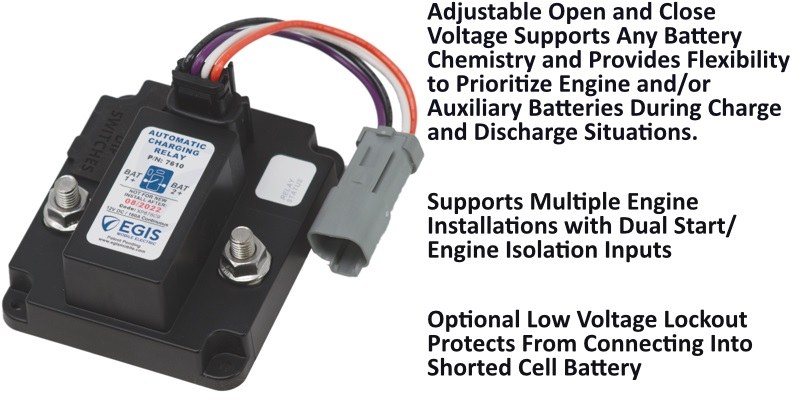

Fully Adjustable Open and Close Voltages Supports All Battery Chemistry Combinations Supports Multiple Engine Installations with Dual Start/ Engine Isolation Inputs Start Assist Option for Auto or Manual Connection with Start/ Aux Batteries Optional Prior.
