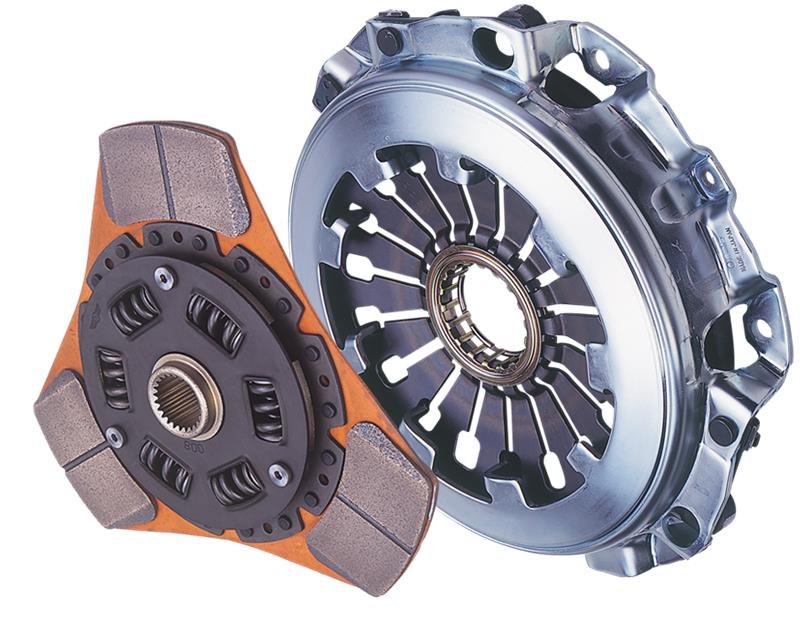

Exedy Clutch Set, Stage 2, 24 Spline, Single Disc, Cerametallic Friction Material, With Flywheel – 08951FW
$850.00
Exedy Clutch Set, Stage 2, 24 Spline, Single Disc – 08951FW
Description
Clutch Set; Stage 2; 24 Spline; Single Disc; Cerametallic Friction Material; With Flywheel
Attributes:
- Input Shaft Size: 1 Inch X 24 Spline
- Pressure Plate Design: Diaphragm
- Disc Diameter: 215 Millimeter
- Number Of Friction Discs: 1 Disc
- Disc Friction Material: Cerametallic
- Disc Hub Design: Sprung
- Pressure Plate Clamp Load: 1596 Pound
- Pressure Plate Centrifugal Assist: No Centrifugal Assist
- Torque Holding Capacity: 224 Feet/Pound
- Includes Throwout Bearing: No
- Includes Pilot Bearing: No
- Includes Alignment Tool: Yes
Features & Benefits:
- EXEDY Cerametallic Clutches Are Designed To Handle The Abuse Of High Power Modified Engines
- Cerametallic Friction Material Can Handle Much More Abuse Than Stock Type Disc Assemblies Without Slipping And Fading
- Stage 2 Cerametallic Clutch Discs Have Sprung Center Dampers To Reduce The Impact And Shock Loads Transmitted Through The Drivetrain
- The “thick” Discs Have Better Heat Capacity And Therefore Better Durability In Demanding Applications
- The “thin” Discs Offer Greatly Reduced Inertia To Improve Shift Effort, Allow For Quicker Shifting, And Improve Synchro Durability
- Ductile Material Is Used For All Pressure Plates And, High Burst Strength Can Be Achieved In All Temperature Ranges
- Clutch Covers Are Designed To Achieve A Clamping Load That Is Approx. 40 Percent Higher Than The Genuine Part Allowing A Higher Torque Transmitting Capacity
- Limited 1 Year Or 20,000 Mile Structural And 90 Day Supplier Flywheel Warranty
About Product:
EXEDY cerametallic clutches are designed to handle the abuse of high power modified engines. Our cerametallic friction material can handle much more abuse than stock type disc assemblies without slipping and fading. All EXEDY Stage 2 cerametallic clutch discs have sprung center dampers to reduce the impact and shock loads transmitted through the drivetrain. We offer two types of cerametallic discs, “thick” and “thin” along with a cushion button disc. EXEDY Lightweight Flywheels combine low weight, low inertia and high thermal capacity. They are designed for light to moderately tuned racing cars for drag racing, autocross and rally events, as well as street usage. They are made from solid one-piece billet chromoly steel or chromoly steel forgings. They are specifically designed to reduce weight and inertia for better engine response. Most incorporate special design features to enhance the airflow which improves the cooling of the clutch. The ring gear teeth are integrated onto the flywheel unlike an aluminum flywheel where the ring gear is pressed onto the flywheel and has the possibility of separating from the flywheel due to the different expansion coefficients of aluminum and steel.
Additional information
| Weight | 20.8 lbs |
|---|---|
| Dimensions | 16 × 15 × 5 in |
| Brand | EXEDY |
| Manufacturer Part Number | 08951FW |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 24 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
