Fabtech Leveling Kit Suspension, Basic, 2-1/2 Inch Lift, Coil Springs – K2334DL
$2,633.08
Fabtech Leveling Kit Suspension, Basic, 2-1/2 Inch Lift, Coil Springs – K2334DL
Description
Leveling Kit Suspension; Basic; 2-1/2 Inch Lift; Coil Springs; With Coil Springs/ Track Bar/ Front Dirt Logic Remote Reservoir And Rear Dirt Logic Shock Absorbers/ Installation Hardware
Attributes:
- Lift Height: 2-1/2 Inch Lift
- Type: Coil Spring
- Maximum Tire Size: 35 x 12.50
- Includes Shock/Struts: Yes
- Minimum Wheel Diameter: 17
- Wheel Backspacing (IN): 4.75
- Wheel Offset (MM): 6.35
- Color: Black Components/ Silver Shocks
- Material: Stainless Steel
- Estimated Install Time (Hours): 2
Features & Benefits:
- Provide A Superior Ride Quality Both On And Off-Road With Excellent Damping For Off-Road Use
- Provides Bind Free, Reliable Operation
- Constructed With A Stainless Steel Body And A NitroSteel ® Piston Rod For Maximum Corrosion Resistance And Durability
- To Ensure Product Quality, Fabtech Builds All Of Its Componentry In House
- Limited Lifetime Warranty
About Product:

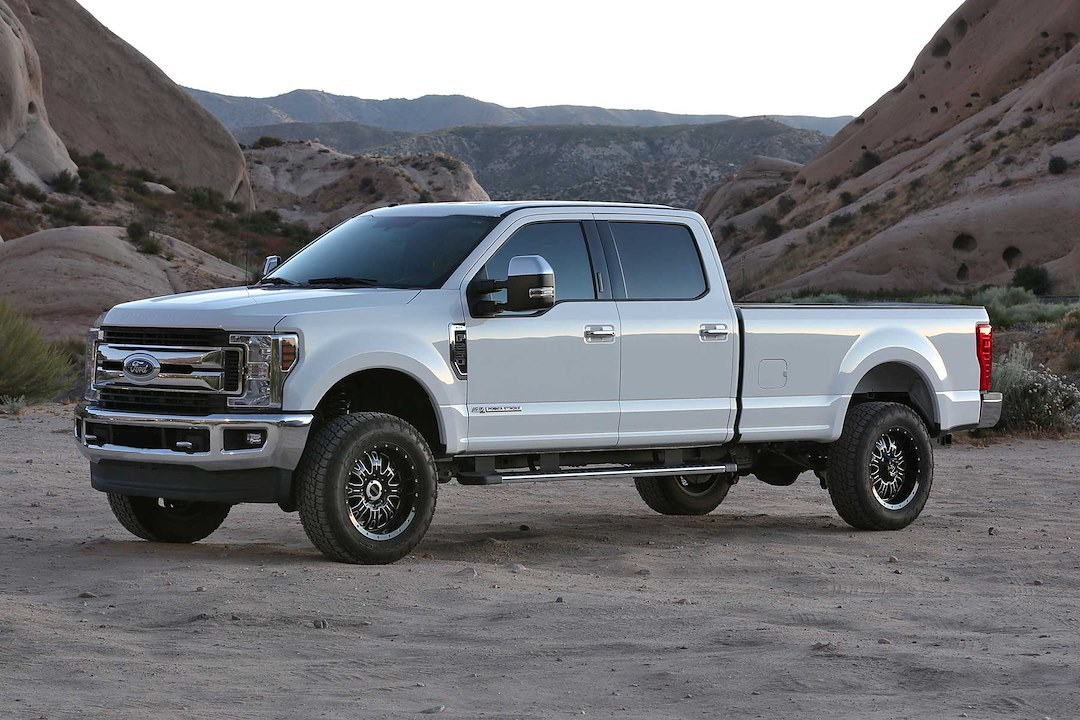

This Super Duty lift kit is perfect for the enthusiast looking to run oversized tires and wants additional wheel travel for offroad use. With the large Super Duty wheelwell openings and this quality 2-1/2 Inch lift kit, you can run 35 Inch tall tires with ease. Fabtech’s coil springs retain the factory load carrying capacity while providing increased suspension travel. The coil springs and associated bracketry allow for an additional inch of compression travel over stock without binding the suspension. This extra travel helps when offroading in rugged terrain. Sway bar drop brackets are included to reposition the front bar so that the link ends do not go over center at full droop and cause bind. The brake lines are relocated down on the frame with extension brackets to eliminate the possibility of overstretching the lines throughout the new travel range. Fabtech provides extension brackets rather than longer brake lines to keep the factory brake system sealed for fast and trouble-free installation. This suspension kit utilizes the factory bump stops without extensions. This allows for more travel with the Fabtech coil springs and components. To help keep the factory alignment specifications of the vehicle, Fabtech includes 2 degree adjustable alignment ball joint inserts. They help retain the factory caster specifications for optimum driveability. After a Super Duty is lifted the front axle is pushed to one side due to the length of the track bar. To address this issue Fabtech provides a heavy-duty adjustable track bar. The Fabtech track bar allows for on the vehicle adjustment to center the axle under the vehicle. This provides proper tracking of the front and rear axle for excellent highway manners. This Super Duty lift kit comes with Dirt Logic 2.25 shocks. They will provide a superior ride quality both on and offroad with excellent damping for offroad use.
Additional information
| Weight | 131.4 lbs |
|---|---|
| Dimensions | 39 × 12 × 7 in |
| Brand | FABTECH |
| Manufacturer Part Number | K2334DL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 237 vehicles.
