Fabtech Lift Kit Suspension, 3 Inch Front Lift, 3 Inch Rear Lift – K4229DL
$4,061.15
Fabtech Lift Kit Suspension, 3 Inch Front Lift, 3 Inch Rear Lift – K4229DL
Description

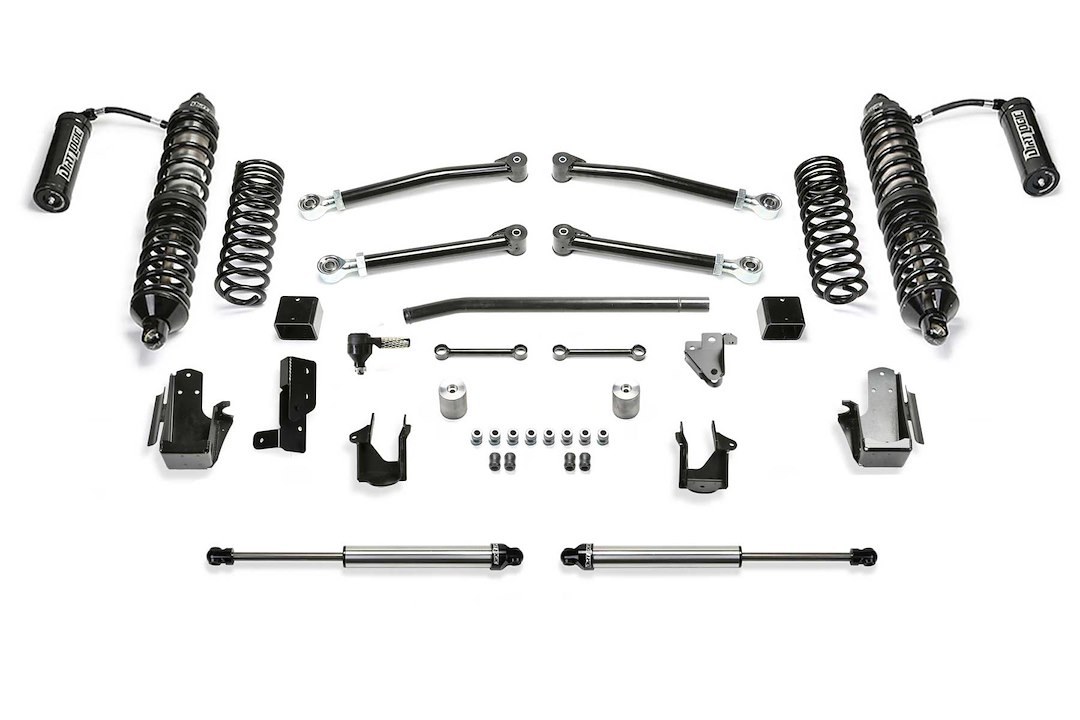

Lift Kit Suspension; 3 Inch Front Lift; 3 Inch Rear Lift; With Front Dirt Logic Remote Reservoir Coil Overs And Rear Dirt Logic Shock Absorbers In Kit; Black Components; With Rear Coil Springs/ Lower Control Arms/ Stabilizer Bar Links/ Bump Stop Spacers/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 3 Inch
- Rear Lift Amount (IN): 3 Inch
- Front Lift Type: Sway Bar Links
- Rear Lift Type: Coil Spring
- Maximum Tire Size: 35 x 12.50
- Shock Type: Gas Charged
- Wheel Backspacing (IN): 4.50
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -12.7
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Features & Benefits:
- Bolt On Super Stout Bracketry Allows The Mounting Of Dirt Logic 2.5 Coilovers For A Superior Highway Ride While Having The Ability To Tackle The Roughest Offroad Terrain
- Proper Factory Bushing Cross Bolt Angles Are Parallel On Fabtech Short Arm Link Arms Eliminating Premature Bushing Wear Resulting In Poor Handling
- Springs Are The Best On The Market For All Around Driving While Providing Increased Suspension Travel For Offroad Use
- Heavy-Duty Draglink Provides Bind Free Operation At Full Articulation And Eliminates Bump Steer Throughout The Travel
- Front And Rear Bump Stop Extensions Keep The Suspension From Over Cycling With The Increased Ride Height Preventing Damage To Steering And Suspension Parts
- Front And Rear Sway Bar Links Provided To Eliminate The Sway Bar From Going Over Center And Creating Link Bind At Full Extension Travel
- Dirt Logic Shocks Constructed Of A Stainless Steel Body With A NitroSteel ® Piston Rod For Maximum Corrosion Resistance And Durability
- Superior Ride Quality Both On And Offroad With Excellent Damping For Offroad Use
- Limited Lifetime Warranty
About Product:
This Trail system with Dirt Logic 2.5 coilovers provides enhanced suspension performance to address all variants of off highway travel use including rock crawling, aggressive trail use and overland expeditions. On road, the suspension has been tuned with proper rear dual rate coil springs and shock valving to provide a very compliant ride that you will appreciate. The system is a complete short arm suspension that utilizes the factory control arm mounts for an easy installation. The Fabtech heavy-duty link arms are constructed of 1-3/4 Inch Outer Diameter. 1/4 Inch thick wall steel tubing that are guaranteed never to bend. They come with large poly urethane bushings on one end with internal threads on the other to accept the ground breaking Fabtech 5 Ton Joint ® for longevity and a quiet ride. The coilover conversion features heavy-duty 1/4 Inch thick steel bracketry that attaches to the side of the Jeep coil spring bucket and to the frame for stout mounting of the Dirt Logic Coilovers. The Dirt Logic 2.5 Coilovers are the only all stainless steel body shock on the market. This is the most corrosive resistant shock there is. The ride quality of these Coilovers are vastly superior to a coil spring and shock configuration. This is the single biggest improvement you can do to your Jeep Gladiator to enhance the ride quality both on and offroad. To address the steering geometry with the increased ride height, a Draglink Flip System along with a heavy-duty Track Bar bracket is included. This relocates the steering geometry to the factory plane allowing for full articulation without binding the draglink ends in extreme conditions.
Additional information
| Weight | 257.2 lbs |
|---|---|
| Dimensions | 39 × 15.13 × 8.75 in |
| Brand | FABTECH |
| Manufacturer Part Number | K4229DL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 183 vehicles.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| Loading fitment... | ||||
