Fabtech Lift Kit Suspension, 3 Inch Front Lift, 3 Inch Rear Lift – K7080DL
$3,495.15
Fabtech Lift Kit Suspension, 3 Inch Front Lift, 3 Inch Rear Lift – K7080DL
Description

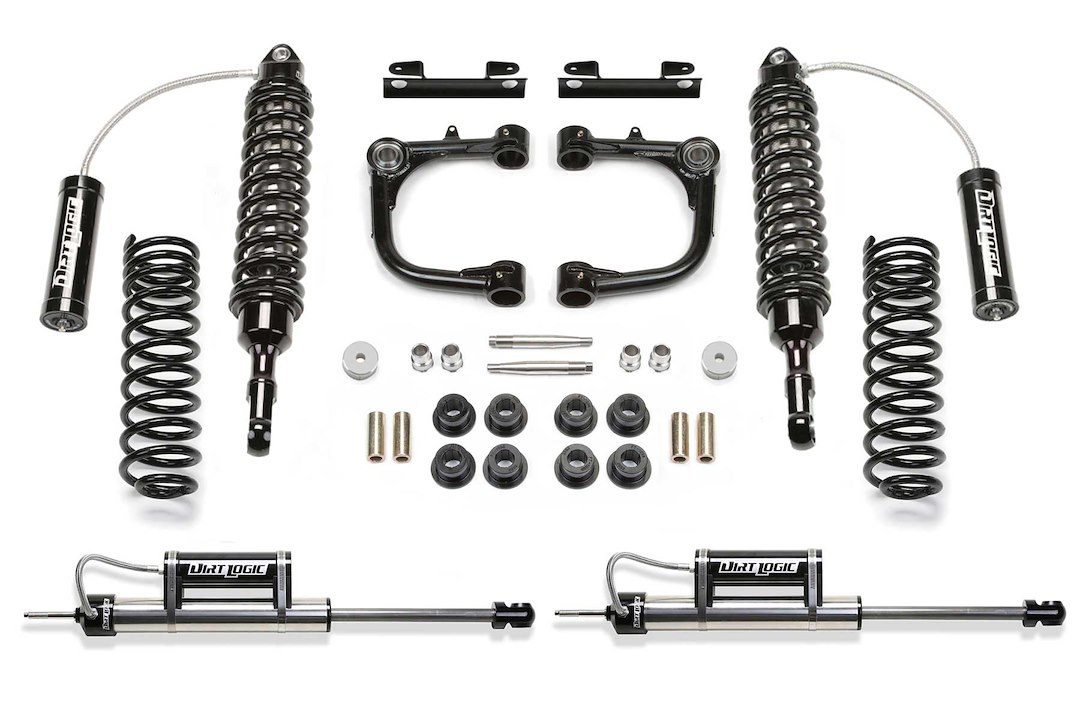

Lift Kit Suspension; 3 Inch Front Lift; 3 Inch Rear Lift; With Front Dirt Logic 2.5 Remote Reservior Coil Over Shock Absorber And Rear Dirt Logic 2.25 Reservior Shock Absorbers; With Uniball Upper Control Arms/ Rear Coil Springs/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 3 Inch
- Rear Lift Amount (IN): 3 Inch
- Maximum Tire Size: 33 x 12.50
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Coil Spring
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.625
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 3.175
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Features & Benefits:
- Arms Eliminate The Upper Ball Joint With Super Strong 1 Inch ID Stainless American Uniball
- Chromoly Tubing Reduces Flex Found In Stock Arms For More Positive Road Feel
- 17-4 Stainless Steel Heat Treated Uniball Pin Fits Into Factory Ball Joint Taper Without Modification To The Spindle
- Dual Rate Rear Coil Springs Provide Increased Flexibity And Smooth Ride
- Great System For The Daily Driver That Requires Increased Offroad Performance
- Limited Lifetime Warranty
About Product:
Obtain increased wheel travel with a mild lift height with this heavy-duty Upper Control Arm system. The tubular Upper Control Arms feature 1-1/4 Inch Outer Diameter, 0.120 Inch wall thick chromoly tube construction with 1 Inch diameter Stainless Steel Uniballs that attach to the factory spindle without drilling. The replacement UCA’s have been designed to work in conjunction with Fabtech’s Stainless Steel Dirt Logic 2.5 Coilover shocks providing 10 Inch of wheel travel for a complete front suspension system upgrade. The Dirt Logic 2.5 Coilovers feature cold wound coil springs for a smooth ride with the ability to tackle aggressive offroad terrain. Fabtech rear Dual Rate coil springs replace the factory springs with a two stage design. In the first stage they provide a supple ride quality at lower speeds with the ability to allow for more wheel travel when traversing large offroad obstacles. The second stage provides increased spring rate for load carrying capacity of gear while providing a superior ride at higher speeds. The rear Dirt Logic 2.25 shocks will also provide 9 Inch of travel due the remote reservoir allowing for the full stroke of the shock. This system is perfect for those that want increased suspension performance with a low lift height. A great choice for daily drivers that overland and hit the trails on weekends.
Additional information
| Weight | 142 lbs |
|---|---|
| Dimensions | 35.75 × 15.5 × 8.75 in |
| Brand | FABTECH |
| Manufacturer Part Number | K7080DL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 83 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
