Fabtech Lift Kit Suspension, 4 Link System, 4 Inch Front Lift, 4 Inch Rear Lift, With Front and Rear Performance Shock Absorbers IN Kit – K2409
$2,846.09
Fabtech Lift Kit Suspension, 4 Link System, 4 Inch Front Lift – K2409
Description

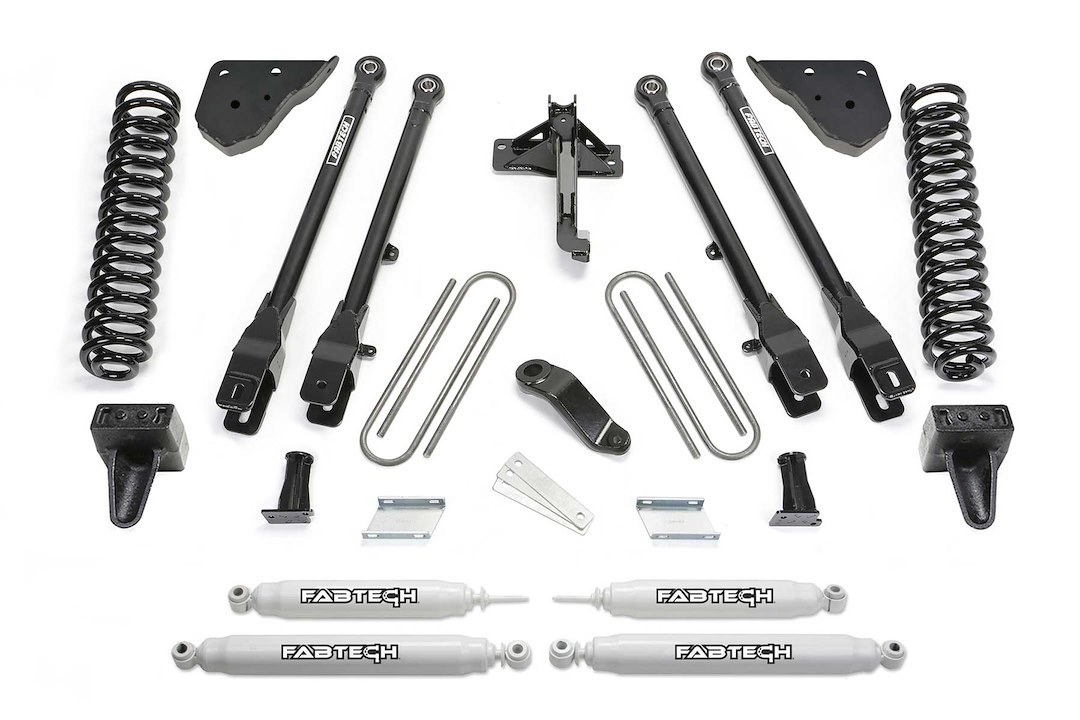

Lift Kit Suspension; 4 Link System; 4 Inch Front Lift; 4 Inch Rear Lift; With Front And Rear Performance Shock Absorbers In Kit; Black Components/ White Shock Absorbers; With Front Coil Springs/ Rear Lift Blocks/ 4 Link Conversion/ Track Bar Bracket/ Pitman Arm/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 4 Inch
- Rear Lift Amount (IN): 4 Inch
- Maximum Tire Size: 37 x 13.50
- Front Lift Type: Coil Spring
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Hydraulic
- Wheel Backspacing (IN): 4.75
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -6.35
- Shocks: With Shocks In Kit
- Color: Black Components/ White Shock Absorbers
Features & Benefits:
- Fabtech’s Legendary 5 Ton Joints® Are Used On The Frame Pivot Side For Superior Strength
- Features 4 Link Arms Attach To 1/4 Inch Thick Steel Frame Brackets That Integrate Into The Factory Radius Arm Brackets For A Solid Mounting Of The New Suspension
- Hot Wound Coils Have Been Designed For A Very Compliant Ride Quality Both On And Offroad
- Super Stout Box Style Bracket Is Designed To Eliminate Deflection When The Track Bar Moves Through Its Full Cycle
- Dropped Pit Man Arm: Forged Steel Construction With High Strength Material That Exceeds The Factory Specifications
- The Bracket’s Semi Boxed Construction Can Handle The Full Impact Compression
- Features 1/4 Inch Thick Steel Drop Brackets Re-Position The Front Sway Bar For The Increased Ride Height
- Steering Stabilizer Brackets: Retains The Stock Vehicle Heavy-Duty Steering Stabilizer With A 1/4 Inch Thick Steel Bracket And Support Brace To Help Reduce Tire Shimmy
- Cast Iron Rear Lift Blocks With An Integrated Bump Stop Replaces The Stock Blocks For Additional Lift Without Changing The Ride Quality Of The Factory Rear Suspension Or Load Carrying Capacity
- Limited Lifetime Warranty
About Product:
Fabtech’s 4 Link lift kit for the vehicle has been designed to provide improved on road performance with the ability to tackle the most rugged offroad terrain. This high end system is a bolt on replacement to the factory Radius Arm suspension and comes with everything needed to convert to a 4 Link front suspension. The lift kit will provide less caster change throughout the travel range which benefits on road driving. Offroad the 4 Link lift kit will provide more articulation than a Radius Arm for increased terrain traversing at all speeds. Fabtech’s 4 Link lift kit has been proven in over 10 years of service in military applications. High quality components with properly designed suspension geometry is the pinnacle of vehicle suspension systems. Each Fabtech component is expertly built in house and has specific design features and benefits.
Additional information
| Weight | 278 lbs |
|---|---|
| Dimensions | 36.5 × 16 × 12 in |
| Brand | FABTECH |
| Manufacturer Part Number | K2409 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 77 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
