Fabtech Lift Kit Suspension, 4 Link System, 6 Inch Front Lift, 4 Inch Rear Lift, With Front and Rear Performance Shock Absorbers – K20132
$3,184.83
Fabtech Lift Kit Suspension, 4 Link System, 6 Inch Front Lift – K20132
Description

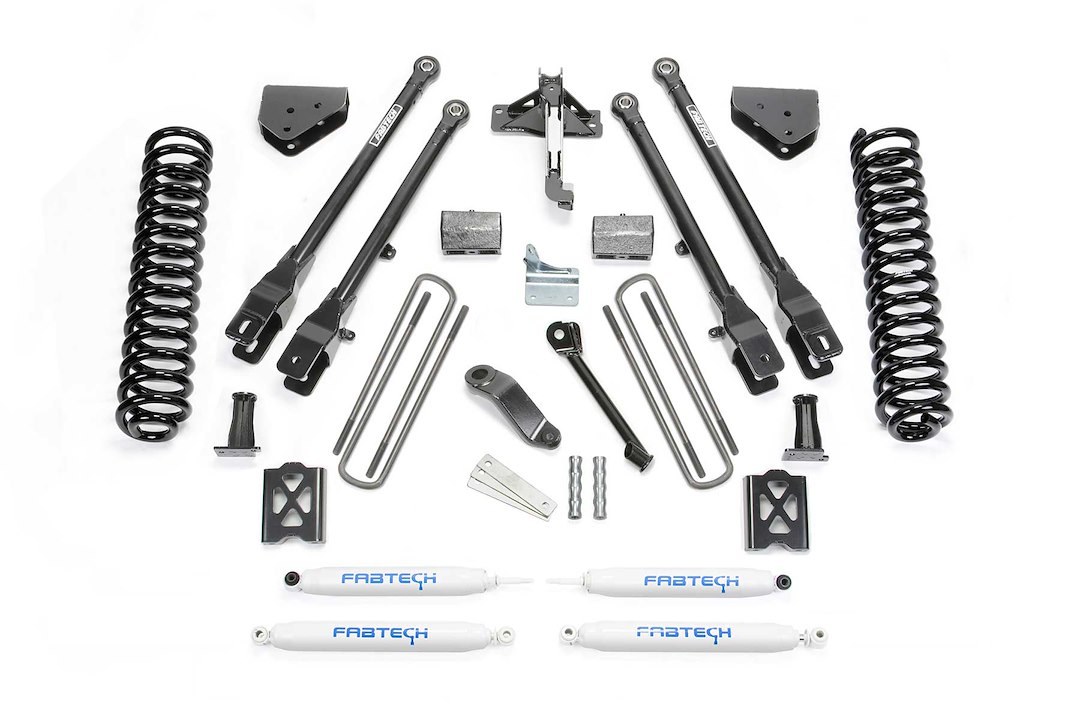

Lift Kit Suspension; 4 Link System; 6 Inch Front Lift; 4 Inch Rear Lift; With Front And Rear Performance Shock Absorbers; Black Components/ White Shock Absorbers; Includes Front Coil Springs/ Sway Bar Drop Brackets/ Track Bar Relocation Bracket/ Pitman Arm/ Upper and Lower Links With Brackets/ Brake Line Brackets/ Rear Lift Blocks/ All Necessary Hardware/ Installation Sheet
Attributes:
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 4 Inch
- Front Lift Type: Coil Spring
- Rear Lift Type: Leaf Spring Block
- Maximum Tire Size: 33.50 x 13
- Shock Type: Hydraulic
- Wheel Backspacing (IN): 4.50
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ White Shock Absorbers
Features & Benefits:
- Provide A Superior Ride Quality Both On And Off-Road
- Ultimate In Suspension Performance
- Made In USA
- Fast And Trouble-Free Installation
- Limited Lifetime Warranty
About Product:
At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2 Inch Outer Diameter heavy wall links feature race style 1 Inch Uniballs for superior strength. Thick 1/4 Inch steel brackets secure the 4 links to the frame without cutting or welding.
Additional information
| Weight | 299.7 lbs |
|---|---|
| Dimensions | 41 × 15.59 × 12 in |
| Brand | FABTECH |
| Manufacturer Part Number | K20132 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 256 vehicles.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| Loading fitment... | ||||
