Fabtech Lift Kit Suspension, 4 Link System, 6 Inch Front Lift, 6 Inch Rear Lift – K2420DL
$6,252.05
Fabtech Lift Kit Suspension, 4 Link System, 6 Inch Front Lift – K2420DL
Description
Lift Kit Suspension; 4 Link System; 6 Inch Front Lift; 6 Inch Rear Lift; With Front Dirt Logic 4.0 Remote Reservoir Coil Over Shock Absorbers And Rear Dirt Logic Non Reservoir Shock Absorbers In Kit; Black Components/ Silver Shock Absorbers; With Rear Lift Blocks/ 4 Link Conversion/ Track Bar Bracket/ Pitman Arm/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 40 x 12.50
- Front Lift Type: Coil Over Shock Absorbers
- Rear Lift Type: Non Reservoir Shock Absorbers
- Minimum Wheel Diameter: 17
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Features & Benefits:

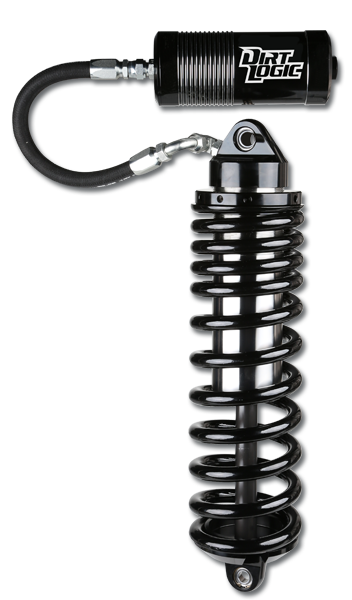

- Fabtech Heavy Duty Link Arms: Fabtech’s Legendary 5 Ton Joints® Are Used On The Frame Pivot Side For Superior Strength
- Fabtech Front Coil Springs: Hot Wound Coils Have Been Designed For A Very Compliant Ride Quality Both On And Offroad
- Trac Bar Relocation Bracket: 1/4 Inch Thick Steel Bracketry Repositions The Factory Track Bar To Center The Axle Under The Vehicle With The Increased Lift Height
- Sway Bar Drop Brackets: 1/4 Inch Thick Steel Drop Brackets Re-Position The Front Sway Bar For The Increased Ride Height
- Pitman Arm: Designed Specifically For The Ford Super Duty To Work In Conjunction With The Factory Drag Link And Fabtech’s Track Bar Bracket For Proper Steering Functionality
- U-Bolts Designed To Attach The Entire Rear Differential To The Vehicle: A Critical Part That Demands The Best Quality For Your Vehicle

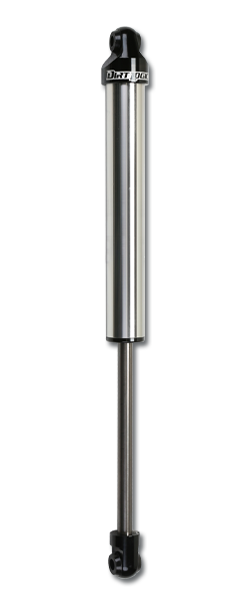

- Dirt Logic 2.25’s Are Designed To Replace Factory Shocks With A Larger, More Robust Configuration
- Limited Lifetime Warranty
About Product:

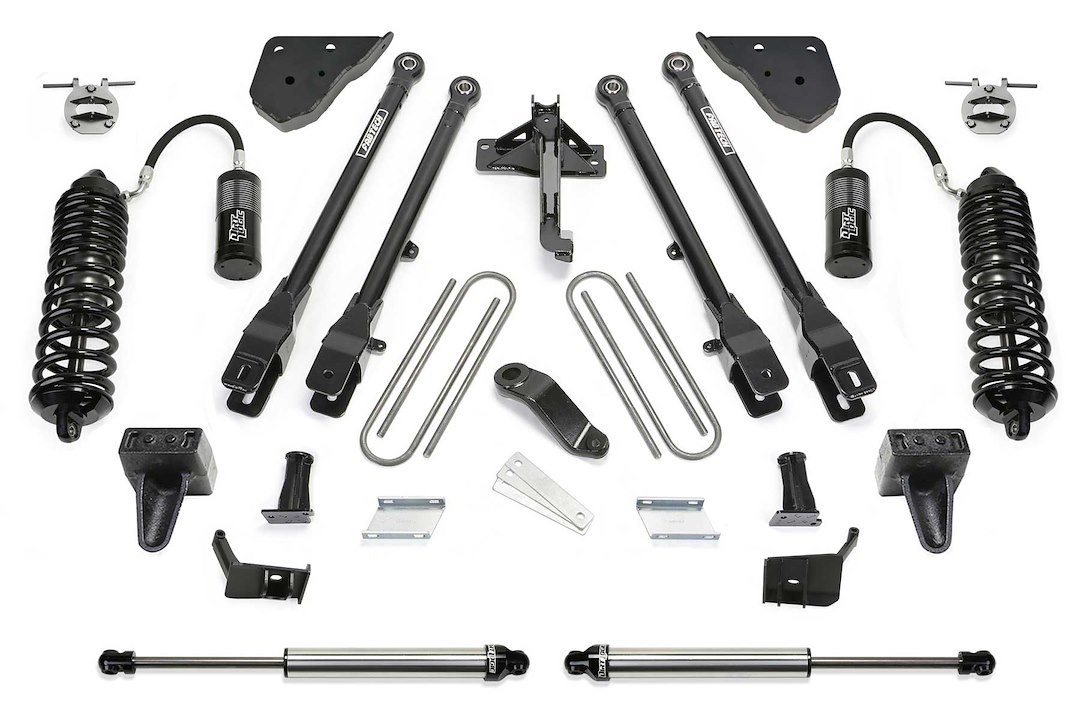

Fabtech’s 4 Link lift kit for the Ford Super Duty has been designed to provide improved on road performance with the ability to tackle the most rugged offroad terrain. This high end system is a bolt on replacement to the factory Radius Arm suspension and comes with everything needed to convert to a 4 Link front suspension. The lift kit will provide less caster change throughout the travel range which benefits on road driving. Offroad the 4 Link lift kit will provide more articulation than a Radius Arm for increased terrain traversing at all speeds. This 4 Link lift kit comes complete with replacement coil springs, billet sway bar links, track bar relocation bracket, pitman arm and more. Rear lift is a block and u-bolt kit. Fabtech’s 4 Link lift kit has been proven in over 10 years of service in military applications. High quality components with properly designed suspension geometry is the pinnacle of Super Duty suspension systems.
Additional information
| Weight | 379.4 lbs |
|---|---|
| Dimensions | 39 × 15.6 × 12 in |
| Brand | FABTECH |
| Manufacturer Part Number | K2420DL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 77 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
