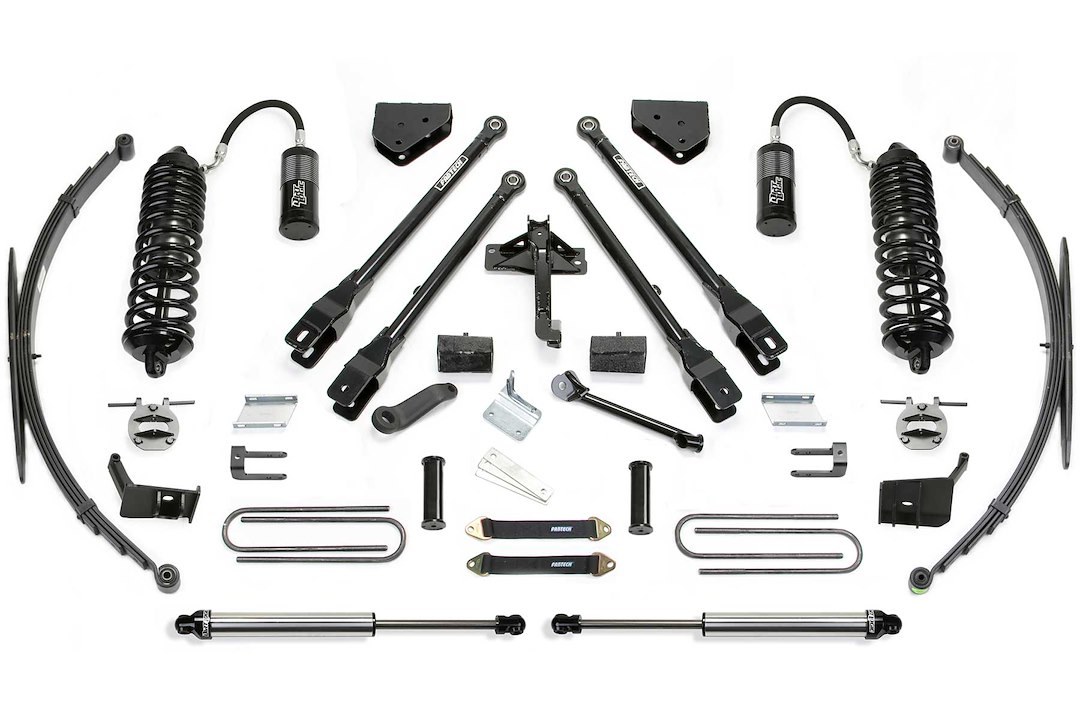

Fabtech Lift Kit Suspension, 4 Link System, 8 Inch Front Lift, 8 Inch Rear Lift – K2278DL
$7,335.40
Fabtech Lift Kit Suspension, 4 Link System, 8 Inch Front Lift – K2278DL
Description
Lift Kit Suspension; 4 Link System; 8 Inch Front Lift; 8 Inch Rear Lift; With Front Dirt Logic 4.0 Reservoir Coil Over Shock Absorbers And Rear Dirt Logic 2.25 Shock Absorbers; Black Components/ Silver Shock Absorbers; With Heavy Duty Link Arms/ Rear Lift Blocks and U Bolts/ Pitman Arm/ Track Bar Bracket/ Rear Leaf Springs/ Stabilizer Bar Drop/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 8 Inch
- Rear Lift Amount (IN): 8 Inch
- Maximum Tire Size: 37 x 13.50
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.75
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): -12.7
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Features & Benefits:
- 5 Ton Joints Have Been Proven In Military Use For Over 10 Years And Are Quiet And Strong
- 4 Link Arms Attach To Stout 1/4 Inch Thick Steel Frame Brackets For A Solid Mounting Of The New Suspension
- Designed To Provide An Improved Highway Ride Due To Reduced Caster Change And Able To Tackle Rough Offroad Conditions Better Than A Radius Arm Suspension
- Massive 4 Inch Diameter Stainless Steel Body With 1.25 Inch NitroSteel ® Piston Rod For Maximum Corrosion Resistance And Durability For The Most Aggressive Driving Conditions
- Heavy-Duty 1/4 Inch Thick Steel Brackets Extend The Factory Bump Stop Cushions Down To Eliminate Over Cycling Of The Suspension
- Bracket’s Semi Boxed Construction Can Handle The Full Impact Compression Of The Massive Super Duty
- Brackets Reposition The Sway Bar End Links Down On The Frame For The New Ride Height Allowing For Proper Sway Bar Functionality Without Binding
- Provides Excellent Damping For Offroad Use
- Limited Lifetime Warranty
About Product:
Fabtech’s 4 Link Conversion system for the Ford Super Duty has been designed to provide improved on road performance with the ability to tackle the most rugged offroad terrain. This high end system is a bolt on replacement to the factory Radius Arm suspension and comes with everything needed to convert to a 4 Link front suspension. The system will provide less caster change throughout the travel range which benefits on road driving. Offroad the 4 Link system will provide more articulation than a Radius Arm for increased terrain traversing at all speeds. Included in this system is the massive Dirt Logic 4.0 Coilover Conversion for outstanding damping capacity offroad with a quality on road ride. The Coilover bolts in place of the factory coil spring without removal of the coil spring bucket. The giant 4 Inch diameter aluminum remote reservoir mounts horizontally above the Coilover to allow for full compression travel with oversized tires. The Dirt Logic 4.0 Coilover is the biggest and baddest on the market for the Ford Super Duty. Fabtech’s 4 Link System has been proven in over 10 years of service in military applications. High quality components with properly designed suspension geometry is the pinnacle of Super Duty suspension systems.
Additional information
| Weight | 628.6 lbs |
|---|---|
| Dimensions | 47 × 47 × 12 in |
| Brand | FABTECH |
| Manufacturer Part Number | K2278DL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 292 vehicles.
