Fabtech Lift Kit Suspension, Basic, 6 Inch Front Lift, 6 Inch Rear Lift, With Rear Performance Shock Absorbers – K1132
$2,234.94
Fabtech Lift Kit Suspension, Basic, 6 Inch Front Lift, 6 Inch Rear Lift – K1132
Description

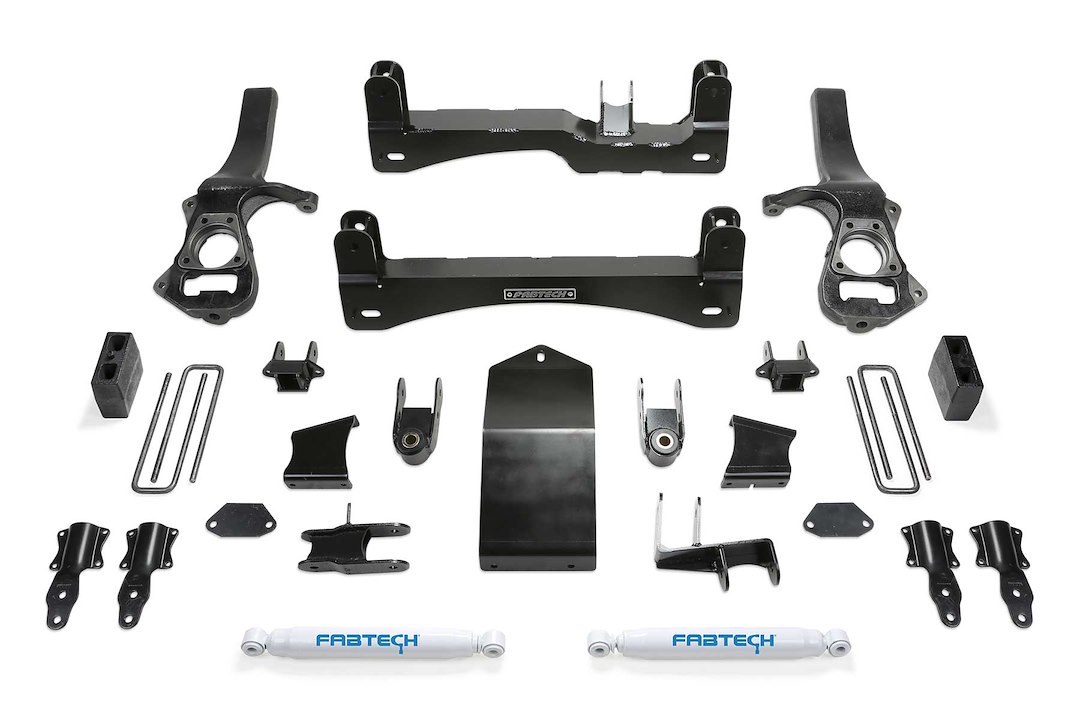

Lift Kit Suspension; Basic; 6 Inch Front Lift; 6 Inch Rear Lift; With Rear Performance Shock Absorbers; Front And Rear Crossmembers/ Front Steering Knuckles/ Skid Plate/ Rear Lift Blocks and U Bolts/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Front Lift Type: Coil Over Spacer
- Rear Lift Type: Blocks And U-Bolts
- Maximum Tire Size: 35 x 12.50
- Shock Type: Hydraulic
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Features & Benefits:
- Welded Box Design Of The Crossmembers Provides Additional Strength To The Front Suspension
- Fabtech’s Extended Length Ductile Iron Steering Knuckles Provide Zero Bump Steer Throughout The Suspension Travel
- Oversized Tie Rods Are Provided To Replace The Stock Units That Are Designed To Handle Oversized Tires
- Factory Coilovers Are Relocated With Heavy-Duty Lower Mounts To Lift The Vehicle While Retaining The Stock Ride Quality
- Heavy-Duty Front Differential Skid Plate Is Constructed Of 1/4 Inch Thick Steel To Protect The Diff From Offroad Obstacles
- Triple Differential Mounts Properly Reposition The Front Diff For The Precise CV And Driveshaft Angle To Reduce Driveline Vibration At High Speed
- Billet Spacers Relocate The Factory Closed Cell Bump Stops To Control The Travel Eliminating Over Cycling Of The Suspension
- 5 Inch Tall Steel Rear Lift Blocks Replace The Factory Blocks For Additional Lift Without Changing The Ride Quality Or Load Carrying Capacity
- Extended Length Twin Tube Shocks Provide A Good Highway Ride With The Ability To Handle Offroad Use
- Limited Lifetime Warranty
About Product:

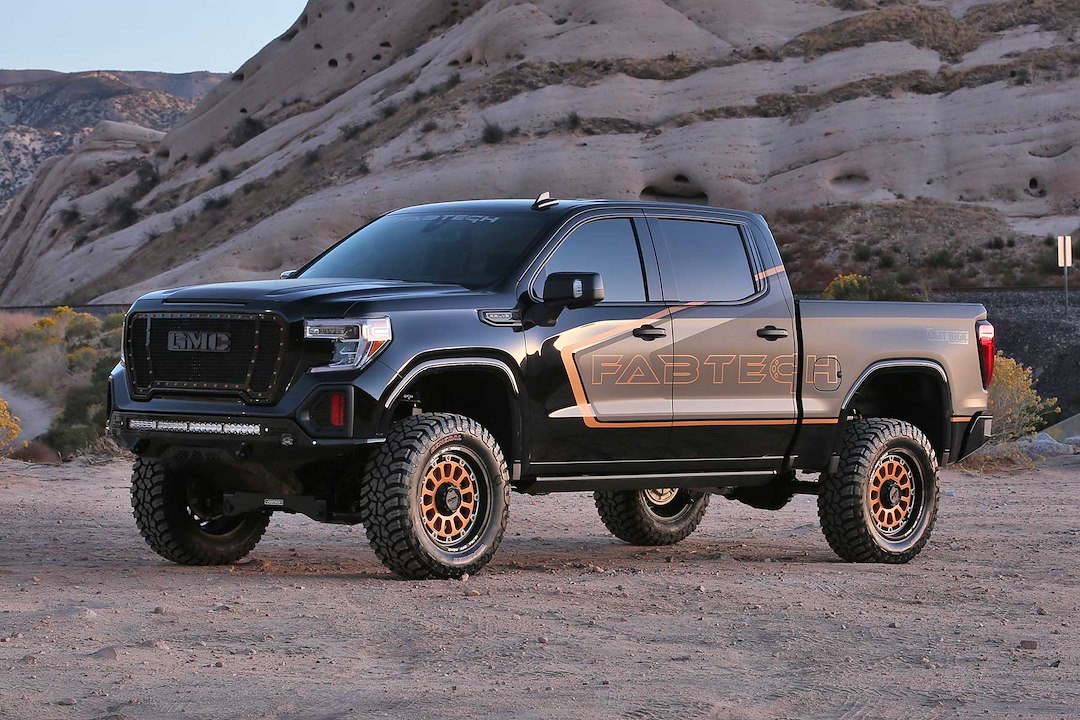

Fabtech’s Basic System features our world renowned IFS suspension design for the Chevy/GMC 1500 providing excellent drive ability both on and offroad. There is zero bump steer throughout the suspension cycle that helps reduce drive fatigue while improving the overall drive ability of the vehicle. The near stock track width keeps the tires under the fenders for a clean appearance. Fabtech’s proprietary steering knuckle geometry provides excellent lock to lock turning radius to maneuver in tight spots. Heavy-Duty 1/4 inch thick steel crossmembers feature OE style alignment cam pins that utilize the factory cams for easy adjustment. Triple front diff mounts reposition the differential for vibration free operation at high speed.
Additional information
| Weight | 253.6 lbs |
|---|---|
| Dimensions | 45.5 × 14.5 × 13.58 in |
| Brand | FABTECH |
| Manufacturer Part Number | K1132 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 651 vehicles.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| Loading fitment... | ||||
