Fabtech Lift Kit Suspension, Basic, 6 Inch Front Lift, 6 Inch Rear Lift, With Rear Performance Shock Absorbers – K6012
$2,468.84
Fabtech Lift Kit Suspension, Basic, 6 Inch Front Lift, 6 Inch Rear Lift – K6012
Description

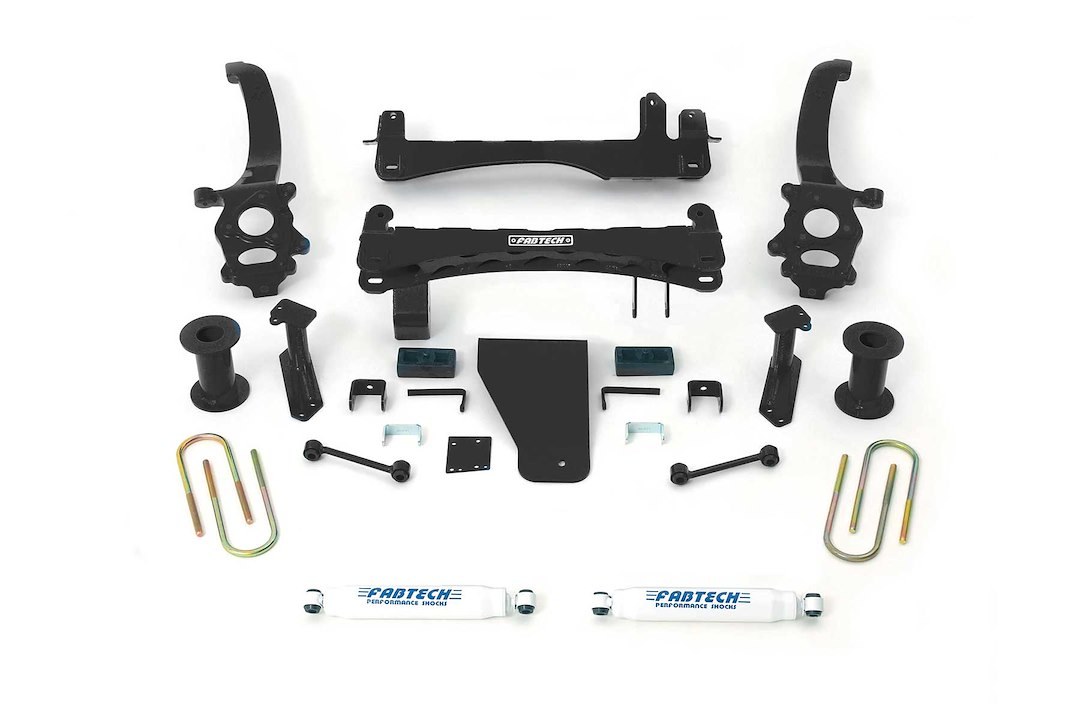

Lift Kit Suspension; Basic; 6 Inch Front Lift; 6 Inch Rear Lift; With Rear Performance Shock Absorbers; Black Components/ White Shock Absorbers; With Front Knuckles/ Front And Rear Crossmembers/ Strut Extensions/ Sway Bar Links/ Rear Lift Blocks And U-Bolts/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Front Lift Type: Coil Over Spacer
- Rear Lift Type: Blocks And U-Bolts
- Maximum Tire Size: 35 x 12.50
- Shock Type: Hydraulic
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ White Shock Absorbers
Features & Benefits:
- 1/4 Inch Thick Steel Lower Control Arm Crossmembers Are Arched For Maximum Ground Clearance
- Fully Welded Box Design Of These Crossmembers Provides Additional Strength To The Front Suspension
- Extended Length Ductile Iron Steering Knuckles Retain Near Stock Track Width Keeping The Tires Under The Fenders
- Heavy-Duty Front Differential Skid Plate Is Constructed Of 1/4 Inch Thick Steel To Protect The Diff From Offroad Obstacles
- 1/4 Inch Thick Steel Construction With Heavy Wall Tubing Is Built To Handle The Full Compression Impact Of The Titan
- Extended Length Sway Bar End Links Feature Urethane Bushings For Positive On Road Feel And Longevity
- Steel Rear Lift Blocks Replaces The Factory Blocks For Additional Lift Without Changing The Ride Quality Or Load Carrying Capacity
- Extended Length Twin Tube Shocks Provide A Good Highway Ride With The Ability To Handle Offroad Use
- Limited Lifetime Warranty
About Product:
This 6 Inch Basic system for the Nissan Titan features Fabtech’s proven IFS technology with extended length ductile iron steering knuckles for proper factory electronic stability control functionality. Heavy-Duty 1/4 Inch thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain. Rear lift is accomplished with a block and u bolt configuration. The Basic System features front coilover spacers that utilize the factory Coilover shocks for a stock like ride characteristic.
Additional information
| Weight | 229.9 lbs |
|---|---|
| Dimensions | 45.5 × 16.25 × 13 in |
| Brand | FABTECH |
| Manufacturer Part Number | K6012 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 48 vehicles.
