Fabtech Lift Kit Suspension, Budget System, 4 Inch Front Lift, 2 Inch Rear Lift, With Front and Rear Performance Shock Absorbers – K2160
$1,187.13
Fabtech Lift Kit Suspension, Budget System, 4 Inch Front Lift – K2160
Description

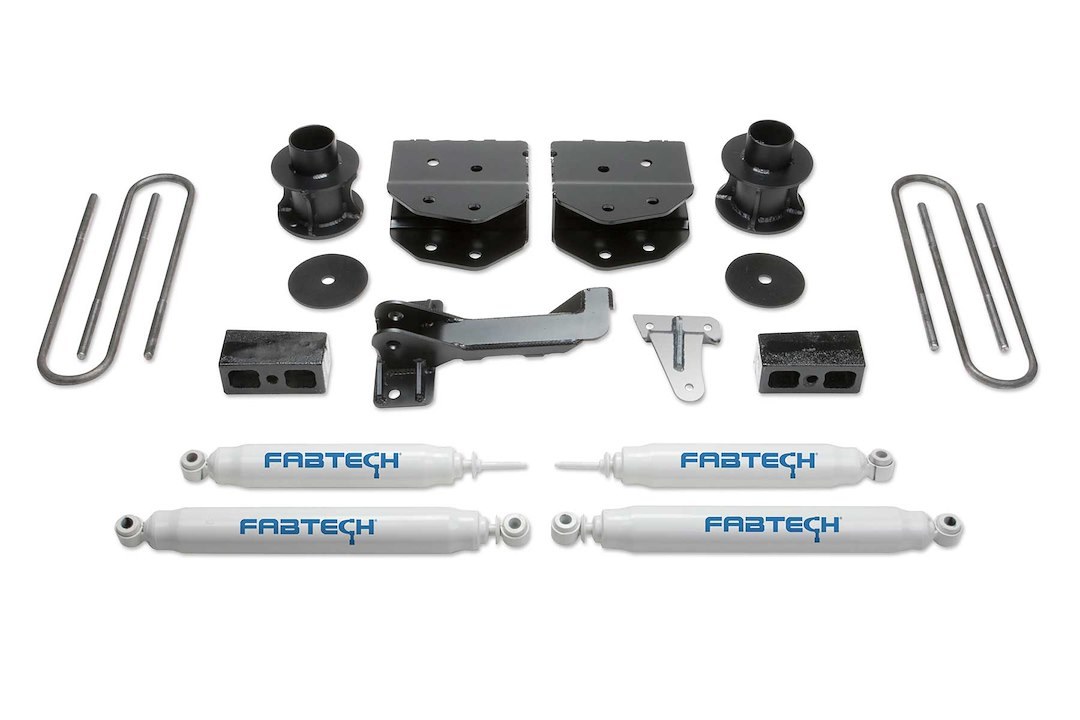

Lift Kit Suspension; Budget System; 4 Inch Front Lift; 2 Inch Rear Lift; With Front And Rear Performance Shock Absorbers; Black Components/ White Shock Absorbers; Includes Front Coil Spacers/ Radius Arm Drop Brackets/ Track Bar Relocation Bracket/ Rear 2in. Blocks/ All Necessary Hardware/ Installation Sheet
Attributes:
- Front Lift Amount (IN): 4 Inch
- Rear Lift Amount (IN): 2 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Coil Spring Spacer
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Hydraulic
- Wheel Backspacing (IN): 4.75
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): -13
- Shocks: With Shocks In Kit
- Color: Black Components/ White Shock Absorbers
Features & Benefits:
- Provide A Superior Ride Quality Both On And Off-Road
- Ultimate In Suspension Performance
- Made In USA
- Fast And Trouble-Free Installation
- Limited Lifetime Warranty
About Product:
To enhance our extensive line of Super Duty suspension systems we have developed an entry level 4 Inch Budget System. The 4 Inch Budget System utilizes the factory front coil springs with a steel upper spacer providing 4 Inch of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket that has been designed to center the axle under the vehicle and still works properly with the factory Pitman Arm. This eliminates the need to replace the Pitman Arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length U-bolts. System allows installation of 35 Inch tall tires with required inner fenderwell trimming for adequate tire clearance for street driving and light off-road use.
Additional information
| Weight | 138.4 lbs |
|---|---|
| Dimensions | 24 × 15.59 × 12 in |
| Brand | FABTECH |
| Manufacturer Part Number | K2160 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 570 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
