Fabtech Lift Kit Suspension, Budget System, 4 Inch Front Lift, 4 Inch Rear Lift, With Front and Rear Dirt Logic Shock Absorbers IN Kit – K2404DL
$2,720.93
Fabtech Lift Kit Suspension, Budget System, 4 Inch Front Lift – K2404DL
Description
Lift Kit Suspension; Budget System; 4 Inch Front Lift; 4 Inch Rear Lift; With Front And Rear Dirt Logic Shock Absorbers In Kit; Black Components/ Silver Shock Absorbers; With Front Coil Spring Spacers/ Rear Lift Blocks/ Radius Arm Brackets/ Track Bar Bracket/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 4 Inch
- Rear Lift Amount (IN): 4 Inch
- Maximum Tire Size: 37 x 13.50
- Front Lift Type: Coil Spring Spacer
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.75
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -6.35
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Features & Benefits:

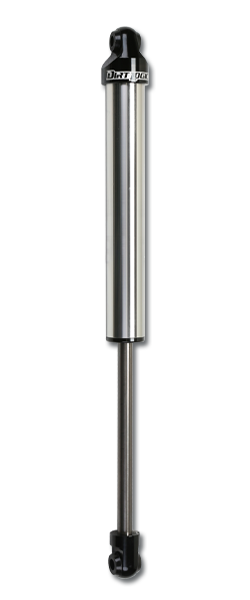

- Features Shocks With A Larger, More Robust Configuration
- Durable Stainless Steel Body Construction
- Features 7/8 Inch NitroSteel® Black Piston Rod
- Provides Superior Ride Both On And Off Road
- Shocks Are Pretuned For Each Fabtech Suspension, Accounting For Larger Tires, Providing The Finest All Around Damping
- Limited Lifetime Warranty
About Product:
This entry level 4 Inch Budget Lift Kit utilizes the factory front coil springs with a steel upper spacer. 1/4 Inch thick steel drop brackets retain the factory radius arms with the correct caster setting for the increase ride height. A track bar relocation bracket has been designed to center the axle under the vehicle and still works properly with the factory pitman arm. This eliminates the need to replace the pitman arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts. Run 35 Inch tall tires with required inner fenderwell trimming for adequate tire clearance for street driving and light offroad use.
Additional information
| Weight | 146.2 lbs |
|---|---|
| Dimensions | 39 × 15.6 × 12 in |
| Brand | FABTECH |
| Manufacturer Part Number | K2404DL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 54 vehicles.
