Fabtech Lift Kit Suspension, Dirt Logic 2.25 ™, 4 Inch Front Lift, 4 Inch Rear Lift, With Front and Rear Dirt Logic Shock Absorbers IN Kit – K1202DL
$3,906.86
Fabtech Lift Kit Suspension, Dirt Logic 2.25 ™, 4 Inch Front Lift – K1202DL
Description

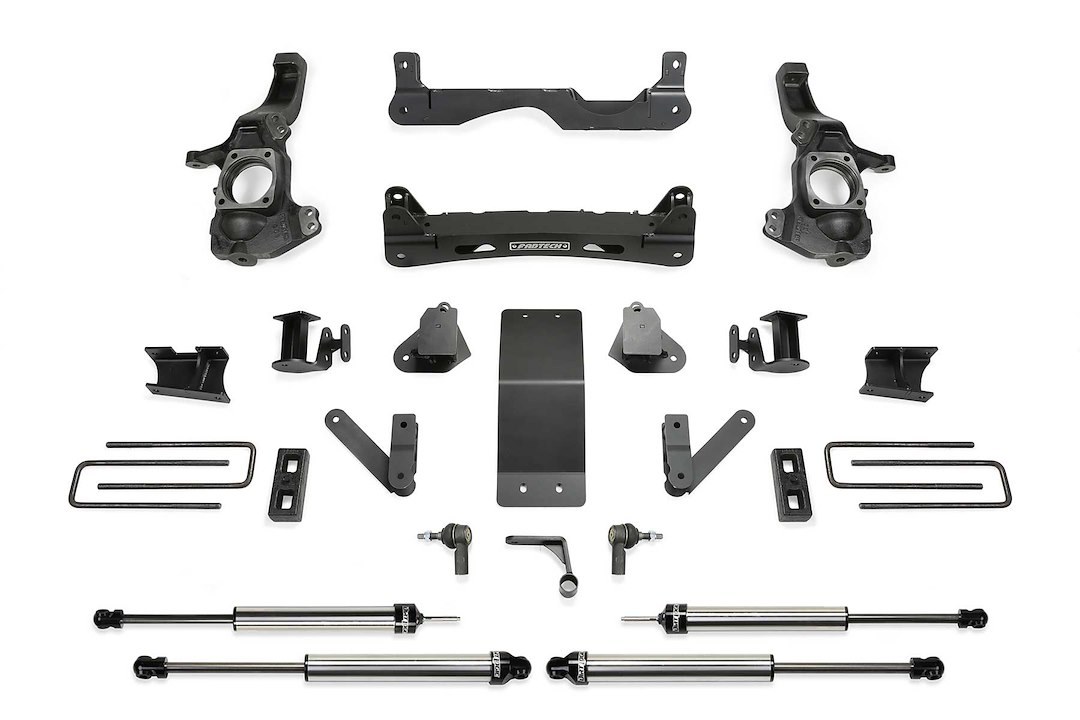

Lift Kit Suspension; Dirt Logic 2.25 ™; 4 Inch Front Lift; 4 Inch Rear Lift; With Front And Rear Dirt Logic Shock Absorbers In Kit; Black Components; With Steering Knuckles/ Crossmembers/ Rear Lift Blocks And U Bolts/ Tie Rods/ Front Differential Skid Plate/ Stabilizer Bar Mounts/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 4 Inch
- Rear Lift Amount (IN): 4 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Steering Knuckles
- Rear Lift Type: Lift Blocks And U-Bolts
- Shock Type: Gas Charged
- Wheel Backspacing (IN): 5.75
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): 19.05
- Shocks: With Shocks In Kit
- Color: Black
Features & Benefits:
- Zero Bump Steer Throughout Travel Range For Optimum Drivability
- Front Differential Driveline Angled For Smooth High Speed 4WD Operation
- Near Factory Track Width Keeping Tires Under Fenders For Clean Appearance
- Fast Installation With Heavy-Duty 1/4 Inch Thick Steel Construction Throughout
- Limited Lifetime Warranty
About Product:
Fabtech’s world renowned IFS suspension design for the GM 2500HD provides excellent drive ability both on and offroad. There is zero bump steer throughout the suspension cycle that helps reduce drive fatigue while improving the overall drivability of the vehicle. The near stock track width keeps the tires under the fenders for a clean appearance. Fabtech’s proprietary steering knuckle geometry provides excellent lock to lock turning radius to maneuver in tight spots. Heavy-Duty 1/4 Inch thick steel crossmembers feature eccentric style alignment cams for easy adjustment. Triple front diff mounts reposition the differential for vibration free operation at high speed. Fabtech offers their top of the line Dirt Logic 2.25 shocks with this 2500HD lift kit. They are constructed with a stainless steel body and a NitroSteel ® piston rod for maximum corrosion resistance and durability. These high quality Dirt Logic shocks will provide a superior ride quality both on and offroad with excellent damping for offroad use.
Additional information
| Weight | 248 lbs |
|---|---|
| Dimensions | 34.5 × 17.6 × 13.58 in |
| Brand | FABTECH |
| Manufacturer Part Number | K1202DL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 66 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
