Fabtech Lift Kit Suspension, Dirt Logic 2.25 ™, 5 Inch Front Lift, 5 Inch Rear Lift, With Front and Rear Dirt Logic Shock Absorbers IN Kit – K4175DL
$3,611.63
Fabtech Lift Kit Suspension, Dirt Logic 2.25 ™, 5 Inch Front Lift – K4175DL
Description

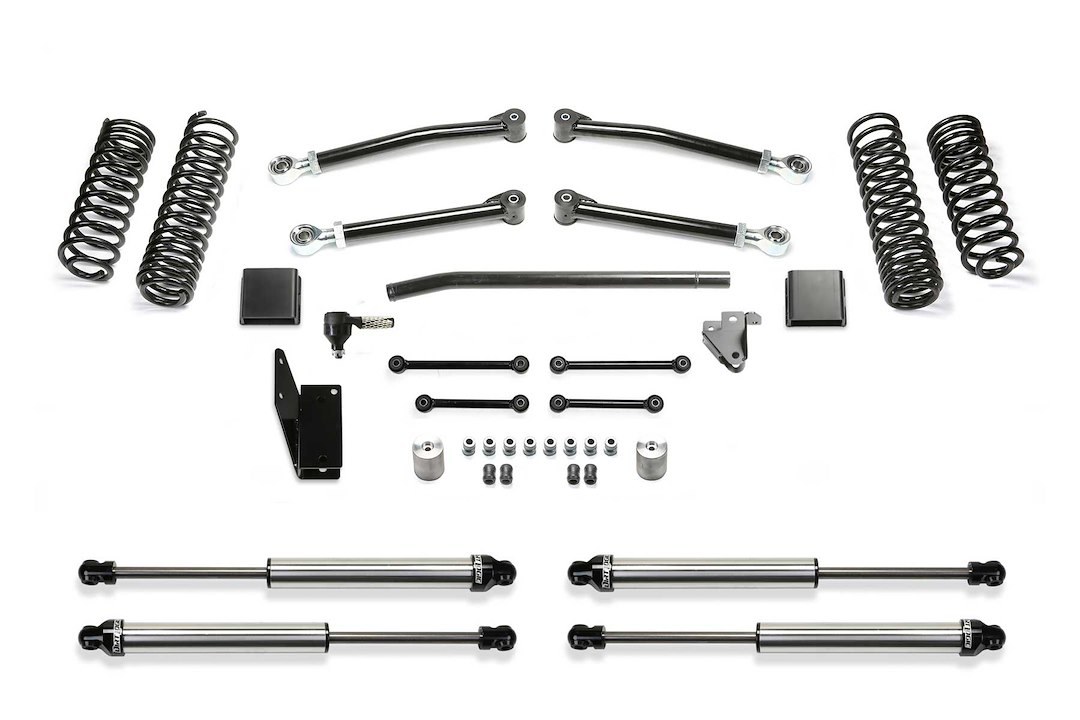

Lift Kit Suspension; Dirt Logic 2.25 ™; 5 Inch Front Lift; 5 Inch Rear Lift; With Front And Rear Dirt Logic Shock Absorbers In Kit; Black Components/ Silver Shocks; With Front And Rear Coil Springs/ Front And Rear Lower Control Arms/ Stabilizer Bar Links/ Bump Stop Spacers/ Drag Link Flip/ Front And Rear Track Bar Brackets/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 5 Inch
- Rear Lift Amount (IN): 5 Inch
- Front Lift Type: Coil Spring
- Rear Lift Type: Coil Spring
- Maximum Tire Size: 40 x 13.50
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.50
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -12.7
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Features & Benefits:
- Corner Specific Dual Rate Coils Springs Provide A Level Stance Side To Side And Offer Factory Load Carrying Capacity With A Smooth Ride
- Proper Factory Bushing Cross Bolt Angles Are Parallel On Fabtech Short Arm Link Arms Eliminating Premature Bushing Wear Resulting In Poor Handling
- Providing Increased Suspension Travel For Offroad Use
- Front Lower Shock Mount Reposition The Front Shocks, So They Function Without Interference Of Suspension Components Or The Axle With The Increased Articulation
- Dirt Logic Shocks Constructed Of A Stainless Steel Body With A NitroSteel ® Piston Rod For Maximum Corrosion Resistance And Durability
- Draglink Flip System Provides Bind Free Operation At Full Articulation And Eliminates Bump Steer Throughout The Travel
- Brackets Reposition The Front Shocks, So They Function Without Interference Of Suspension Components Or The Axle With The Increased Articulation
- Extended Length Front And Rear Sway Bar Links With Urethane Bushings Reposition The Bars To Work Within The Factory Operating Planes
- Front And Rear Bump Stop Extensions Keep The Suspension From Over Cycling With The Increased Ride Height Preventing Damage To Steering And Suspension Parts
- Limited Lifetime Warranty
About Product:
This Trail Lift Kit Provides Enhanced Suspension Performance To Address All Variants Of Off Highway Travel Use Including Rock Crawling, Aggressive Trail Use And Overland Expeditions. This Gladiator Lift Kit Has Been Tuned With Proper Dual Rate Coil Springs And Shock Valving To Provide A Very Compliant Ride That You Will Appreciate. The System Is A Complete Short Arm Suspension That Utilizes The Factory Lower Control Arm Mounts For An Easy Installation. The Fabtech Lower Link Arms Are Constructed Of Thick Wall Steel Tubing That Are Guaranteed Never To Bend. They Come With Large Polyurethane Bushings On One End With Internal Threads On The Other To Accept The Groundbreaking Fabtech 5 Ton Joint ® For Longevity And A Quiet Ride. This Popular Jeep Gladiator Lift Kit Is A Top Choice For Daily Drivers That Enjoy Tackling Tough Trails And Overlanding With The Comfort That They Have A High Quality Complete Suspension Under Their Gladiator.
Additional information
| Weight | 229.1 lbs |
|---|---|
| Dimensions | 35.4 × 21.5 × 13.58 in |
| Brand | FABTECH |
| Manufacturer Part Number | K4175DL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 20 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
