Fabtech Lift Kit Suspension, Dirt Logic 2.25 ™, 5 Inch Front Lift, 5 Inch Rear Lift, With Front and Rear Dirt Logic Shock Absorbers – K3173DL
$2,387.04
Fabtech Lift Kit Suspension, Dirt Logic 2.25 ™, 5 Inch Front Lift – K3173DL
Description

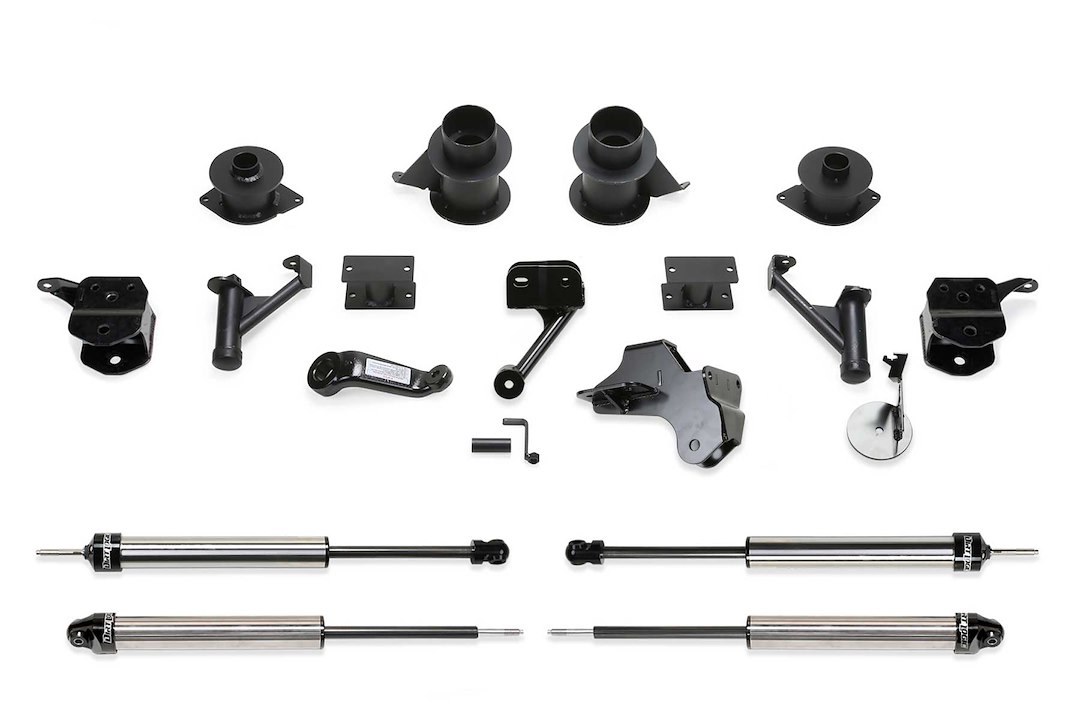

Lift Kit Suspension; Dirt Logic 2.25 ™; 5 Inch Front Lift; 5 Inch Rear Lift; With Front And Rear Dirt Logic Shock Absorbers; Black Components/ Silver Shock Absorbers; With Front And Rear Coil Springs Spacers/ Front And Rear Track Bar Brackets/ Pitman Arm/ Bump Stop Spacers/ Stabilizer Bar Links/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 5 Inch
- Rear Lift Amount (IN): 5 Inch
- Front Lift Type: Coil Spring
- Rear Lift Type: Coil Spring
- Maximum Tire Size: 37 x 13.50
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Features & Benefits:
- Retains Factory Coil Springs For Proper Handling And Load Carrying Capacity
- Heavy-Duty Radius Arm Drop Brackets Provide Proper Caster For The Increased Ride Height
- 1/4 Inch Thick Steel Bracket Construction Throughout For Added Strength
- Provides Excellent Damping For Offroad Use
- Limited Lifetime Warranty
About Product:
This high quality system has been designed to retain the factory load carrying capacity and ride of the vehicle with minimal parts. The factory Ram Radius Arms are relocated with heavy-duty 1/4 Inch thick steel brackets for proper caster with the 5 Inch lift. Super stout front and rear Track Bar drop brackets center the axles under the vehicle with the new ride height. The stock coil springs are retained with angular steel spacers to retain the factory front spring bow. This is an important feature with the stock springs as Chrysler designed the bow to aid in their unique alignment specs and ride. Flat spacers do not provide this. The rear coil springs are also retained with steel spacers keeping the weight carrying capacity of the vehicle intact. A Fabtech innovation with this Ram lift kit is the heavy-duty steel front bump extensions. They retain the stock bump stop cushions for progressive damping and will not allow the suspension to over travel. This is a superior feature compared to replacement long length urethane bump stops as they can push out under harsh conditions and allow over traveling.
Additional information
| Weight | 128.2 lbs |
|---|---|
| Dimensions | 32 × 15.6 × 11 in |
| Brand | FABTECH |
| Manufacturer Part Number | K3173DL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 236 vehicles.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| Loading fitment... | ||||
