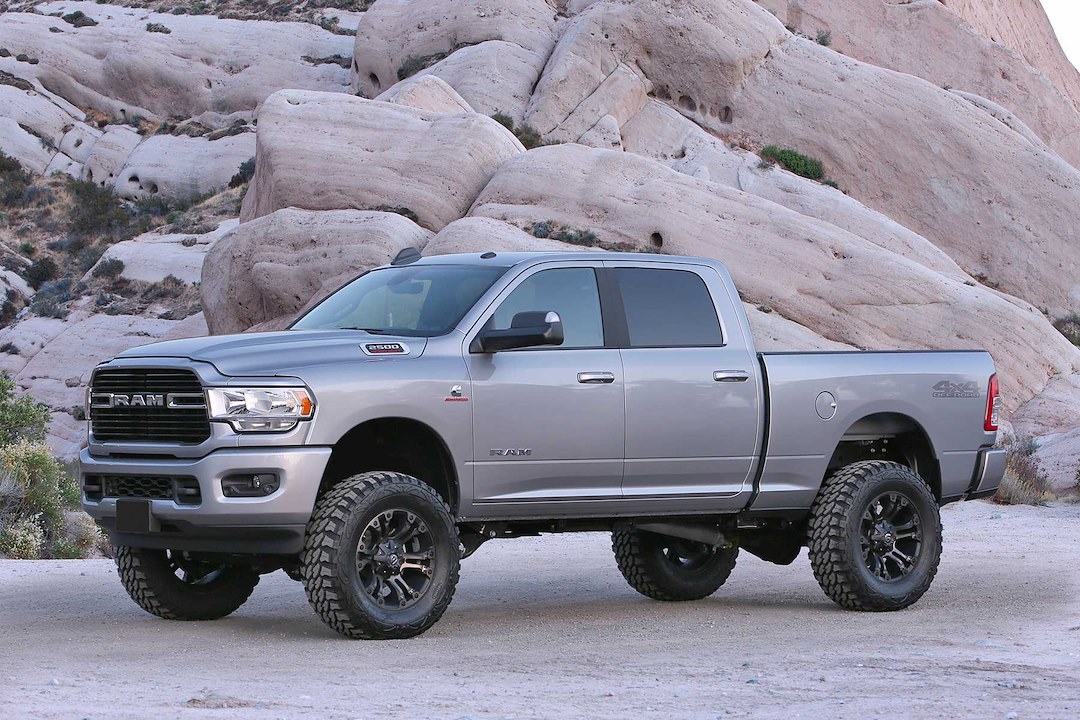

Fabtech Lift Kit Suspension, Dirt Logic 2.25 ™, 5 Inch Front Lift, 5 Inch Rear Lift, With Front and Rear Dirt Logic Shock Absorbers – K3180DL
$4,144.25
Fabtech Lift Kit Suspension, Dirt Logic 2.25 ™, 5 Inch Front Lift – K3180DL
Description

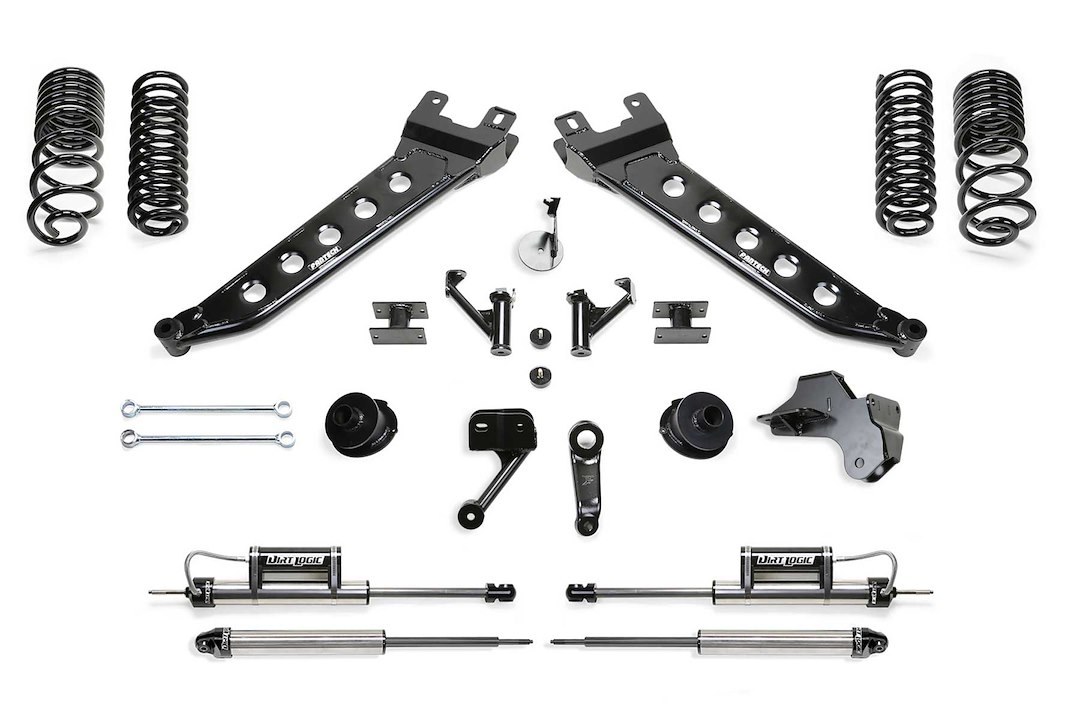

Lift Kit Suspension; Dirt Logic 2.25 ™; 5 Inch Front Lift; 5 Inch Rear Lift; With Front And Rear Dirt Logic Shock Absorbers; Black Components/ Silver Shock Absorbers; With Front And Rear Coil Springs/ Radius Arms/ Front And Rear Track Bar Brackets/ Pitman Arm/ Bump Stop Spacers/ Stabilizer Bar Links/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 5 Inch
- Rear Lift Amount (IN): 5 Inch
- Maximum Tire Size: 37 x 13.50
- Front Lift Type: Coil Spring
- Rear Lift Type: Coil Spring
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Features & Benefits:
- Fabtech’s Trademark Radius Arms With Recognizable Dimple Die Side Plates Providing Additional Strength And Increased Caster
- Front Straight Coil Springs With Fabtech’s Patented Angled Mounts For Smooth Ride
- Heavy-Duty Track Bar Drop Brackets Center The Axles Under Vehicle For Proper Tracking
- Dual Rate Rear Coil Springs For Factory Load Capacity And A Smooth Ride
- Provides Excellent Damping For Offroad Use
- Limited Lifetime Warranty
About Product:
Improving on the Ram suspension design, Fabtech offers their trademark Radius Arms in a complete lift kit system. These exclusive tubular Radius Arms have recognizable dimple die side plates for superior strength and a signature of quality. The rugged Arms provide increased caster for use with oversized tires and lifted suspension heights. The factory front Ram coil spring has a noticeable bow to it with a very high spring rate for the weight rating of the vehicle. This creates a harsh ride with a nervous feel from the suspension. To correct this, Fabtech uses a straight vertical coil design. In order to utilize a straight coil, the lower spring seat mount must be modified via a Fabtech patented angular spring mount that attaches to the stock seat. This eliminates the bow to the spring and allows for a lower rate with a straight coil for a supple ride without sacrificing load carrying capacity. A Fabtech exclusive. For the rear, this lift kit has the perfect balance between ride quality and retaining the factory carrying capacity. By utilizing a dual rate spring design, it provides a good highway ride in the first stage of compression and then the second stage handles heavy loads. Heavy-Duty 1/4 Inch thick steel front and rear Track Bar drop brackets center the axles under the vehicle with the new ride height. A Fabtech innovation with this Ram lift kit is the heavy-duty steel front bump extensions. They retain the stock bump stop cushions for progressive damping and will not allow the suspension to over travel. This is a superior feature compared to replacement long length urethane bump stops as they can push out under harsh conditions.
Additional information
| Weight | 295 lbs |
|---|---|
| Dimensions | 45.5 × 17.6 × 13 in |
| Brand | FABTECH |
| Manufacturer Part Number | K3180DL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 71 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
